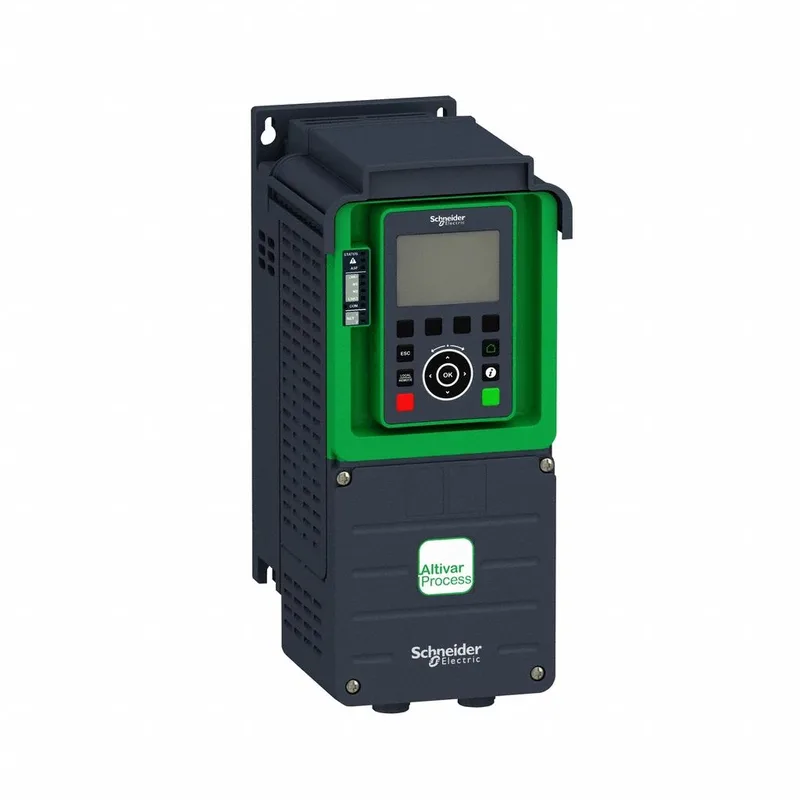

Schneider Electric ATV930U07M3

Schneider ATV930U07M3 Altivar Process ATV900, 0.75 kW, 200-2

MPNATV930U07M3
Active

Schneider Altivar Process ATV900, ATV930U07M3, variable speed drive, 0.75 kW normal duty / 0.37 kW heavy duty, 200...240 V three-phase, 4.6 A output, with braking chopper, IP21.

$360.68Ref. price · indicative, final on quote
Schneider Electric ATV930U07M3 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ATV930U07M3 key specifications
ParameterValue
Range of productAltivar Process ATV900
Type of polarizationNo impedance
Product or component typeVariable speed drive
Supply voltage200...240 V
Relative symmetric mains voltage tolerance10 %
Nominal output current4.6 A
Continuous output current4.6 A 4 kHz normal duty 3.3 A 4 kHz heavy duty
Motor power0.75 kW normal duty 0.37 kW heavy duty
Relative symmetric network frequency tolerance5 %
Phases3 phase
IP ratingUL type 1
IP degree of protectionIP21

All specifications

ATV930U07M3 additional specifications
ParameterValue
Communication port protocolEtherNet/IP Modbus serial Modbus TCP
Mounting modeWall mount
Electrical connectionControl screw terminal 0.5...1.5 mm² AWG 20...AWG 16 Line side screw terminal 2.5...6 mm² AWG 14...AWG 10 Motor screw terminal 2.5...6 mm² AWG 14...AWG 10 DC bus screw terminal 2.5...6 mm² AWG 14...AWG 10
EMC filterIntegrated With EMC plate option
Pollution degree2
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m
Vibration resistance1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsUL 508C IEC 61800-3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
SupplyExternal supply for digital inputs 24 V DC 19...30 V), Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, Internal supply for digital inputs and STO 24 V DC 21...27 V), 1 MOhm 500 V DC for 1 minute to earth
MarkingCE
VariantStandard version With braking chopper
CategoryUS1CP4E22276
Data format8 bits, configurable odd, even or no parity
Noise level54.5 dB
Maximum THDI<48 % full load IEC 61000-3-12
Exchange modeHalf duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
Option moduleSlot A communication module Profibus DP V1 Slot A communication module PROFINET Slot A communication module DeviceNet Slot A communication module EtherCAT Slot A communication module CANopen daisy chain RJ45 Slot A communication module CANopen SUB-D 9 Slot A communication module CANopen screw terminals Slot A/slot B/slot C digital and analog I/O extension module Slot A/slot B/slot C output relay extension module Slot B 5/12 V digital encoder interface module Slot B analog encoder interface module Slot B resolver encoder interface module communication module Ethernet Powerlink
Assembly styleEnclosed
Regulation loopAdjustable PID regulator
Transmission rate10, 100 Mbits 4.8 kbps 9600 bit/s 19200 bit/s
Device applicationIndustrial Application
Operating positionVertical +/- 10 degree
Number of addresses1...247
Product destinationSynchronous motors Asynchronous motors
Overvoltage categoryIII
Volume of cooling air10038.7 Gal/hr(US) (38 m3/h)
Environmental characteristicChemical pollution resistance class 3C3 IEC 60721-3-3 Dust pollution resistance class 3S3 IEC 60721-3-3
Product specific applicationProcess for industrial
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

Part overview

The ATV930U07M3 is a standard-duty drive from the Altivar Process ATV900 range, rated for 0.75 kW synchronous or asynchronous motors on a 200–240 V three-phase supply. Normal-duty output is 4.6 A at 4 kHz; heavy-duty drops to 3.3 A at 4 kHz for more demanding loads. A braking chopper is built in, so you can handle overhauling loads without an external module. Three-phase input, IP21 / UL type 1 enclosure. Integrated EMC filter with optional plate for stricter environments. CE marked, conforms to UL 508C, IEC 61800-3, and IEC 61000-3-12 for THDI <48% at full load.

Wall-mount enclosed; vertical ±10° position. Cooling: 38 m³/h (10038.7 US gal/hr). Power terminals: screw, 2.5–6 mm². Control: 0.5–1.5 mm², external 24 V DC for digital inputs. Three option slots (A/B/C) accept communication modules for Profibus DP V1, PROFINET, DeviceNet, EtherCAT, CANopen, or I/O extension. Slot B also accepts encoder interfaces (digital, analog, resolver). Default communication via Ethernet/IP, Modbus TCP, and Modbus serial at 10/100 Mbit or 4.8–19200 bps.

Compliance & communication

Standards: UL 508C, IEC 61800-3 (EMC), IEC 61800-5-1 (safety), IEC 61508 and IEC 13849-1 (functional safety). Vibration: 1.5 mm pk-pk at 2–13 Hz, 1 g at 13–200 Hz; shock: 15 g for 11 ms. Operating altitude up to 4800 m with 1% derating per 100 m above 1000 m.

Frequently asked questions

What phase and supply voltage does the ATV930U07M3 require?

Three-phase supply, 200…240 V. The control supply for digital inputs is external 24 V DC (19–30 V); the drive also generates internal 24 V for STO and digital inputs, and 10.5 V for a reference potentiometer.

What compliance documentation does the ATV930U07M3 carry?

CE marked, UL 508C listed. Complies with IEC 61800-3, IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, and IEC 13849-1.
