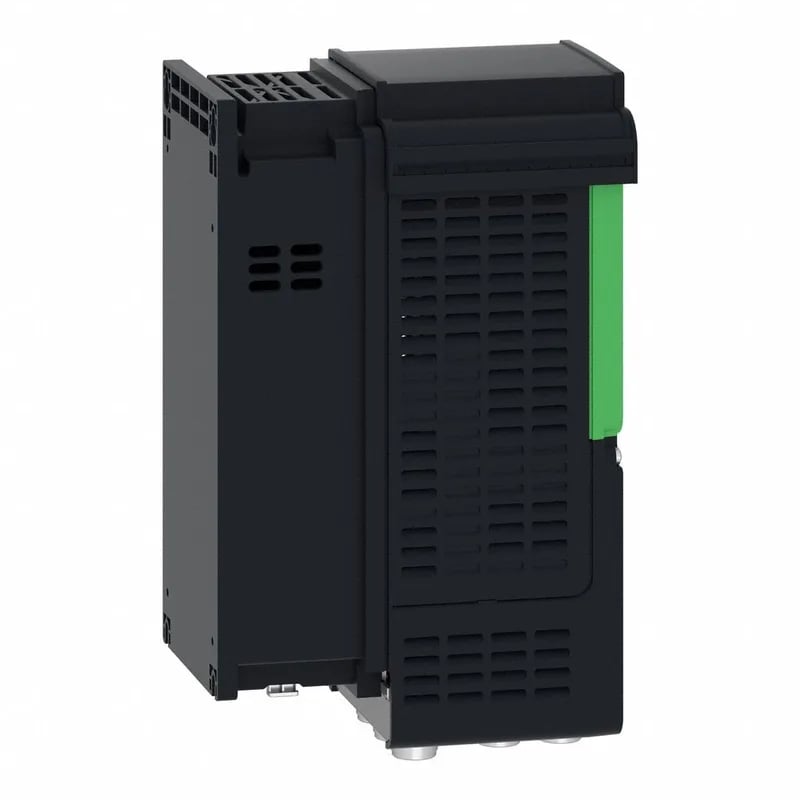

Schneider Electric ATV930U07N4

Schneider ATV930U07N4 Altivar Process Drive, 0.75kW, 380-480

MPNATV930U07N4
Active

Schneider Electric Altivar Process ATV930U07N4, variable speed drive, 0.75 kW normal duty, 380...480 V 3-phase, 2.2 A output, IP21, with braking chopper.

$506.73Ref. price · indicative, final on quote
Schneider Electric ATV930U07N4 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ATV930U07N4 key specifications
ParameterValue
Range of productAltivar Process ATV900
Type of polarizationNo impedance
Product or component typeVariable speed drive
Supply voltage380...480 V
Relative symmetric mains voltage tolerance10 %
Nominal output current2.2 A
Continuous output current2.2 A 4 kHz normal duty 1.5 A 4 kHz heavy duty
Motor power0.75 kW normal duty 0.37 kW heavy duty
Relative symmetric network frequency tolerance5 %
Phases3 phase
IP ratingUL type 1
IP degree of protectionIP21

All specifications

ATV930U07N4 additional specifications
ParameterValue
Communication port protocolModbus TCP EtherNet/IP Modbus serial
Mounting modeWall mount
Electrical connectionControl screw terminal 0.5...1.5 mm² AWG 20...AWG 16 Line side screw terminal 2.5...6 mm² AWG 14...AWG 10 Motor screw terminal 2.5...6 mm² AWG 14...AWG 10 DC bus screw terminal 2.5...6 mm² AWG 14...AWG 10
EMC filterIntegrated With EMC plate option
Pollution degree2
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m
Vibration resistance1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsUL 508C IEC 61800-3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
SupplyExternal supply for digital inputs 24 V DC 19...30 V), Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, Internal supply for digital inputs and STO 24 V DC 21...27 V), 1 MOhm 500 V DC for 1 minute to earth
MarkingCE
VariantStandard version With braking chopper
CategoryUS1CP4E22276
Data format8 bits, configurable odd, even or no parity
Noise level54.5 dB
Maximum THDI<48 % full load IEC 61000-3-12
Exchange modeHalf duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
Option moduleSlot A communication module Profibus DP V1 Slot A communication module PROFINET Slot A communication module DeviceNet Slot A communication module EtherCAT Slot A communication module CANopen daisy chain RJ45 Slot A communication module CANopen SUB-D 9 Slot A communication module CANopen screw terminals Slot A/slot B/slot C digital and analog I/O extension module Slot A/slot B/slot C output relay extension module Slot B 5/12 V digital encoder interface module Slot B analog encoder interface module Slot B resolver encoder interface module communication module Ethernet Powerlink
Assembly styleEnclosed
Regulation loopAdjustable PID regulator
Transmission rate10, 100 Mbits 4.8 kbps 9600 bit/s 19200 bit/s
Device applicationIndustrial Application
Operating positionVertical +/- 10 degree
Number of addresses1...247
Product destinationAsynchronous motors Synchronous motors
Overvoltage categoryIII
Volume of cooling air10038.7 Gal/hr(US) (38 m3/h)
Environmental characteristicChemical pollution resistance class 3C3 IEC 60721-3-3 Dust pollution resistance class 3S3 IEC 60721-3-3
Product specific applicationProcess for industrial
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

Drive fit and lifecycle

The Schneider Electric ATV930U07N4 is an Altivar Process ATV900 variable speed drive rated for 0.75 kW normal duty / 0.37 kW heavy duty asynchronous or synchronous motors on a 380...480 V three-phase supply. Continuous output current is 2.2 A at 4 kHz for normal duty, 1.5 A at 4 kHz for heavy duty. The variant includes an integrated braking chopper, so deceleration energy can be dumped into an external resistor rather than relying on DC injection alone.

Compliance and power interface

CE marked, with UL 508C and IEC 61800-3, IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, and IEC 13849-1. Power input: 380-480 V three-phase. Control supply is dual: an external 24 V DC (19-30 V) for digital inputs, plus an internal 24 V DC (21-27 V) for STO and digital inputs. An internal 10.5 V DC reference supply is available for a 1-10 kOhm potentiometer. Insulation test at 500 V DC, 1 MOhm for 1 minute to earth.

Mechanical and mounting

Wall mount, vertical +/-10 degrees. IP21, UL type 1 enclosure — cabinet-mount only, not for washdown. Control screw terminals accept 0.5-1.5 mm² (AWG 20-16); power terminals (line, motor, DC bus) accept 2.5-6 mm² (AWG 14-10). Cooling air volume 38 m³/h, noise level 54.5 dB. Vibration resistance 1.5 mm peak at 2-13 Hz, 1 gn at 13-200 Hz per IEC 60068-2-6. Shock 15 gn, 11 ms per IEC 60068-2-27. Operating altitude 1000-4800 m with 1% derating per 100 m above 1000 m.

Communications and expansion

Built-in Modbus TCP, EtherNet/IP, and Modbus serial. Slot A accepts optional Profibus DP V1, PROFINET, DeviceNet, EtherCAT, or CANopen modules. Slot B and slot C allow I/O and relay expansion. Data rates up to 100 Mbits, also 9600/19200 bit/s for serial. Support for half/full duplex, auto-negotiation on Ethernet lines.

Frequently asked questions

What are the supply voltage and phase requirements?

The drive requires a 380-480 V three-phase supply. Control logic can be powered externally or internally as noted in the supply spec: external 24 V DC (19-30 V) for digital inputs, internal 24 V DC (21-27 V) for STO, plus a 10.5 V DC reference for a potentiometer.

What compliance documentation does this drive have?

The drive is CE marked and complies with UL 508C, IEC 61800-3, IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, and IEC 13849-1.

What is the output current and motor power rating?

Normal duty: 2.2 A at 4 kHz for 0.75 kW motors. Heavy duty: 1.5 A at 4 kHz for 0.37 kW motors.
