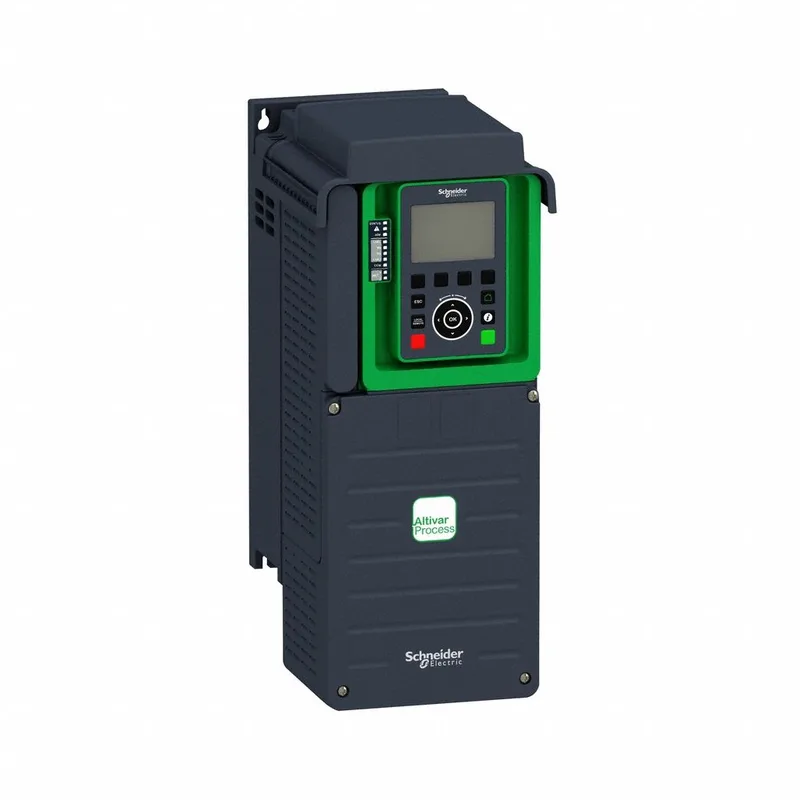

Schneider Electric ATV930U07N4ZU

Schneider ATV930U07N4ZU Altivar Process Drive, 0.75 kW ND

MPNATV930U07N4ZU
Active

Schneider Altivar Process ATV900, ATV930U07N4ZU, variable speed drive, 0.75 kW normal duty, 380…480 V AC 3-phase, 2.2 A continuous, integrated braking chopper.

$1,485.85Ref. price · indicative, final on quote
Schneider Electric ATV930U07N4ZU datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ATV930U07N4ZU key specifications
ParameterValue
Range of productAltivar Process ATV900
Type of polarizationNo impedance
Product or component typeVariable speed drive
Supply voltage380...480 V
Relative symmetric mains voltage tolerance10 %
Nominal output current2.2 A
Continuous output current2.2 A 4 kHz normal duty 1.5 A 4 kHz heavy duty
Motor power0.75 kW normal duty 0.37 kW heavy duty
Relative symmetric network frequency tolerance5 %
Phases3 phase
IP ratingUL type 12
IP degree of protectionIP21

All specifications

ATV930U07N4ZU additional specifications
ParameterValue
Communication port protocolModbus TCP EtherNet/IP Modbus serial
Mounting modeCabinet mount
Electrical connectionControl screw terminal 0.5...1.5 mm² AWG 20...AWG 16 Line side screw terminal 2.5...6 mm² AWG 14...AWG 10 Motor screw terminal 2.5...6 mm² AWG 14...AWG 10 DC bus screw terminal 2.5...6 mm² AWG 14...AWG 10
EMC filterIntegrated With EMC plate option
Pollution degree2
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m
Vibration resistance1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsUL 508C IEC 61800-3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
SupplyExternal supply for digital inputs 24 V DC 19...30 V), Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, Internal supply for digital inputs and STO 24 V DC 21...27 V), 1 MOhm 500 V DC for 1 minute to earth
MarkingCE
VariantStandard version With braking chopper
CategoryUS1CP4E22276
Data format8 bits, configurable odd, even or no parity
Noise level54.5 dB
Maximum THDI<48 % full load IEC 61000-3-12
Exchange modeHalf duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
Option moduleSlot A communication module Profibus DP V1 Slot A communication module PROFINET Slot A communication module DeviceNet Slot A communication module EtherCAT Slot A communication module CANopen daisy chain RJ45 Slot A communication module CANopen SUB-D 9 Slot A communication module CANopen screw terminals Slot A/slot B/slot C digital and analog I/O extension module Slot A/slot B/slot C output relay extension module Slot B 5/12 V digital encoder interface module Slot B analog encoder interface module Slot B resolver encoder interface module communication module Ethernet Powerlink
Assembly styleWith heat sink
Regulation loopAdjustable PID regulator
Transmission rate10, 100 Mbits 4.8 kbps 9600 bit/s 19200 bit/s
Device applicationIndustrial Application
Operating positionVertical +/- 10 degree
Number of addresses1...247
Product destinationAsynchronous motors Synchronous motors
Overvoltage categoryIII
Volume of cooling air10038.7 Gal/hr(US) (38 m3/h)
Environmental characteristicChemical pollution resistance class 3C3 IEC 60721-3-3 Dust pollution resistance class 3S3 IEC 60721-3-3
Product specific applicationProcess for industrial
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

What this drive does on your line

The Schneider ATV930U07N4ZU is an Altivar Process ATV900 variable speed drive rated for 0.75 kW normal duty (0.37 kW heavy duty) on 380–480 V three-phase supply, delivering 2.2 A continuous at 4 kHz. Comes with an integrated braking chopper, so it handles dynamic braking without an external brake unit for most inertia-matched loads. Designed for asynchronous and synchronous motors, adjustable PID loop, and supports Modbus TCP, EtherNet/IP, and Modbus serial out of the box.

Mounting and connection notes

Cabinet-mount with IP21 / UL type 12 enclosure, vertical orientation ±10° required. Heat sink dissipates 38 m³/h of cooling air at 54.5 dB. Power terminals accept 2.5–6 mm² (AWG 14–10) for line, motor, and DC bus; control terminals 0.5–1.5 mm² (AWG 20–16). Slot A/B/C accept option modules – Profibus DP V1, PROFINET, DeviceNet, EtherCAT, CANopen, encoder interfaces, and I/O extension relays. Plan slot assignments before panel wiring.

Compliance and lifecycle posture

Sourced to order against your BOM line. Certified CE, UL 508C, IEC 61800-3/5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, and ISO 13849-1.

Frequently asked questions

What phase and voltage does this drive require?

Three-phase 380–480 V AC is required; single-phase operation is not supported.

What output current does the ATV930U07N4ZU deliver?

2.2 A continuous at 4 kHz for normal duty; 1.5 A at 4 kHz for heavy duty.

What compliance documentation is available for this drive?

CE marked, UL 508C listed, and certified to IEC 61800-3, IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, and ISO 13849-1.

Does the drive include an internal braking chopper?

Yes, the standard variant comes with an integrated braking chopper for dynamic braking without an external brake unit.
