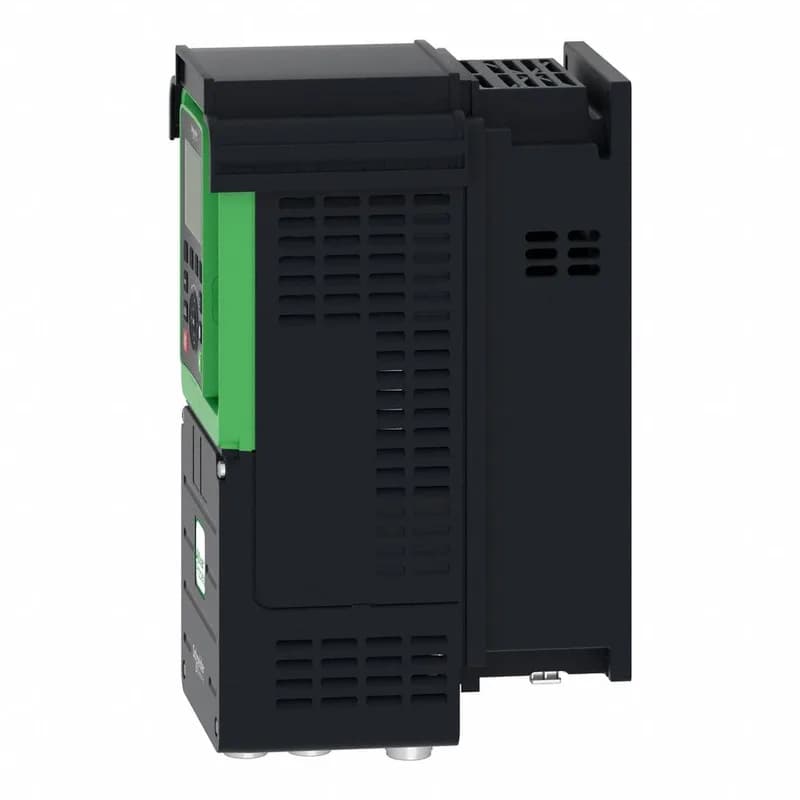

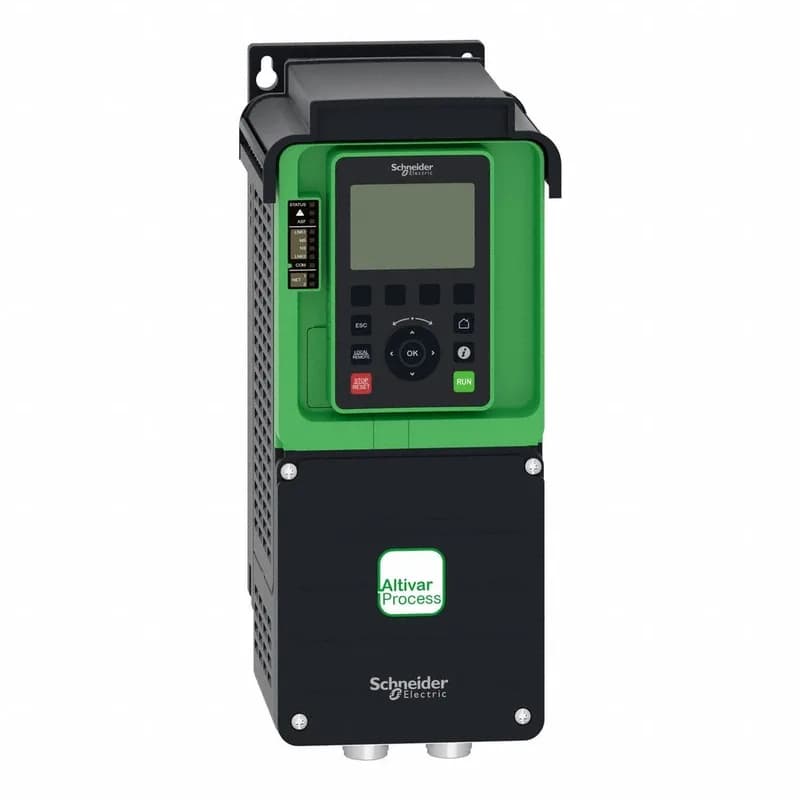

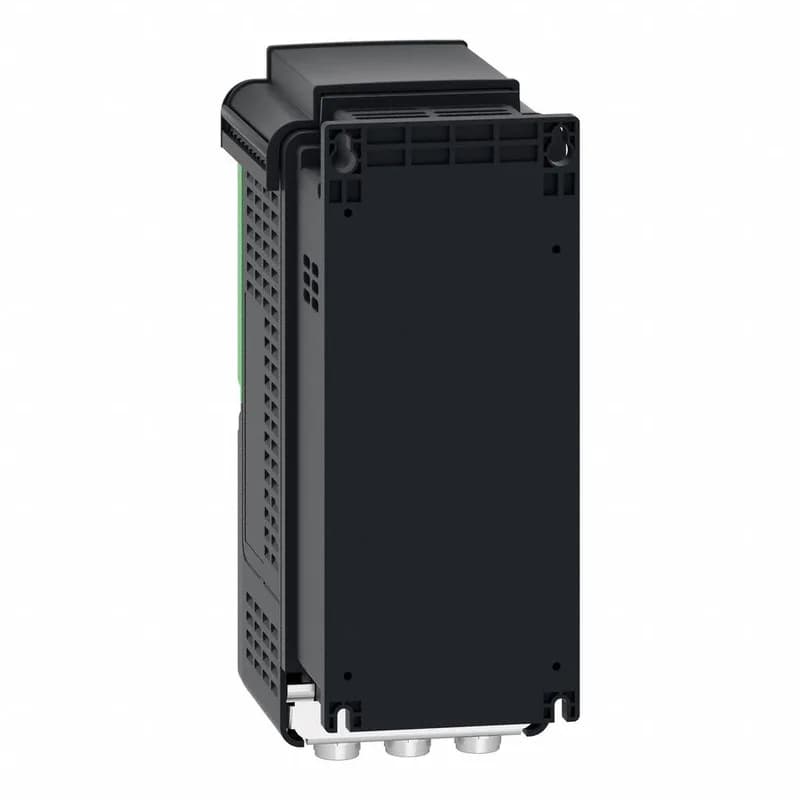

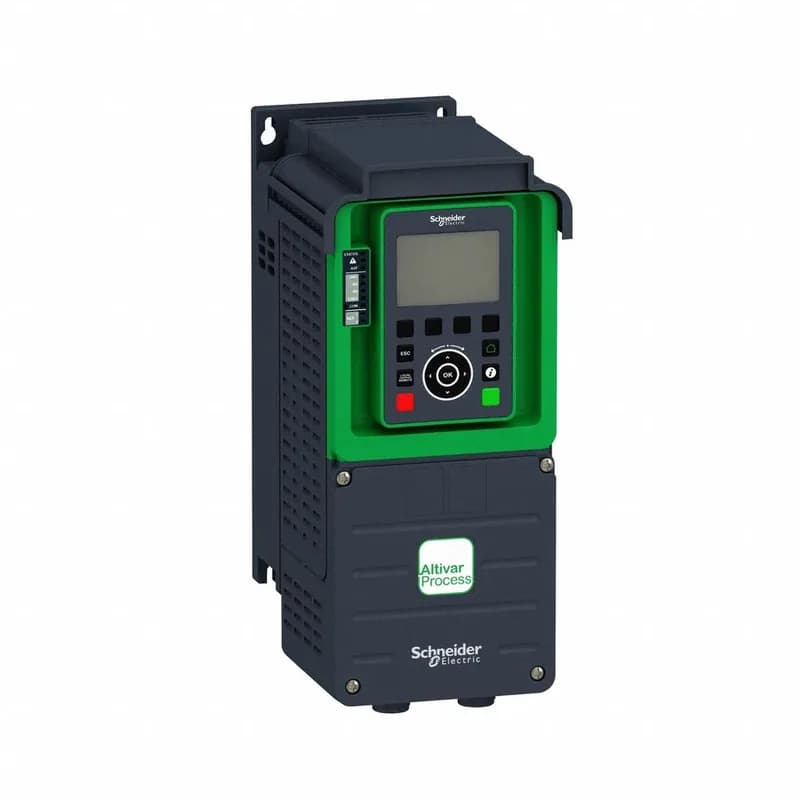

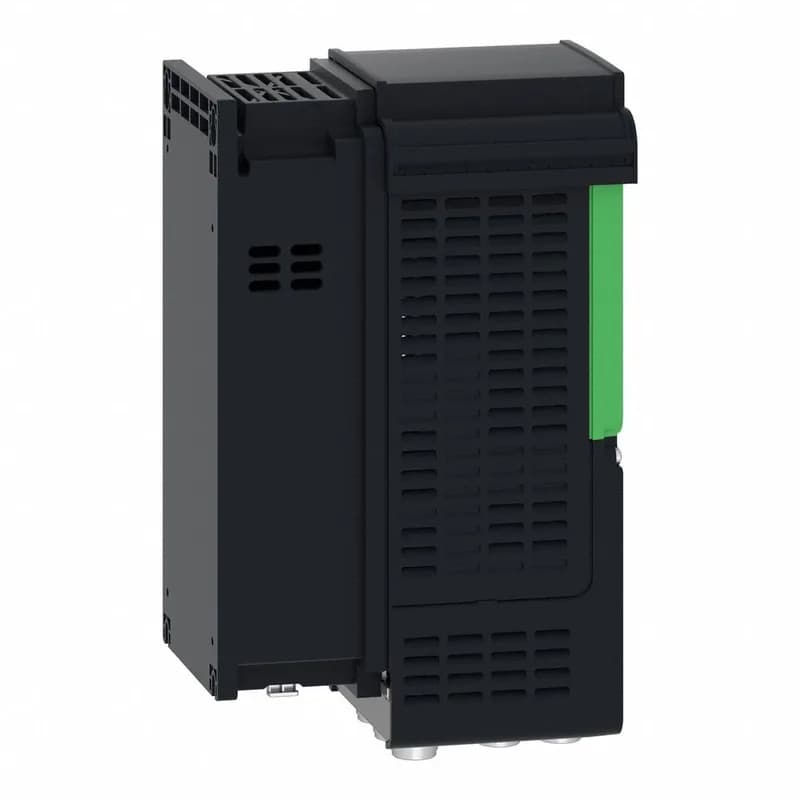

The ATV930U15M3 is a current-production Altivar Process ATV900 drive sized for 1.5 kW normal-duty induction motors on 200-240 V three-phase mains, with built-in braking chopper and integrated EMC filter. Its 8 A continuous output (normal duty at 4 kHz) supports most general-purpose 1.5 kW motor frames in the region; knock it down to 4.6 A for heavy-duty cycles that need a higher overload margin. The IP21 / UL Type 1 enclosure keeps it indoors, no extra cabinet cooling fan required except when stacked tight—the datasheet volume of cooling air is 38 m³/h, so allow clearance around the heat sink. The drive accepts 200-240 V supply, and supports asynchronous and synchronous motors. Compliance includes UL 508C and multiple IEC standards. Sourcing note: this is a genuine, active-part number. We source the same Schneider part across multiple regional channels—same part, different passport, as I say. Any unit we quote comes with full traceability to the factory. No geofencing on the hardware; the warranty is what the manufacturer ships with the serial number. If you need a specific compliance declaration pack (RoHS, REACH), we include that with the shipment. Quote to order—no exotic lead time, just a standard VFD delivery window.
ATV930U15M3 Altivar Process ATV900 Drive, 200-240V 3-Phase 1
MPNATV930U15M3
Active
Schneider Electric Altivar Process ATV900, ATV930U15M3 variable speed drive, 200-240 V three-phase, 1.5 kW normal duty / 0.75 kW heavy duty, with braking chopper, IP21.
$412.75Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Altivar Process ATV900 |
| Type of polarization | No impedance |
| Product or component type | Variable speed drive |
| Supply voltage | 200...240 V |
| Relative symmetric mains voltage tolerance | 10 % |
| Nominal output current | 8.0 A |
| Continuous output current | 8 A 4 kHz normal duty 4.6 A 4 kHz heavy duty |
| Motor power | 1.5 kW normal duty 0.75 kW heavy duty |
| Relative symmetric network frequency tolerance | 5 % |
| Phases | 3 phase |
| IP rating | UL type 1 |
| IP degree of protection | IP21 |
All specifications
| Parameter | Value |
|---|---|
| Communication port protocol | EtherNet/IP Modbus TCP Modbus serial |
| Mounting mode | Wall mount |
| Electrical connection | Control screw terminal 0.5...1.5 mm² AWG 20...AWG 16 Line side screw terminal 2.5...6 mm² AWG 14...AWG 10 Motor screw terminal 2.5...6 mm² AWG 14...AWG 10 DC bus screw terminal 2.5...6 mm² AWG 14...AWG 10 |
| EMC filter | Integrated With EMC plate option |
| Pollution degree | 2 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Relative humidity | 5...95 % without condensation IEC 60068-2-3 |
| Operating altitude | 1000...4800 m with current derating 1 % per 100 m |
| Vibration resistance | 1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6 |
| Permitted relative humidity (during operation) | Class 3K5 according to EN 60721-3 |
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
| Standards | UL 508C IEC 61800-3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1 |
| Supply | External supply for digital inputs 24 V DC 19...30 V), Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, Internal supply for digital inputs and STO 24 V DC 21...27 V), 1 MOhm 500 V DC for 1 minute to earth |
| Marking | CE |
| Variant | Standard version With braking chopper |
| Category | US1CP4E22276 |
| Data format | 8 bits, configurable odd, even or no parity |
| Noise level | 54.5 dB |
| Maximum THDI | <48 % full load IEC 61000-3-12 |
| Exchange mode | Half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP |
| Option module | Slot A communication module Profibus DP V1 Slot A communication module PROFINET Slot A communication module DeviceNet Slot A communication module EtherCAT Slot A communication module CANopen daisy chain RJ45 Slot A communication module CANopen SUB-D 9 Slot A communication module CANopen screw terminals Slot A/slot B/slot C digital and analog I/O extension module Slot A/slot B/slot C output relay extension module Slot B 5/12 V digital encoder interface module Slot B analog encoder interface module Slot B resolver encoder interface module communication module Ethernet Powerlink |
| Assembly style | Enclosed |
| Regulation loop | Adjustable PID regulator |
| Transmission rate | 10, 100 Mbits 4.8 kbps 9600 bit/s 19200 bit/s |
| Device application | Industrial Application |
| Operating position | Vertical +/- 10 degree |
| Number of addresses | 1...247 |
| Product destination | Synchronous motors Asynchronous motors |
| Overvoltage category | III |
| Volume of cooling air | 10038.7 Gal/hr(US) (38 m3/h) |
| Environmental characteristic | Chemical pollution resistance class 3C3 IEC 60721-3-3 Dust pollution resistance class 3S3 IEC 60721-3-3 |
| Product specific application | Process for industrial |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 |
| Ambient air transport temperature | -40...158 °F (-40...70 °C) |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | 5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor) |
| Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3 |
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
Product details
Frequently asked questions
What are the key electrical ratings I need to match to my motor?
The drive accepts 200-240 V three-phase input. Continuous output current is 8 A at 4 kHz for normal duty (1.5 kW), or 4.6 A at 4 kHz for heavy duty (0.75 kW). The braking chopper is built in, so you only need an external resistor for dynamic braking.
What compliance documentation does Schneider provide for the ATV930U15M3?
The drive carries UL 508C listing and meets IEC 61800-3, 61800-5-1, 61508, 13849-1, 61000-3-12, with CE marking. A declaration of conformity is included with each unit; additional certificates are available on request.
