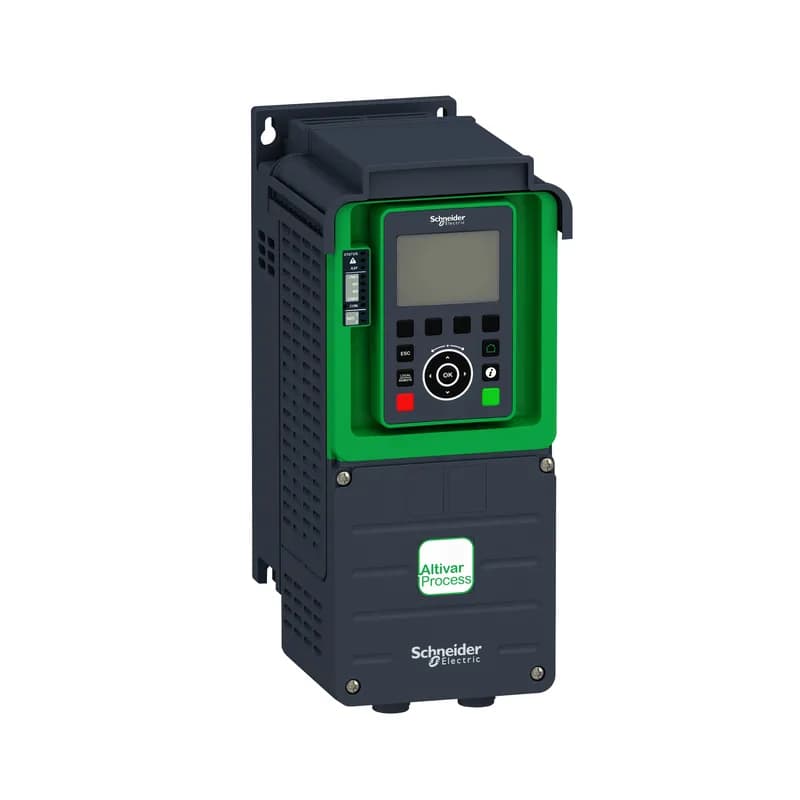

Schneider Electric ATV930U15N4

Schneider ATV930U15N4 Altivar Process Drive, 1.5 kW, 4 A

MPNATV930U15N4
Active

Schneider Altivar Process ATV900, variable speed drive, ATV930U15N4, 3-phase 380-480 V, 1.5 kW normal duty, 4 A nominal output.

$521.00Ref. price · indicative, final on quote
Schneider Electric ATV930U15N4 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

ATV930U15N4 key specifications
ParameterValue
Range of productAltivar Process ATV900
Type of polarizationNo impedance
Product or component typeVariable speed drive
Supply voltage380...480 V
Relative symmetric mains voltage tolerance10 %
Nominal output current4.0 A
Continuous output current4 A 4 kHz normal duty 2.2 A 4 kHz heavy duty
Motor power1.5 kW normal duty 0.75 kW heavy duty
Relative symmetric network frequency tolerance5 %
Phases3 phase
IP ratingUL type 1
IP degree of protectionIP21

All specifications

ATV930U15N4 additional specifications
ParameterValue
Communication port protocolModbus TCP EtherNet/IP Modbus serial
Mounting modeWall mount
Electrical connectionControl screw terminal 0.5...1.5 mm² AWG 20...AWG 16 Line side screw terminal 2.5...6 mm² AWG 14...AWG 10 Motor screw terminal 2.5...6 mm² AWG 14...AWG 10 DC bus screw terminal 2.5...6 mm² AWG 14...AWG 10
EMC filterIntegrated With EMC plate option
Pollution degree2
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m
Vibration resistance1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsUL 508C IEC 61800-3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
SupplyExternal supply for digital inputs 24 V DC 19...30 V), Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, Internal supply for digital inputs and STO 24 V DC 21...27 V), 1 MOhm 500 V DC for 1 minute to earth
MarkingCE
VariantWith braking chopper Standard version
CategoryUS1CP4E22276
Data format8 bits, configurable odd, even or no parity
Noise level54.5 dB
Maximum THDI<48 % full load IEC 61000-3-12
Exchange modeHalf duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
Option moduleSlot A communication module Profibus DP V1 Slot A communication module PROFINET Slot A communication module DeviceNet Slot A communication module EtherCAT Slot A communication module CANopen daisy chain RJ45 Slot A communication module CANopen SUB-D 9 Slot A communication module CANopen screw terminals Slot A/slot B/slot C digital and analog I/O extension module Slot A/slot B/slot C output relay extension module Slot B 5/12 V digital encoder interface module Slot B analog encoder interface module Slot B resolver encoder interface module communication module Ethernet Powerlink
Assembly styleEnclosed
Regulation loopAdjustable PID regulator
Transmission rate10, 100 Mbits 4.8 kbps 9600 bit/s 19200 bit/s
Device applicationIndustrial Application
Operating positionVertical +/- 10 degree
Number of addresses1...247
Product destinationAsynchronous motors Synchronous motors
Overvoltage categoryIII
Volume of cooling air10038.7 Gal/hr(US) (38 m3/h)
Environmental characteristicChemical pollution resistance class 3C3 IEC 60721-3-3 Dust pollution resistance class 3S3 IEC 60721-3-3
Product specific applicationProcess for industrial
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

The Schneider Electric ATV930U15N4 is an Altivar Process ATV900 variable speed drive rated for 380...480 V three-phase input, delivering 4.0 A nominal output and 1.5 kW normal duty / 0.75 kW heavy duty motor power. It includes an integrated braking chopper and EMC filter, and is wall-mount enclosed with IP21 / UL type 1 protection. Communication is via Modbus TCP, EtherNet/IP, and Modbus serial as standard; option slots accept Profibus DP, PROFINET, DeviceNet, EtherCAT, CANopen, and I/O extension modules.

Installation & Integration

Mount vertically within ±10 degrees. Wire the line and motor sides via screw terminals accepting 2.5–6 mm² (AWG 14–10); control wiring uses 0.5–1.5 mm² (AWG 20–16). The drive requires an external 24 V DC supply for digital inputs and STO (21–27 V range) and provides an internal 10.5 V DC reference for a 1–10 kΩ potentiometer. Airflow of 38 m³/h (10038.7 Gal/hr US) needs unobstructed clearance around the enclosure. Operate below 1000 m altitude; derate output current 1% per 100 m up to 4800 m. Vibration tolerance is 1.5 mm peak-peak at 2–13 Hz and 1 gn at 13–200 Hz.

Frequently asked questions

What phase and voltage does ATV930U15N4 require?

It requires 3-phase input at 380...480 V AC.

What are the supply requirements for digital inputs and STO?

An external 24 V DC supply is needed for the digital inputs and STO, with a permissible range of 21...27 V. The drive also provides an internal 10.5 V DC supply for a reference potentiometer (1 to 10 kOhm).

MPN
ATV930U15N4
