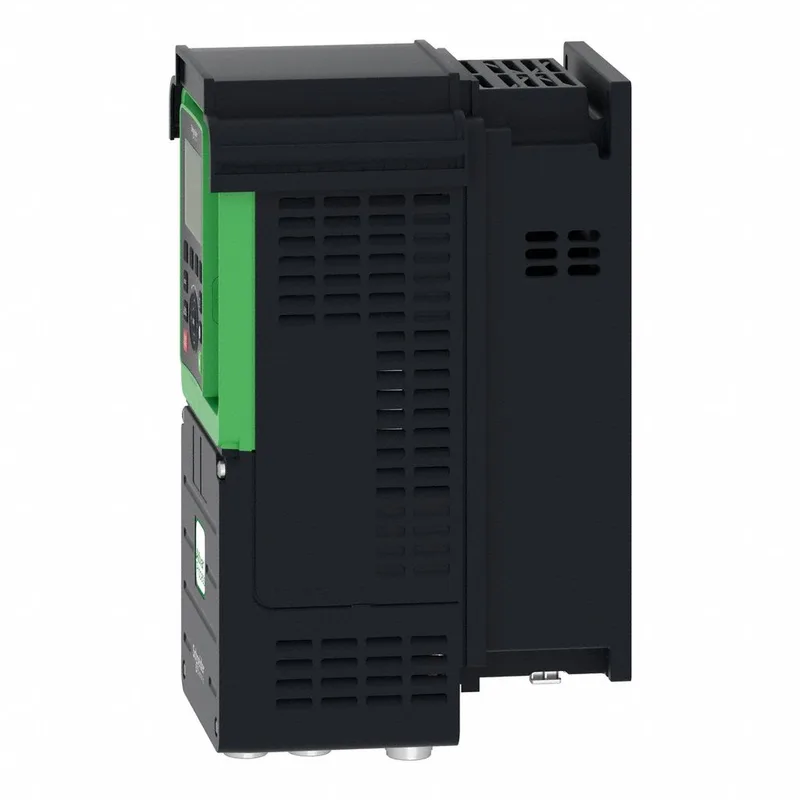

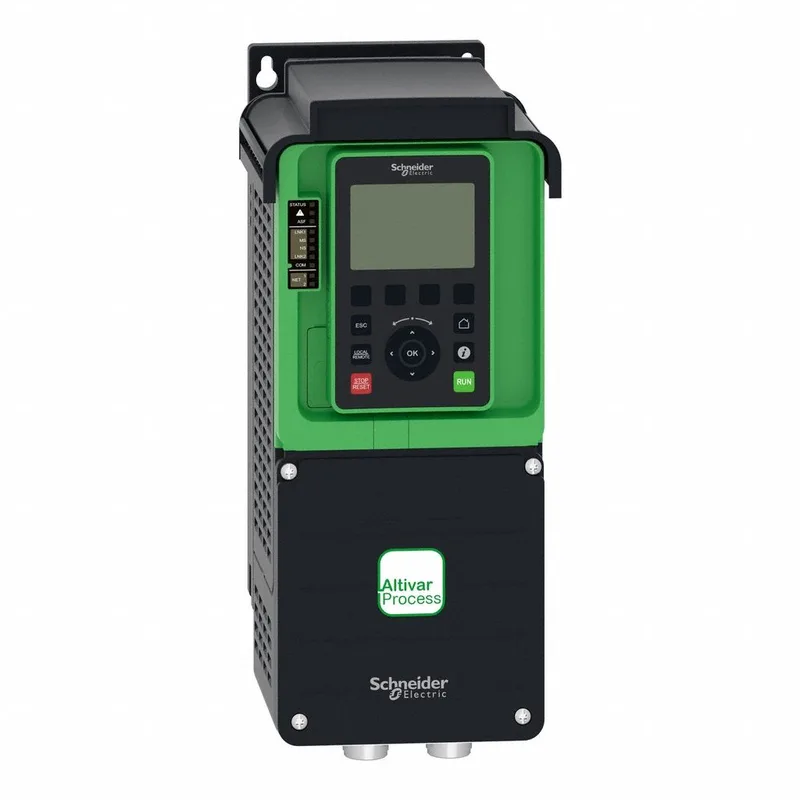

Schneider Electric ATV930U22M3

Schneider ATV930U22M3 Altivar Process VFD, 200-240V 3ph 2.2k

MPNATV930U22M3
Active

Schneider Electric Altivar Process ATV930U22M3, 200-240V 3-phase, 2.2 kW normal duty / 1.5 kW heavy duty, 11.2 A continuous output, with braking chopper, IP21, UL Type 1 wall-mount drive.

$481.33Ref. price · indicative, final on quote
Schneider Electric ATV930U22M3 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ATV930U22M3 key specifications
ParameterValue
Range of productAltivar Process ATV900
Type of polarizationNo impedance
Product or component typeVariable speed drive
Supply voltage200...240 V
Relative symmetric mains voltage tolerance10 %
Nominal output current11.2 A
Continuous output current11.2 A 4 kHz normal duty 8 A 4 kHz heavy duty
Motor power2.2 kW normal duty 1.5 kW heavy duty
Relative symmetric network frequency tolerance5 %
Phases3 phase
IP ratingUL type 1
IP degree of protectionIP21

All specifications

ATV930U22M3 additional specifications
ParameterValue
Communication port protocolModbus serial EtherNet/IP Modbus TCP
Mounting modeWall mount
Electrical connectionControl screw terminal 0.5...1.5 mm² AWG 20...AWG 16 Line side screw terminal 2.5...6 mm² AWG 14...AWG 10 Motor screw terminal 2.5...6 mm² AWG 14...AWG 10 DC bus screw terminal 2.5...6 mm² AWG 14...AWG 10
EMC filterIntegrated With EMC plate option
Pollution degree2
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m
Vibration resistance1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsUL 508C IEC 61800-3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
SupplyExternal supply for digital inputs 24 V DC 19...30 V), Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, Internal supply for digital inputs and STO 24 V DC 21...27 V), 1 MOhm 500 V DC for 1 minute to earth
MarkingCE
VariantWith braking chopper Standard version
CategoryUS1CP4E22276
Data format8 bits, configurable odd, even or no parity
Noise level54.5 dB
Maximum THDI<48 % full load IEC 61000-3-12
Exchange modeHalf duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
Option moduleSlot A communication module Profibus DP V1 Slot A communication module PROFINET Slot A communication module DeviceNet Slot A communication module EtherCAT Slot A communication module CANopen daisy chain RJ45 Slot A communication module CANopen SUB-D 9 Slot A communication module CANopen screw terminals Slot A/slot B/slot C digital and analog I/O extension module Slot A/slot B/slot C output relay extension module Slot B 5/12 V digital encoder interface module Slot B analog encoder interface module Slot B resolver encoder interface module communication module Ethernet Powerlink
Assembly styleEnclosed
Regulation loopAdjustable PID regulator
Transmission rate10, 100 Mbits 4.8 kbps 9600 bit/s 19200 bit/s
Device applicationIndustrial Application
Operating positionVertical +/- 10 degree
Number of addresses1...247
Product destinationAsynchronous motors Synchronous motors
Overvoltage categoryIII
Volume of cooling air10038.7 Gal/hr(US) (38 m3/h)
Environmental characteristicChemical pollution resistance class 3C3 IEC 60721-3-3 Dust pollution resistance class 3S3 IEC 60721-3-3
Product specific applicationProcess for industrial
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

This is the ATV930U22M3, a 3-phase 200-240V variable speed drive from Schneider's Altivar Process ATV900 family. It's a workhorse for asynchronous and synchronous motors up to 2.2 kW normal duty or 1.5 kW heavy duty. Coming straight from the factory with a braking chopper built in and an integrated EMC filter, it saves panel space and avoids two common add-on costs. Rated 11.2 A continuous output at 4 kHz for normal duty, and 8 A at 4 kHz for heavy duty. That 11.2 A figure is what you'll refer to for cable sizing and thermal overload selection. The drive also carries a THDI below 48% at full load per IEC 61000-3-12, so it won't trash the plant power quality like some older PWM drives.

It's covered by UL 508C, IEC 61800-3 (EMC), IEC 61800-5-1 (safety), and IEC 61508 / IEC 13849-1 for functional safety. Marked CE and UL Type 1. For a plant QC review or CE declaration file, those standards are the checklist.

Wall-mount, IP21, UL Type 1. Cooling air volume is 38 m³/h (10038.7 Gal/hr (US)), so leave clearance around the heatsink. Main power terminals accept 2.5-6 mm² (AWG 14-10); control terminals 0.5-1.5 mm² (AWG 20-16). The drive generates its own 24VDC supply for digital inputs and STO, plus a 10.5VDC reference for a 1-10 kΩ potentiometer. One less external PSU in the panel. The control terminals also accept a separate 24V external supply if you prefer isolation. There's a built-in choice between Modbus serial, EtherNet/IP, and Modbus TCP on the communication port, and option slots for Profibus DP, PROFINET, DeviceNet, EtherCAT, CANopen, or Ethernet Powerlink.

Rated for pollution degree 2, overvoltage category III, operating altitude up to 4800 m with derating (1% per 100 m above 1000 m). Vibration resistance is 1.5 mm peak-to-peak (2-13 Hz) and 1 gn (13-200 Hz) per IEC 60068-2-6. Shock rating 15 gn for 11 ms. It's built for the real floor – not a lab queen.

Frequently asked questions

What are the key electrical ratings for this drive?

It operates on 200-240 V 3-phase, delivers 11.2 A continuous (normal duty 2.2 kW) or 8 A (heavy duty 1.5 kW), and comes with an integrated braking chopper.

What control supplies does it provide?

The drive generates 24 V DC for digital inputs and STO (21-27 V), and 10.5 V DC ±5% for a reference potentiometer (1-10 kΩ). You can also inject an external 24 V supply (19-30 V) for the digital inputs.

What compliance documentation is available?

It is CE marked and UL Type 1, meeting UL 508C, IEC 61800-3, IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, and IEC 13849-1. Typical documentation includes a CE declaration and UL recognition.
