Schneider Electric ATV930U30N4

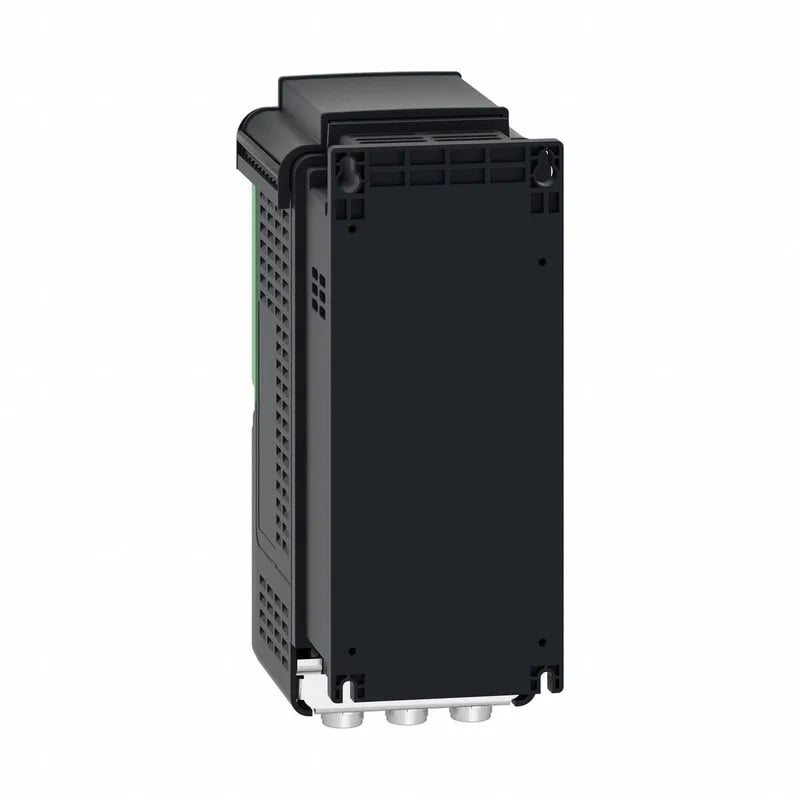

Schneider ATV930U30N4 Altivar Process Drive, 3.0 kW

MPNATV930U30N4
Active

Schneider Altivar Process ATV930U30N4 variable speed drive, 3-phase 380-480 V, 3.0 kW normal duty, IP21, UL Type 1, integrated braking chopper.

$558.00Ref. price · indicative, final on quote
Schneider Electric ATV930U30N4 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

ATV930U30N4 key specifications
ParameterValue
Range of productAltivar Process ATV900
Type of polarizationNo impedance
Product or component typeVariable speed drive
Supply voltage380...480 V
Relative symmetric mains voltage tolerance10 %
Nominal output current7.2 A
Continuous output current7.2 A 4 kHz normal duty 5.6 A 4 kHz heavy duty
Motor power3.0 kW normal duty 2.2 kW heavy duty
Relative symmetric network frequency tolerance5 %
Phases3 phase
IP ratingUL type 1
IP degree of protectionIP21

All specifications

ATV930U30N4 additional specifications
ParameterValue
Communication port protocolModbus serial EtherNet/IP Modbus TCP
Mounting modeWall mount
Electrical connectionControl screw terminal 0.5...1.5 mm² AWG 20...AWG 16 Line side screw terminal 2.5...6 mm² AWG 14...AWG 10 Motor screw terminal 2.5...6 mm² AWG 14...AWG 10 DC bus screw terminal 2.5...6 mm² AWG 14...AWG 10
EMC filterIntegrated With EMC plate option
Pollution degree2
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m
Vibration resistance1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsUL 508C IEC 61800-3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
SupplyExternal supply for digital inputs 24 V DC 19...30 V), Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, Internal supply for digital inputs and STO 24 V DC 21...27 V), 1 MOhm 500 V DC for 1 minute to earth
MarkingCE
VariantWith braking chopper Standard version
CategoryUS1CP4E22276
Data format8 bits, configurable odd, even or no parity
Noise level54.5 dB
Maximum THDI<48 % full load IEC 61000-3-12
Exchange modeHalf duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
Option moduleSlot A communication module Profibus DP V1 Slot A communication module PROFINET Slot A communication module DeviceNet Slot A communication module EtherCAT Slot A communication module CANopen daisy chain RJ45 Slot A communication module CANopen SUB-D 9 Slot A communication module CANopen screw terminals Slot A/slot B/slot C digital and analog I/O extension module Slot A/slot B/slot C output relay extension module Slot B 5/12 V digital encoder interface module Slot B analog encoder interface module Slot B resolver encoder interface module communication module Ethernet Powerlink
Assembly styleEnclosed
Regulation loopAdjustable PID regulator
Transmission rate10, 100 Mbits 4.8 kbps 9600 bit/s 19200 bit/s
Device applicationIndustrial Application
Operating positionVertical +/- 10 degree
Number of addresses1...247
Product destinationAsynchronous motors Synchronous motors
Overvoltage categoryIII
Volume of cooling air10038.7 Gal/hr(US) (38 m3/h)
Environmental characteristicChemical pollution resistance class 3C3 IEC 60721-3-3 Dust pollution resistance class 3S3 IEC 60721-3-3
Product specific applicationProcess for industrial
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

The ATV930U30N4 is an Altivar Process ATV900 drive rated for 3.0 kW normal duty or 2.2 kW heavy duty, on a 380-480 V three-phase supply. Delivers 7.2 A continuous at 4 kHz normal duty; heavy duty current is 5.6 A at the same switching frequency. Enclosed in IP21 with UL Type 1 rating, suitable for clean indoor environments. Wall-mounted, operating position vertical +/-10 degrees. Includes an adjustable PID regulator, integrated braking chopper, and supplies for external digital inputs (24 V DC) and a 1-10 kOhm potentiometer (10.5 V DC).

Certified to UL 508C, IEC 61800-3 (EMC), IEC 61800-5-1 (safety), IEC 61000-3-12 (harmonics), IEC 60721-3 (environment), IEC 61508 and IEC 13849-1 (functional safety).

Wiring and integration notes

EtherNet/IP and Modbus TCP on board; serial Modbus also available. Slot A accepts optional fieldbus modules (Profibus, PROFINET, DeviceNet, EtherCAT, CANopen). Power terminals accept 2.5-6 mm² (AWG 14-10). Control terminal block 0.5-1.5 mm² (AWG 20-16). Operates at 1000-4800 m with current derating 1% per 100 m above 1000 m. Vibration resistance 1.5 mm at 2-13 Hz, 1 gn at 13-200 Hz. Shock 15 gn 11 ms.

Frequently asked questions

What phase and voltage does this drive require?

Three-phase 380-480 V AC supply.

What standards does this drive comply with?

It complies with UL 508C, IEC 61800-3, IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, and IEC 13849-1.

What is the output current rating?

Nominal output current 7.2 A; continuous 7.2 A at 4 kHz normal duty, 5.6 A at 4 kHz heavy duty.

What are the supply voltages for control inputs?

External digital input supply 24 V DC (19-30 V), internal potentiometer supply 10.5 V DC for 1-10 kOhm, and internal STO supply 24 V DC (21-27 V).

MPN
ATV930U30N4
