Schneider Electric ATV930U30N4ZU

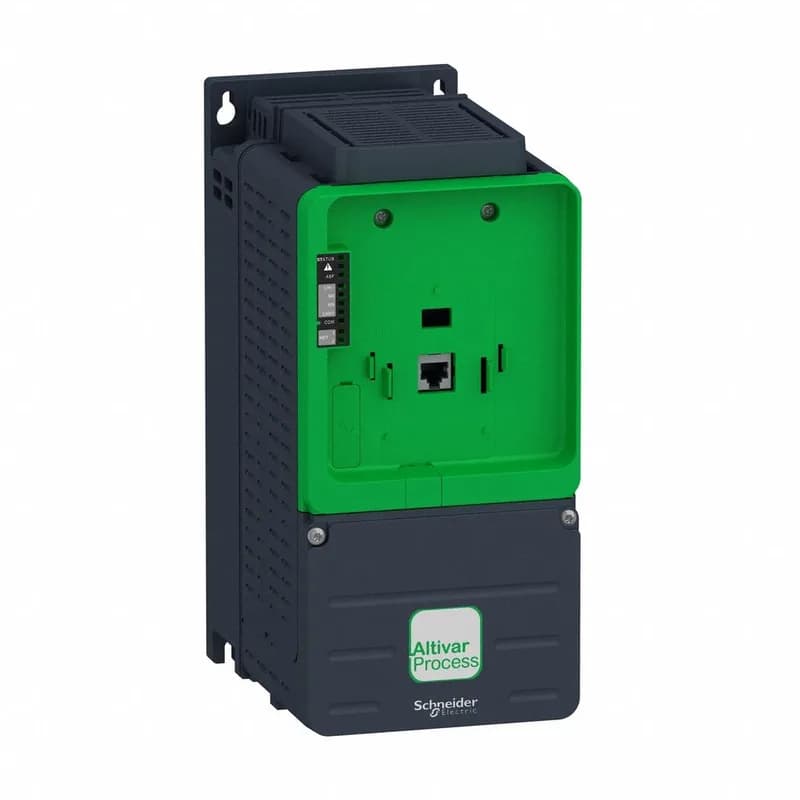

ATV930U30N4ZU Altivar Process drive, 3.0 kW ND, braking chop

MPNATV930U30N4ZU
Active

Schneider Electric Altivar Process ATV900, variable speed drive, ATV930U30N4ZU, 3-phase 380-480 V, 3.0 kW normal duty / 2.2 kW heavy duty, integrated braking chopper and EMC filter.

$1,435.00 – $1,855.52Ref. price · indicative, final on quote
Schneider Electric ATV930U30N4ZU datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ATV930U30N4ZU key specifications
ParameterValue
Range of productAltivar Process ATV900
Type of polarizationNo impedance
Product or component typeVariable speed drive
Supply voltage380...480 V
Relative symmetric mains voltage tolerance10 %
Nominal output current7.2 A
Continuous output current7.2 A 4 kHz normal duty 5.6 A 4 kHz heavy duty
Motor power3.0 kW normal duty 2.2 kW heavy duty
Relative symmetric network frequency tolerance5 %
Phases3 phase
IP ratingUL type 12
IP degree of protectionIP21

All specifications

ATV930U30N4ZU additional specifications
ParameterValue
Communication port protocolModbus serial EtherNet/IP Modbus TCP
Mounting modeCabinet mount
Electrical connectionControl screw terminal 0.5...1.5 mm² AWG 20...AWG 16 Line side screw terminal 2.5...6 mm² AWG 14...AWG 10 Motor screw terminal 2.5...6 mm² AWG 14...AWG 10 DC bus screw terminal 2.5...6 mm² AWG 14...AWG 10
EMC filterIntegrated With EMC plate option
Pollution degree2
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m
Vibration resistance1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsUL 508C IEC 61800-3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
SupplyExternal supply for digital inputs 24 V DC 19...30 V), Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, Internal supply for digital inputs and STO 24 V DC 21...27 V), 1 MOhm 500 V DC for 1 minute to earth
MarkingCE
VariantWith braking chopper Standard version
CategoryUS1CP4E22276
Data format8 bits, configurable odd, even or no parity
Noise level54.5 dB
Maximum THDI<48 % full load IEC 61000-3-12
Exchange modeHalf duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
Option moduleSlot A communication module Profibus DP V1 Slot A communication module PROFINET Slot A communication module DeviceNet Slot A communication module EtherCAT Slot A communication module CANopen daisy chain RJ45 Slot A communication module CANopen SUB-D 9 Slot A communication module CANopen screw terminals Slot A/slot B/slot C digital and analog I/O extension module Slot A/slot B/slot C output relay extension module Slot B 5/12 V digital encoder interface module Slot B analog encoder interface module Slot B resolver encoder interface module communication module Ethernet Powerlink
Assembly styleWith heat sink
Regulation loopAdjustable PID regulator
Transmission rate10, 100 Mbits 4.8 kbps 9600 bit/s 19200 bit/s
Device applicationIndustrial Application
Operating positionVertical +/- 10 degree
Number of addresses1...247
Product destinationAsynchronous motors Synchronous motors
Overvoltage categoryIII
Volume of cooling air10038.7 Gal/hr(US) (38 m3/h)
Environmental characteristicChemical pollution resistance class 3C3 IEC 60721-3-3 Dust pollution resistance class 3S3 IEC 60721-3-3
Product specific applicationProcess for industrial
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

Drive selection memo: ATV930U30N4ZU

The ATV930U30N4ZU is a 3-phase variable speed drive from the Altivar Process ATV900 series, rated for 380–480 V supply. It delivers 3.0 kW in normal duty and 2.2 kW in heavy duty, with continuous output current of 7.2 A at 4 kHz (normal duty) or 5.6 A (heavy duty). The heavy duty rating is intended for constant torque loads such as conveyors or extruders; the normal duty rating covers variable torque applications like pumps and fans. The drive includes an integrated braking chopper as standard. The built-in EMC filter reduces external filtering requirements.

Communication and integration

Factory-installed communication ports support Modbus serial, EtherNet/IP, and Modbus TCP at configurable baud rates (9600, 19200, 4.8 kbps, 10/100 Mbits). Three option slots (A, B, C) accept fieldbus modules for Profibus DP, PROFINET, DeviceNet, EtherCAT, CANopen, and Ethernet Powerlink. Slot B also accommodates encoder/resolver feedback cards for closed-loop applications. Control wiring uses screw terminals rated for 0.5–1.5 mm² (AWG 20–16). Power wiring (line, motor, DC bus) accepts 2.5–6 mm² (AWG 14–10). Mounting is cabinet-mount with an IP21 / UL type 12 enclosure. Operating position is vertical ±10°.

Compliance documentation includes UL 508C (UL listing for industrial control equipment), IEC 61800-3 (EMC), IEC 61800-5-1 (safety), IEC 61000-3-12 (harmonic current emissions), IEC 60721-3 (environmental), IEC 61508 and ISO 13849-1 (functional safety). CE marked.

Frequently asked questions

What are the key electrical ratings for this drive?

It is a 3-phase 380–480 V drive. Normal duty: 3.0 kW with 7.2 A continuous output at 4 kHz. Heavy duty: 2.2 kW with 5.6 A continuous output at 4 kHz. Includes an integrated braking chopper.

What certifications does the ATV930U30N4ZU carry?

The drive is UL 508C listed, CE marked, and complies with IEC 61800-3 (EMC), IEC 61800-5-1 (safety), IEC 61000-3-12 (harmonics), IEC 60721-3 (environment), IEC 61508 and ISO 13849-1 (functional safety).

How is the drive supplied for digital inputs and STO?

External supply for digital inputs: 24 V DC (19–30 V). Internal supply for STO: 24 V DC (21–27 V). Internal 10.5 V DC ±5 % supply is available for a reference potentiometer (1–10 kΩ). Insulation tested at 500 V DC, 1 MΩ to earth.
