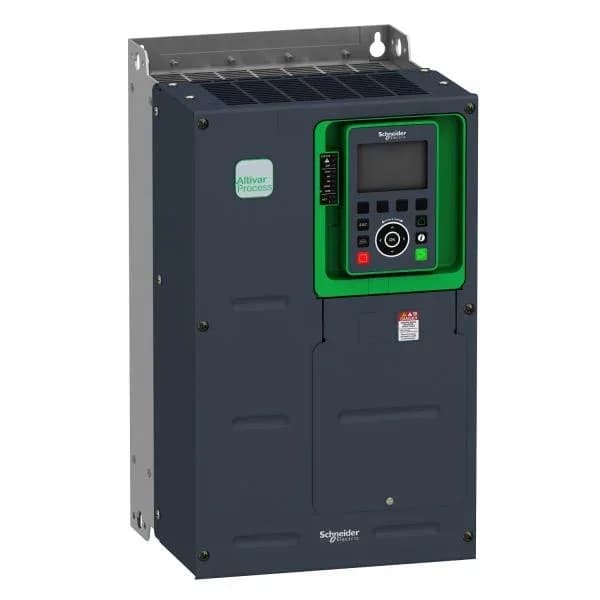

Schneider Electric ATV930U30Y6

Schneider ATV930U30Y6 Altivar Process drive, 2.2 kW, 500-690

MPNATV930U30Y6
Active

Schneider Electric Altivar Process ATV930U30Y6 variable speed drive, 2.2 kW normal duty, 1.5 kW heavy duty, 500...690 V 3-phase supply, 4.2 A output, with braking chopper, IP21, wall mount.

$1,494.79 – $2,712.93Ref. price · indicative, final on quote
Schneider Electric ATV930U30Y6 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ATV930U30Y6 key specifications
ParameterValue
Range of productAltivar Process ATV900
Type of polarizationNo impedance
Product or component typeVariable speed drive
Supply voltage500...690 V
Relative symmetric mains voltage tolerance10 %
Nominal output current4.2 A
Continuous output current4.2 A 4 kHz normal duty 3.1 A 4 kHz heavy duty
Motor power2.2 kW normal duty 1.5 kW heavy duty
Relative symmetric network frequency tolerance5 %
Phases3 phase
IP ratingUL type 1
IP degree of protectionIP21

All specifications

ATV930U30Y6 additional specifications
ParameterValue
Communication port protocolModbus serial Modbus TCP EtherNet/IP
Mounting modeWall mount
Electrical connectionControl screw terminal 0.5...1.5 mm² AWG 20...AWG 16 DC bus screw terminal 4...10 mm² AWG 12...AWG 8 Line side screw terminal 4...10 mm² AWG 12...AWG 8 Motor screw terminal 4...10 mm² AWG 12...AWG 8
EMC filterIntegrated With EMC plate option
Pollution degree2
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m
Vibration resistance1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsUL 508C IEC 61800-3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
SupplyExternal supply for digital inputs 24 V DC 19...30 V), Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, Internal supply for digital inputs and STO 24 V DC 21...27 V), 1 MOhm 500 V DC for 1 minute to earth
MarkingCE
VariantWith braking chopper Standard version
CategoryUS1CP4E22276
Data format8 bits, configurable odd, even or no parity
Noise level58 dB
Exchange modeHalf duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
Option moduleSlot A communication module Profibus DP V1 Slot A communication module PROFINET Slot A communication module DeviceNet Slot A communication module EtherCAT Slot A communication module CANopen daisy chain RJ45 Slot A communication module CANopen SUB-D 9 Slot A communication module CANopen screw terminals Slot A/slot B/slot C digital and analog I/O extension module Slot A/slot B/slot C output relay extension module Slot B 5/12 V digital encoder interface module Slot B analog encoder interface module Slot B resolver encoder interface module communication module Ethernet Powerlink
Assembly styleEnclosed
Regulation loopAdjustable PID regulator
Transmission rate10, 100 Mbits 4.8 kbps 9600 bit/s 19200 bit/s
Device applicationIndustrial Application
Operating positionVertical +/- 10 degree
Number of addresses1...247
Product destinationSynchronous motors Asynchronous motors
Overvoltage categoryIII
Volume of cooling air87178.3 Gal/hr(US) (330 m3/h)
Environmental characteristicChemical pollution resistance class 3C3 IEC 60721-3-3 Dust pollution resistance class 3S3 IEC 60721-3-3
Product specific applicationProcess for industrial
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

The Schneider ATV930U30Y6 is an Altivar Process ATV900 drive sized for a 2.2 kW induction motor on 500-690 V three-phase. The heavy duty rating drops to 1.5 kW with 3.1 A continuous output at 4 kHz, giving headroom for constant-torque loads like conveyors or extruders. Integrated braking chopper handles overhauling loads without an external module. Rated supply voltage is 500-690 V; nominal output current is 4.2 A continuous. The on-board EMC filter is integrated with an optional EMC plate.

Wall-mount design with IP21 protection. Power terminals accept 4-10 mm² / AWG 12-8 for line, motor, and DC bus. Control wiring uses screw terminals for 0.5-1.5 mm² / AWG 20-16. An internal 24 V DC supply powers digital inputs and STO; a separate 10.5 V DC supply powers an external reference potentiometer (1-10 kOhm). Communication is handled via Modbus serial or Ethernet IP/Modbus TCP at 10/100 Mbits; option slots accept Profibus DP, PROFINET, DeviceNet, EtherCAT, CANopen, or encoder interface modules.
