Schneider Electric ATV930U40S6X

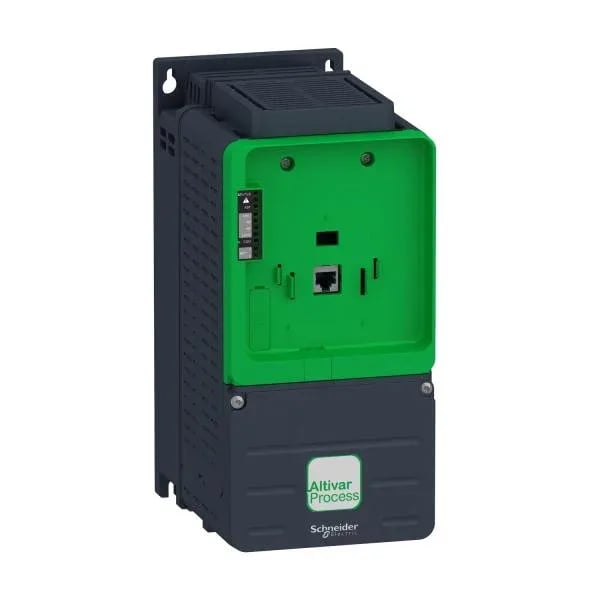

Schneider ATV930U40S6X Altivar Process 900 VSD, 600V 7.2A

MPNATV930U40S6X
Active

Schneider Electric Altivar Process ATV900 series variable speed drive, ATV930U40S6X, 3-phase 600 V rated supply, 7.2 A continuous output (normal duty 4 kHz), integrated EMC filter and braking chopper.

$2,997.63Ref. price · indicative, final on quote
Schneider Electric ATV930U40S6X datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ATV930U40S6X key specifications
ParameterValue
Range of productAltivar Process ATV900
Type of polarizationNo impedance
Product or component typeVariable speed drive
Supply voltage600 V
Relative symmetric mains voltage tolerance10 %
Nominal output current7.2 A
Continuous output current7.2 A 4 kHz normal duty 4.2 A 4 kHz heavy duty
Relative symmetric network frequency tolerance5 %
Phases3 phase
IP ratingUL type 1
IP degree of protectionIP21
Communication port protocolModbus TCP EtherNet/IP Modbus serial

All specifications

ATV930U40S6X additional specifications
ParameterValue
Mounting modeWall mount
Electrical connectionControl screw terminal 0.5...1.5 mm² AWG 20...AWG 16 Motor screw terminal 6...10 mm² AWG 10...AWG 8 Line side screw terminal 6 mm² AWG 10 DC bus screw terminal 6 mm² AWG 10
EMC filterIntegrated With EMC plate option
Pollution degree2
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m
Vibration resistance1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsUL 508C IEC 61800-3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
SupplyExternal supply for digital inputs 24 V DC 19...30 V), Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, Internal supply for digital inputs and STO 24 V DC 21...27 V), 1 MOhm 500 V DC for 1 minute to earth
VariantWith braking chopper Standard version
CategoryUS1CP4E22276
Data format8 bits, configurable odd, even or no parity
Noise level56 dB
Exchange modeHalf duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
Option moduleSlot A communication module Profibus DP V1 Slot A communication module PROFINET Slot A communication module DeviceNet Slot A communication module EtherCAT Slot A communication module CANopen daisy chain RJ45 Slot A communication module CANopen SUB-D 9 Slot A communication module CANopen screw terminals Slot A/slot B/slot C digital and analog I/O extension module Slot A/slot B/slot C output relay extension module Slot B 5/12 V digital encoder interface module Slot B analog encoder interface module Slot B resolver encoder interface module communication module Ethernet Powerlink
Assembly styleEnclosed
Regulation loopAdjustable PID regulator
Transmission rate10, 100 Mbits 4.8 kbps 9600 bit/s 19200 bit/s
Device applicationIndustrial Application
Operating positionVertical +/- 10 degree
Number of addresses1...247
Product destinationSynchronous motors Asynchronous motors
Overvoltage categoryIII
Volume of cooling air27210.2 Gal/hr(US) (103 m3/h)
Environmental characteristicChemical pollution resistance class 3C3 IEC 60721-3-3 Dust pollution resistance class 3S3 IEC 60721-3-3
Product specific applicationProcess for industrial
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

The Schneider Electric ATV930U40S6X is an Altivar Process ATV900 variable speed drive rated for 3-phase 600 V supply, delivering 7.2 A continuous output at 4 kHz normal duty (4.2 A heavy duty), with an integrated EMC filter and built-in braking chopper for process applications. Its IP21 enclosure and UL Type 1 rating suit it for clean indoor installation, wall-mounted vertically. The control terminals accept 0.5–1.5 mm² (AWG 20–16) wire; motor and line terminals are sized 6–10 mm² (AWG 10–8).

Communications and IO expansion

Communication includes Modbus TCP, EtherNet/IP, and Modbus serial at 10/100 Mbit and 4.8 kbps. Three option slots accept modules for Profibus DP, PROFINET, DeviceNet, EtherCAT, CANopen, I/O, relay, and encoder interfaces. Internal supply provides 24 V DC (21–27 V) for digital inputs and STO, plus 10.5 V DC for a 1–10 kΩ potentiometer. External 24 V (19–30 V) can be used for the digital inputs.

Environmental ratings

Rated for 5–95% relative humidity (non-condensing), vibration resistance of 1.5 mm peak-to-peak at 2–13 Hz and 1 gn at 13–200 Hz, shock resistance 15 gn / 11 ms. Altitude derating starts at 1000 m (1% per 100 m). Requires 103 m³/h cooling air. Noise level 56 dB.

Frequently asked questions

What phase and voltage does this drive require?

The ATV930U40S6X is a 3-phase drive with a rated supply voltage of 600 V.

What are the supply requirements for the digital inputs?

Digital inputs can be powered externally with 24 V DC (19–30 V) or internally via the drive's 24 V DC supply (21–27 V) which also powers the STO function. An internal 10.5 V DC supply is provided for a reference potentiometer (1–10 kΩ).

What compliance certifications does the ATV930U40S6X carry?

The drive is UL 508C listed and complies with IEC 61800-3 (EMC), IEC 61800-5-1 (safety), IEC 61000-3-12, IEC 60721-3, IEC 61508, and IEC 13849-1.
