Schneider Electric ATV930U55S6X

Schneider ATV930U55S6X VSD, 600V 3-Phase, 9.5A

MPNATV930U55S6X
Active

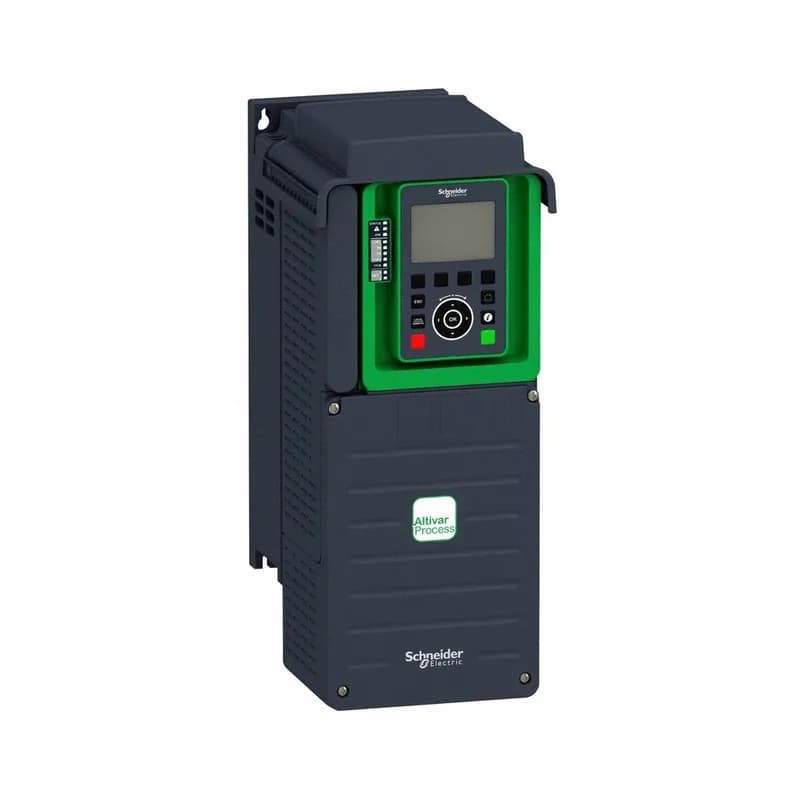

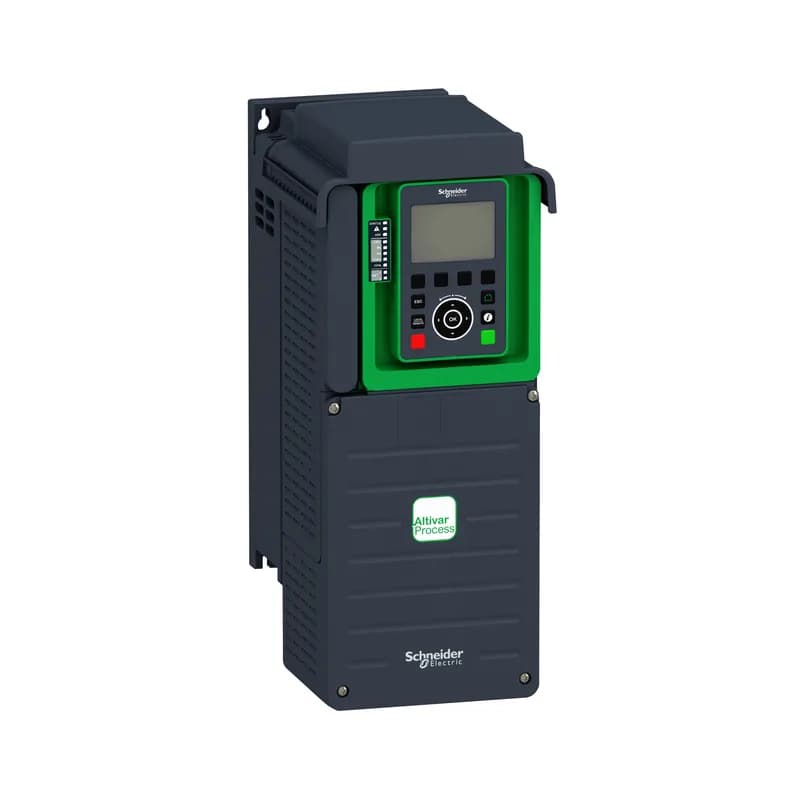

Schneider Electric Altivar Process ATV900, ATV930U55S6X, variable speed drive, 3-phase 600 V, 9.5 A normal duty, with braking chopper, IP21

$2,330.00 – $3,179.49Ref. price · indicative, final on quote
Schneider Electric ATV930U55S6X datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ATV930U55S6X key specifications
ParameterValue
Range of productAltivar Process ATV900
Type of polarizationNo impedance
Product or component typeVariable speed drive
Supply voltage600 V
Relative symmetric mains voltage tolerance10 %
Nominal output current9.5 A
Continuous output current7.2 A 4 kHz heavy duty 9.5 A 4 kHz normal duty
Relative symmetric network frequency tolerance5 %
Phases3 phase
IP ratingUL type 1
IP degree of protectionIP21
Communication port protocolModbus TCP EtherNet/IP Modbus serial

All specifications

ATV930U55S6X additional specifications
ParameterValue
Mounting modeWall mount
Electrical connectionControl screw terminal 0.5...1.5 mm² AWG 20...AWG 16 Motor screw terminal 6...10 mm² AWG 10...AWG 8 Line side screw terminal 6 mm² AWG 10 DC bus screw terminal 6 mm² AWG 10
EMC filterIntegrated With EMC plate option
Pollution degree2
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m
Vibration resistance1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsUL 508C IEC 61800-3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
SupplyExternal supply for digital inputs 24 V DC 19...30 V), Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, Internal supply for digital inputs and STO 24 V DC 21...27 V), 1 MOhm 500 V DC for 1 minute to earth
VariantStandard version With braking chopper
CategoryUS1CP4E22276
Data format8 bits, configurable odd, even or no parity
Noise level56 dB
Exchange modeHalf duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
Option moduleSlot A communication module Profibus DP V1 Slot A communication module PROFINET Slot A communication module DeviceNet Slot A communication module EtherCAT Slot A communication module CANopen daisy chain RJ45 Slot A communication module CANopen SUB-D 9 Slot A communication module CANopen screw terminals Slot A/slot B/slot C digital and analog I/O extension module Slot A/slot B/slot C output relay extension module Slot B 5/12 V digital encoder interface module Slot B analog encoder interface module Slot B resolver encoder interface module communication module Ethernet Powerlink
Assembly styleEnclosed
Regulation loopAdjustable PID regulator
Transmission rate10, 100 Mbits 4.8 kbps 9600 bit/s 19200 bit/s
Device applicationIndustrial Application
Operating positionVertical +/- 10 degree
Number of addresses1...247
Product destinationSynchronous motors Asynchronous motors
Overvoltage categoryIII
Volume of cooling air27210.2 Gal/hr(US) (103 m3/h)
Environmental characteristicChemical pollution resistance class 3C3 IEC 60721-3-3 Dust pollution resistance class 3S3 IEC 60721-3-3
Product specific applicationProcess for industrial
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

Drive at a glance

The ATV930U55S6X is a 3-phase 600 V variable speed drive from the Altivar Process ATV900 series, built for synchronous and asynchronous motors in process industrial applications. Continuous output current is 9.5 A at 4 kHz for normal duty, dropping to 7.2 A under heavy duty. The braking chopper is integrated, so no external resistor board is needed for dynamic braking on vertical loads or short decels.

Power supply and control wiring

Digital inputs and STO are powered internally at 24 V DC (21...27 V); the reference potentiometer gets 10.5 V DC from the drive. External 24 V DC is required for any additional digital I/O modules. Control terminals accept 0.5...1.5 mm² (AWG 20...16), line and motor terminals 6...10 mm² (AWG 10...8). Spring-clamp or screw type? The listing says screw terminals. Mount it vertically within ±10°, wall-mount only. Keep ambient below the rating — 5...95% relative humidity, non-condensing.

EMC and compliance

EMC filter is integrated; an optional EMC plate is available for higher performance. Compliance includes UL 508C (US), IEC 61800-3 (EMC), IEC 61800-5-1 (safety), IEC 61000-3-12 (harmonics), IEC 60721-3 (environment), and functional safety standards IEC 61508 / IEC 13849-1.

EtherNet/IP and Modbus TCP on board; Modbus serial as well. Auto-negotiation, 10/100 Mbit/s, half or full duplex. Slot A accepts Profibus, PROFINET, DeviceNet, EtherCAT, CANopen, or Ethernet Powerlink modules. Auxiliary slots B and C accept digital/analog I/O extension, relay output, or encoder interface modules (digital 5/12 V, analog, or resolver). Good flexibility for retrofit. Built-in PID regulator handles closed-loop process control without an external controller — setpoint via analog or serial link.

Frequently asked questions

What are the continuous output current ratings?

At 4 kHz switching frequency: 9.5 A for normal duty and 7.2 A for heavy duty.

What supply voltage and phase does this drive require?

It operates on 600 V three-phase input. The drive is 3-phase rated.

What compliance documents are available for this drive?

It meets UL 508C, IEC 61800-3/5-1, IEC 61000-3-12, IEC 60721-3, and functional safety standards IEC 61508 / IEC 13849-1.

MPN
ATV930U55S6X
