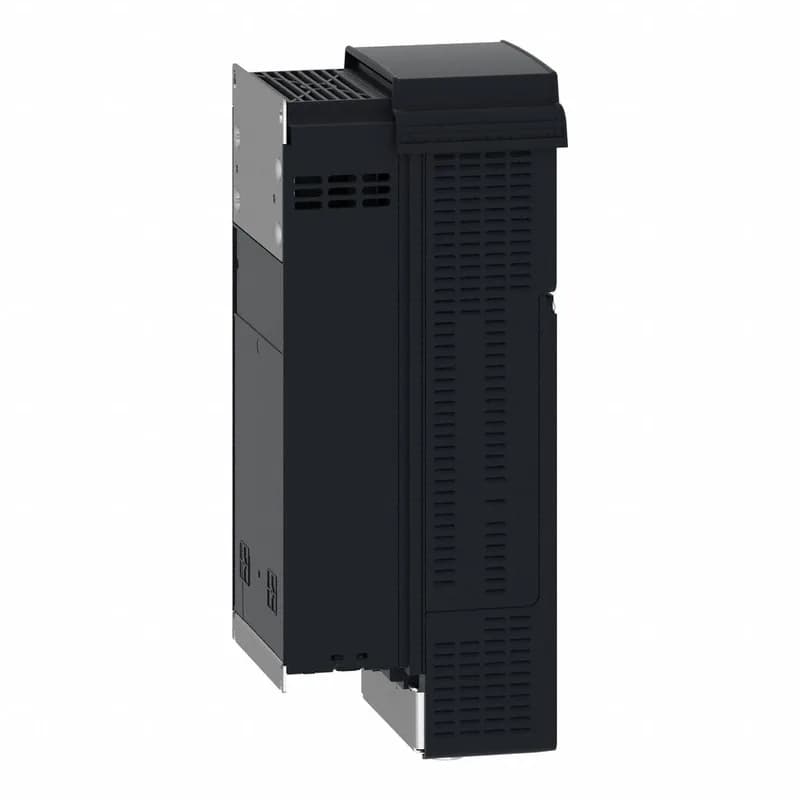

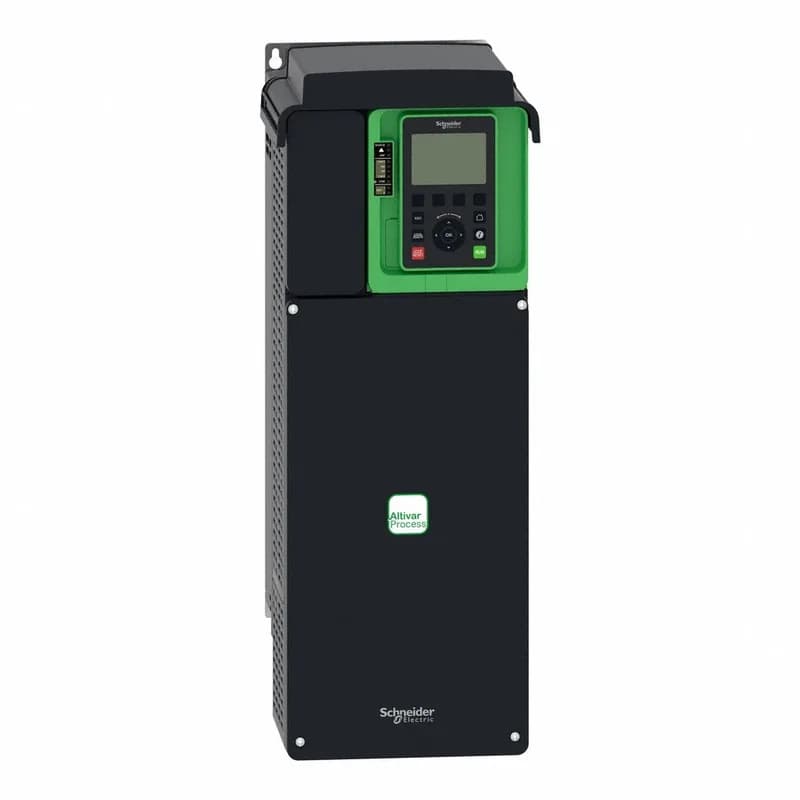

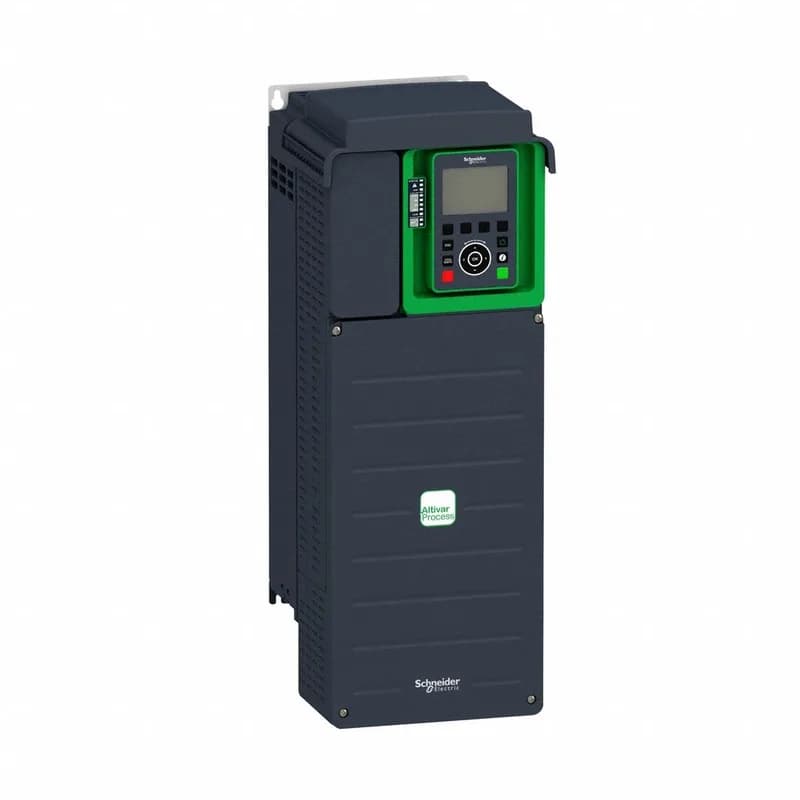

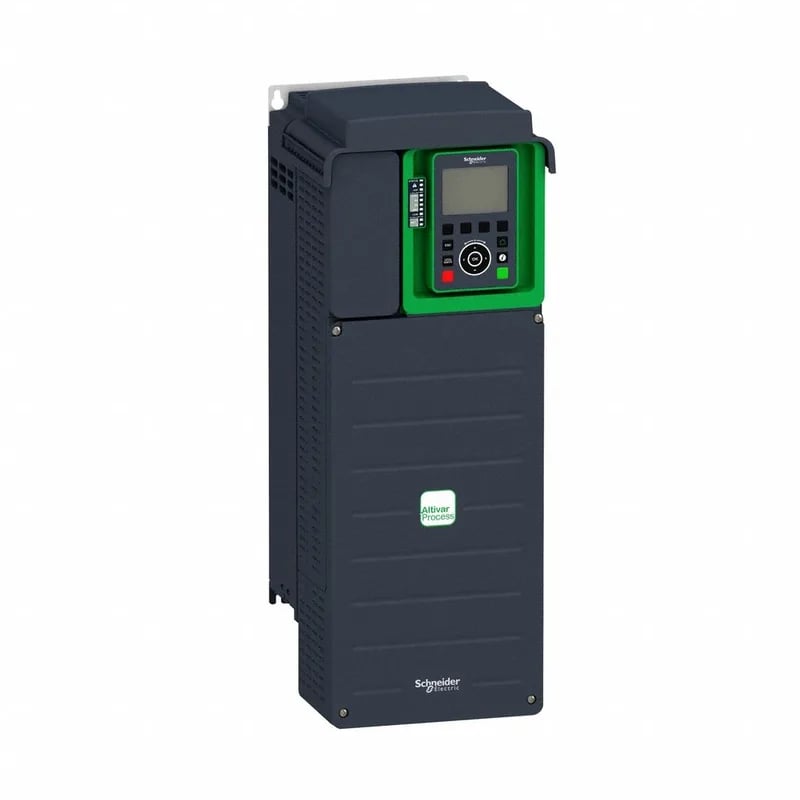

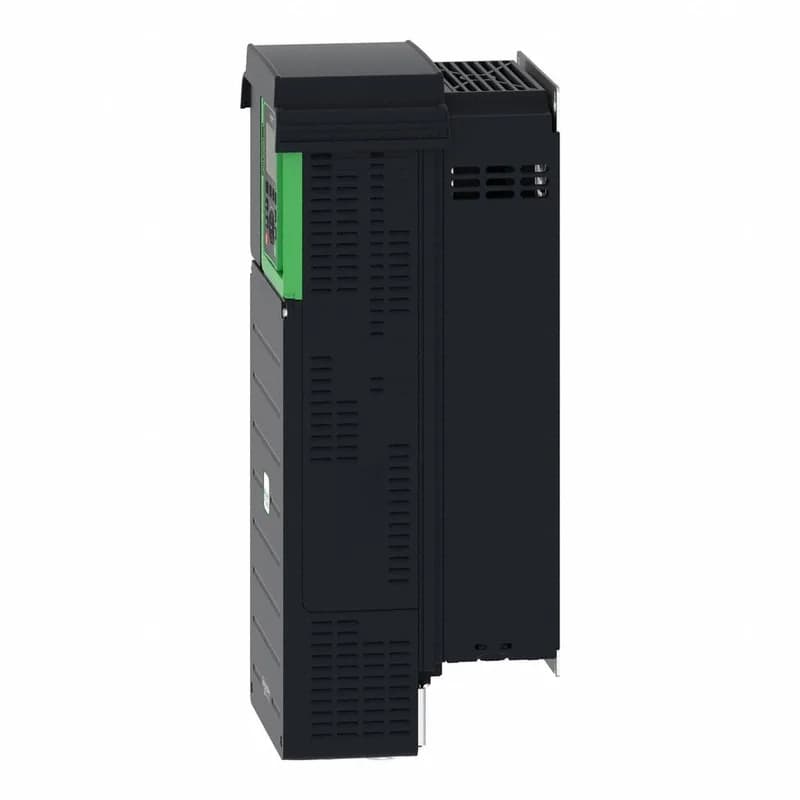

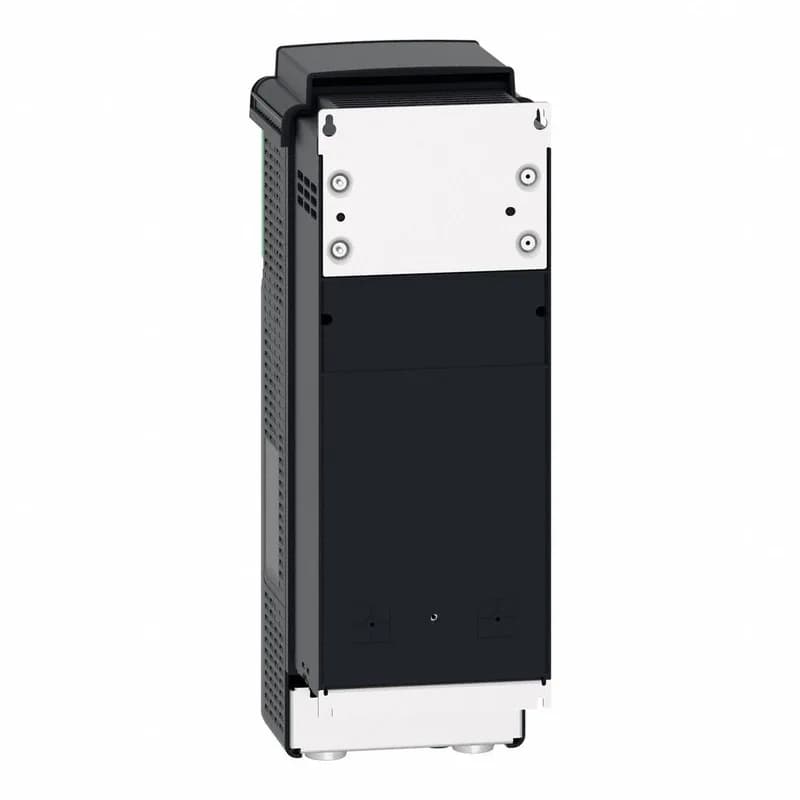

Schneider Electric ATV930U75M3

Schneider ATV930U75M3 VFD, 7.5 kW, 200-240V 3-Ph

MPNATV930U75M3
Active

Schneider Altivar Process ATV900 variable speed drive, order code ATV930U75M3, 7.5 kW normal duty, 200-240 V three-phase, 32.7 A output, with braking chopper and integrated EMC filter.

$994.41Ref. price · indicative, final on quote
Schneider Electric ATV930U75M3 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ATV930U75M3 key specifications
ParameterValue
Range of productAltivar Process ATV900
Type of polarizationNo impedance
Product or component typeVariable speed drive
Supply voltage200...240 V
Relative symmetric mains voltage tolerance10 %
Nominal output current32.7 A
Continuous output current32.7 A 4 kHz normal duty 25.4 A 4 kHz heavy duty
Motor power7.5 kW normal duty 5.5 kW heavy duty
Relative symmetric network frequency tolerance5 %
Phases3 phase
IP ratingUL type 1
IP degree of protectionIP21

All specifications

ATV930U75M3 additional specifications
ParameterValue
Communication port protocolModbus serial EtherNet/IP Modbus TCP
Mounting modeWall mount
Electrical connectionControl screw terminal 0.5...1.5 mm² AWG 20...AWG 16 Line side screw terminal 10...16 mm² AWG 8...AWG 6 Motor screw terminal 10...16 mm² AWG 8...AWG 6 DC bus screw terminal 10...16 mm² AWG 8...AWG 6
EMC filterIntegrated With EMC plate option
Pollution degree2
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m
Vibration resistance1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsUL 508C IEC 61800-3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
SupplyExternal supply for digital inputs 24 V DC 19...30 V), Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, Internal supply for digital inputs and STO 24 V DC 21...27 V), 1 MOhm 500 V DC for 1 minute to earth
MarkingCE
VariantWith braking chopper Standard version
CategoryUS1CP4E22277
Data format8 bits, configurable odd, even or no parity
Noise level59.5 dB
Maximum THDI<48 % from 80...100 % of load IEC 61000-3-12
Exchange modeHalf duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
Option moduleSlot A communication module Profibus DP V1 Slot A communication module PROFINET Slot A communication module DeviceNet Slot A communication module EtherCAT Slot A communication module CANopen daisy chain RJ45 Slot A communication module CANopen SUB-D 9 Slot A communication module CANopen screw terminals Slot A/slot B/slot C digital and analog I/O extension module Slot A/slot B/slot C output relay extension module Slot B 5/12 V digital encoder interface module Slot B analog encoder interface module Slot B resolver encoder interface module communication module Ethernet Powerlink
Assembly styleEnclosed
Regulation loopAdjustable PID regulator
Transmission rate10, 100 Mbits 4.8 kbps 9600 bit/s 19200 bit/s
Device applicationIndustrial Application
Operating positionVertical +/- 10 degree
Number of addresses1...247
Product destinationSynchronous motors Asynchronous motors
Overvoltage categoryIII
Volume of cooling air27210.2 Gal/hr(US) (103 m3/h)
Environmental characteristicChemical pollution resistance class 3C3 IEC 60721-3-3 Dust pollution resistance class 3S3 IEC 60721-3-3
Product specific applicationProcess for industrial
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

The Schneider ATV930U75M3 is an Altivar Process ATV900 variable speed drive rated for 7.5 kW normal duty on a 200-240 V three-phase supply, with a heavy-duty capability of 5.5 kW. Continuous output current is 32.7 A at 4 kHz switching for normal duty, dropping to 25.4 A for heavy-duty profiles. The drive includes an integrated braking chopper as standard, so no external brake resistor module is needed for dynamic braking applications. The enclosure is IP21 / UL Type 1, with a wall-mount footprint that requires vertical +/-10 degree orientation. An integrated EMC filter is fitted; an optional EMC plate is available for more stringent environments. The drive supports asynchronous and synchronous motors, with an adjustable PID regulator for closed-loop control.

Communications and I/O

Built-in Modbus serial, EtherNet/IP, and Modbus TCP ports at 10/100 Mbit/s and 9600–19200 baud. Three option slots (A, B, C) accept communication modules for PROFIBUS DP, PROFINET, DeviceNet, EtherCAT, CANopen, or Ethernet PowerLink, plus digital/analog I/O and encoder interface modules. Control terminals accept 0.5-1.5 mm² (AWG 20-16) screw connections; power terminals use 10-16 mm² (AWG 8-6). Digital inputs are supplied from an external 24 V DC source (19-30 V) or an internal supply (21-27 V). An internal 10.5 V DC reference is provided for a 1-10 kΩ potentiometer. Cooling airflow is 103 m3/h (27210.2 Gal/hr(US)). Noise level is 59.5 dB. The drive is rated for vibration per IEC 60068-2-6 and shock per IEC 60068-2-27.

Sourcing is to order against an RFQ. As a cross-border distribution desk, we can quote this genuine Schneider drive from multiple regions; the same part, different passport. The unit carries CE marking and UL listing (UL 508C, IEC 61800-3, IEC 61800-5-1, IEC 61508, IEC 13849-1), so compliance documentation matches the nameplate.

Frequently asked questions

What is the supply voltage and phase requirement?

This drive requires a 200–240 V three-phase supply (3 phase).

What compliance certifications does it hold?

It is CE marked and listed to UL 508C, IEC 61800-3, IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, and IEC 13849-1.

What are the control supply options?

Digital inputs can use an external 24 V DC supply (19-30 V) or an internal 24 V DC supply (21-27 V). There is also an internal 10.5 V DC reference for a 1-10 kΩ potentiometer.
