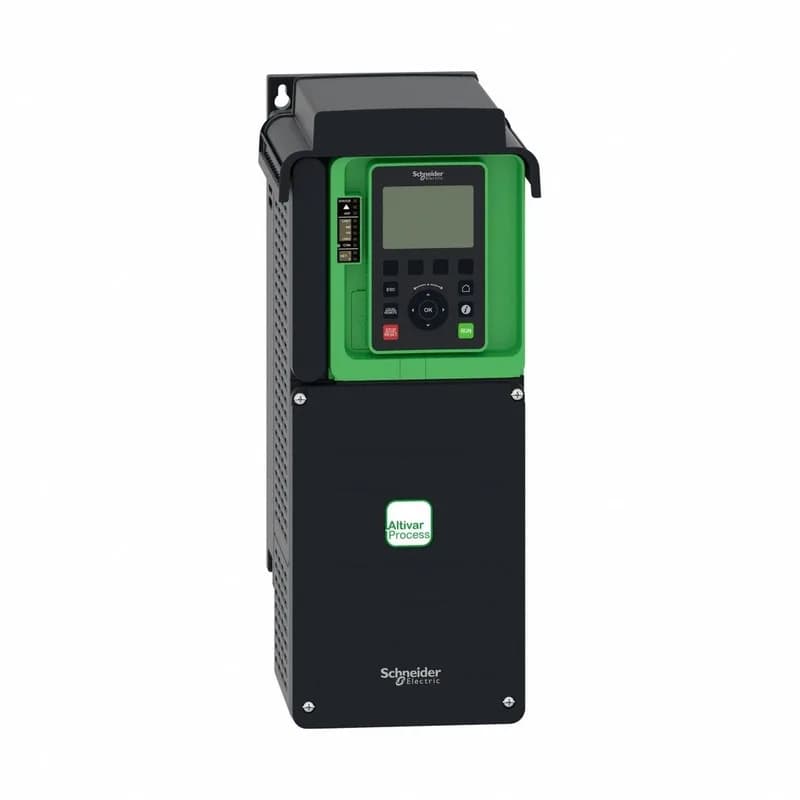

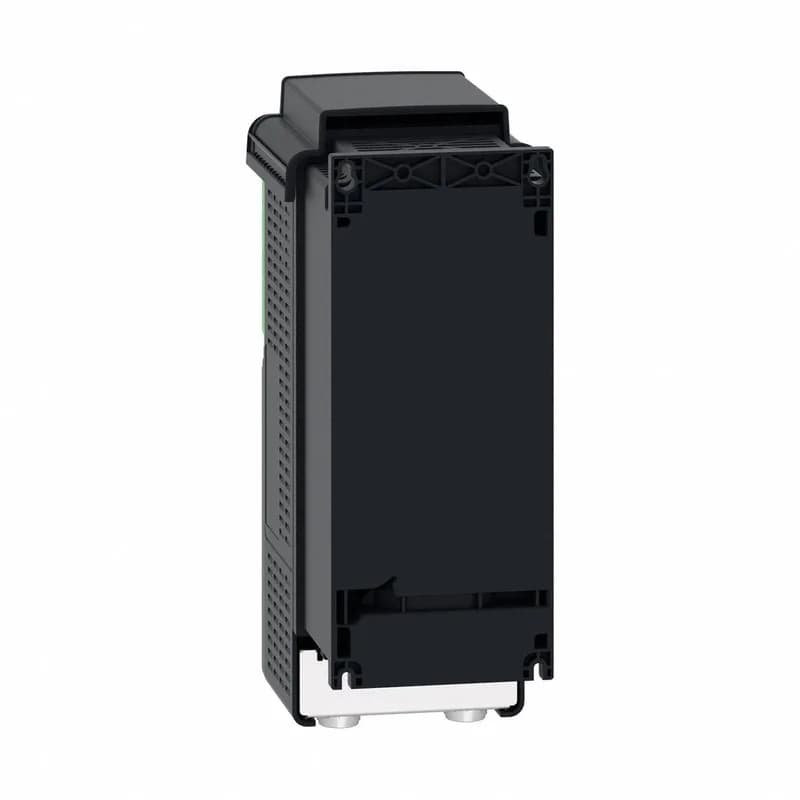

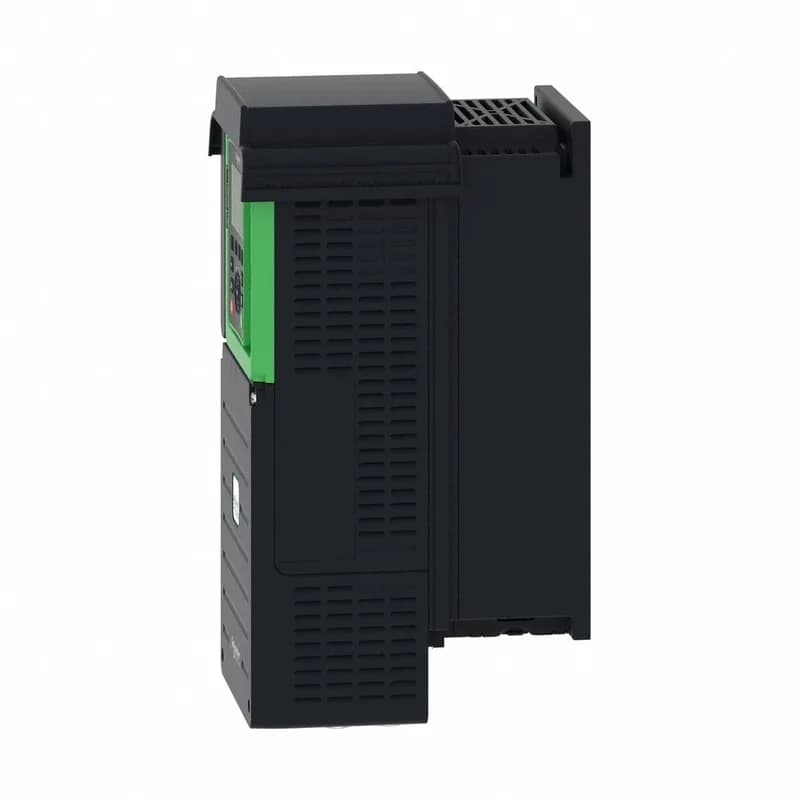

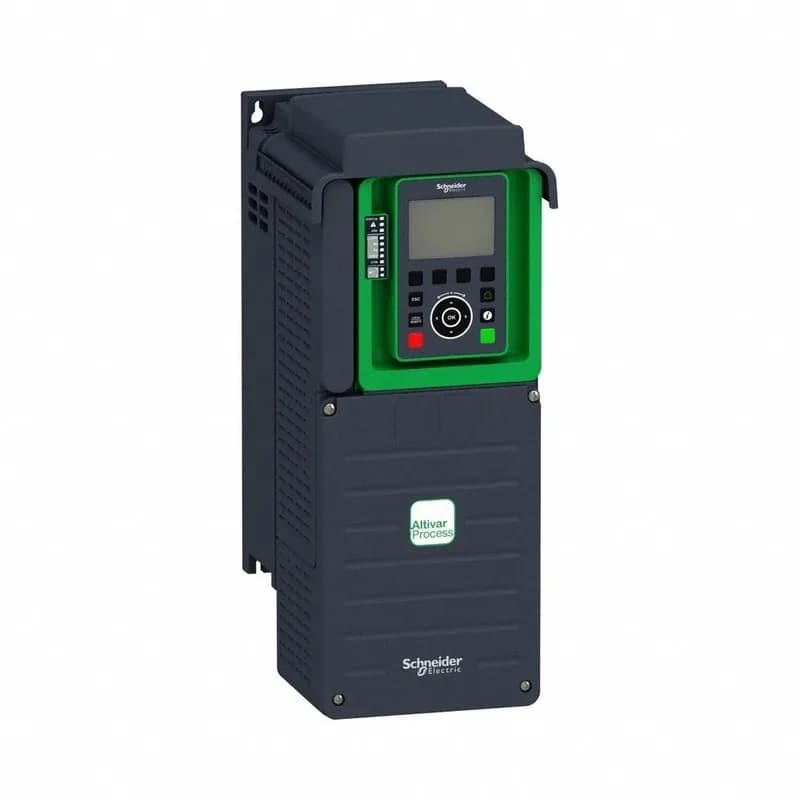

| Communication port protocol | EtherNet/IP Modbus TCP Modbus serial |
|---|
| Mounting mode | Wall mount |
|---|
| Electrical connection | Control screw terminal 0.5...1.5 mm² AWG 20...AWG 16 Line side screw terminal 4...6 mm² AWG 12...AWG 10 Motor screw terminal 6...10 mm² AWG 10...AWG 8 DC bus screw terminal 4...6 mm² AWG 12...AWG 10 |
|---|
| EMC filter | Integrated With EMC plate option |
|---|
| Pollution degree | 2 |
|---|
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
|---|
| Relative humidity | 5...95 % without condensation IEC 60068-2-3 |
|---|
| Operating altitude | 1000...4800 m with current derating 1 % per 100 m |
|---|
| Vibration resistance | 1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6 |
|---|
| Permitted relative humidity (during operation) | Class 3K5 according to EN 60721-3 |
|---|
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
|---|
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
|---|
| Standards | UL 508C IEC 61800-3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1 |
|---|
| Supply | External supply for digital inputs 24 V DC 19...30 V), Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, Internal supply for digital inputs and STO 24 V DC 21...27 V), 1 MOhm 500 V DC for 1 minute to earth |
|---|
| Marking | CE |
|---|
| Variant | Standard version With braking chopper |
|---|
| Category | US1CP4E22276 |
|---|
| Data format | 8 bits, configurable odd, even or no parity |
|---|
| Noise level | 56 dB |
|---|
| Maximum THDI | <48 % from 80...100 % of load IEC 61000-3-12 |
|---|
| Exchange mode | Half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP |
|---|
| Option module | Slot A communication module Profibus DP V1 Slot A communication module PROFINET Slot A communication module DeviceNet Slot A communication module EtherCAT Slot A communication module CANopen daisy chain RJ45 Slot A communication module CANopen SUB-D 9 Slot A communication module CANopen screw terminals Slot A/slot B/slot C digital and analog I/O extension module Slot A/slot B/slot C output relay extension module Slot B 5/12 V digital encoder interface module Slot B analog encoder interface module Slot B resolver encoder interface module communication module Ethernet Powerlink |
|---|
| Assembly style | Enclosed |
|---|
| Regulation loop | Adjustable PID regulator |
|---|
| Transmission rate | 10, 100 Mbits 4.8 kbps 9600 bit/s 19200 bit/s |
|---|
| Device application | Industrial Application |
|---|
| Operating position | Vertical +/- 10 degree |
|---|
| Number of addresses | 1...247 |
|---|
| Product destination | Asynchronous motors Synchronous motors |
|---|
| Overvoltage category | III |
|---|
| Volume of cooling air | 27210.2 Gal/hr(US) (103 m3/h) |
|---|
| Environmental characteristic | Chemical pollution resistance class 3C3 IEC 60721-3-3 Dust pollution resistance class 3S3 IEC 60721-3-3 |
|---|
| Product specific application | Process for industrial |
|---|
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 |
|---|
| Ambient air transport temperature | -40...158 °F (-40...70 °C) |
|---|
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
|---|
| Ambient air temperature for operation | 5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor) |
|---|
| Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3 |
|---|
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
|---|
