Schneider Electric ATV950U07N4U

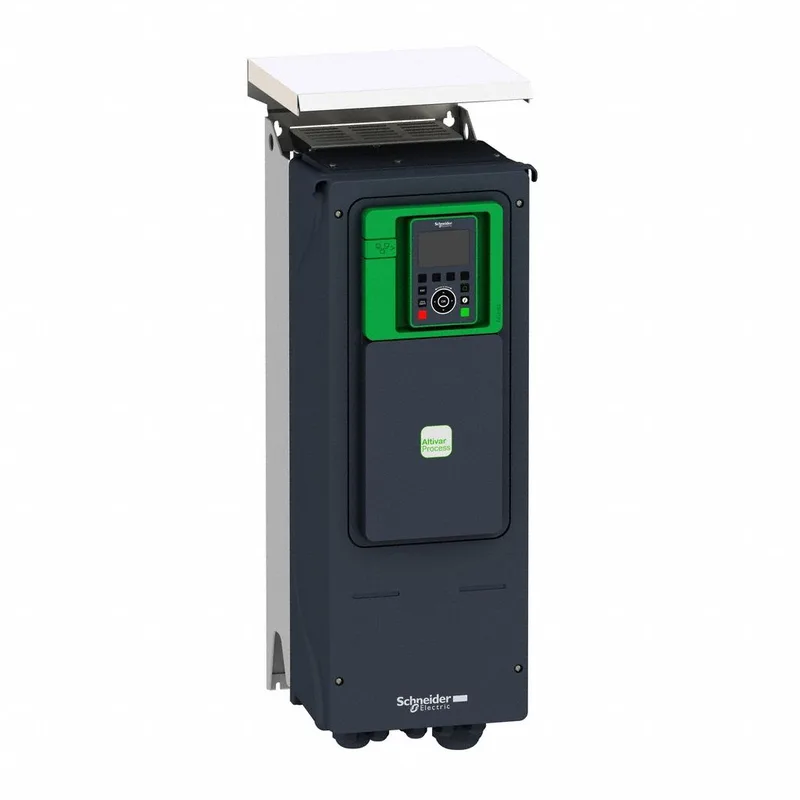

Schneider ATV950U07N4U Altivar Process Drive, 0.75 kW

MPNATV950U07N4U
Active

Schneider Electric Altivar Process ATV900 series, ATV950U07N4U, 3-phase, 380-480 V, 0.75 kW normal duty / 0.37 kW heavy duty, 2.2 A nominal output, IP55, with braking chopper and integrated EMC filter.

$1,675.00 – $3,355.51Ref. price · indicative, final on quote
Schneider Electric ATV950U07N4U datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ATV950U07N4U key specifications
ParameterValue
Range of productAltivar Process ATV900
Type of polarizationNo impedance
Product or component typeVariable speed drive
Supply voltage380...480 V
Relative symmetric mains voltage tolerance10 %
Nominal output current2.2 A
Continuous output current2.2 A 4 kHz normal duty 1.5 A 4 kHz heavy duty
Motor power0.75 kW normal duty 0.37 kW heavy duty
Relative symmetric network frequency tolerance5 %
Phases3 phase
IP ratingUL type 12
IP degree of protectionIP55

All specifications

ATV950U07N4U additional specifications
ParameterValue
Communication port protocolEtherNet/IP Modbus serial Modbus TCP
Mounting modeWall mount
Electrical connectionControl screw terminal 0.5...1.5 mm² AWG 20...AWG 16 DC bus screw terminal 2.5...6 mm² AWG 14...AWG 10 Motor screw terminal 4...6 mm² AWG 12...AWG 10 Line side screw terminal 4...6 mm² AWG 12...AWG 10
EMC filterIntegrated With EMC plate option
Pollution degree2
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m
Vibration resistance1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsUL 508C IEC 61800-3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
SupplyExternal supply for digital inputs 24 V DC 19...30 V), Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, Internal supply for digital inputs and STO 24 V DC 21...27 V), 1 MOhm 500 V DC for 1 minute to earth
MarkingCE
VariantStandard version With braking chopper
CategoryUS1CP4E22276
Data format8 bits, configurable odd, even or no parity
Noise level52 dB
Maximum THDI<48 % full load IEC 61000-3-12
Exchange modeHalf duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
Option moduleSlot A communication module Profibus DP V1 Slot A communication module PROFINET Slot A communication module DeviceNet Slot A communication module EtherCAT Slot A communication module CANopen daisy chain RJ45 Slot A communication module CANopen SUB-D 9 Slot A communication module CANopen screw terminals Slot A/slot B/slot C digital and analog I/O extension module Slot A/slot B/slot C output relay extension module Slot B 5/12 V digital encoder interface module Slot B analog encoder interface module Slot B resolver encoder interface module communication module Ethernet Powerlink
Assembly styleEnclosed
Regulation loopAdjustable PID regulator
Transmission rate10, 100 Mbits 4.8 kbps 9600 bit/s 19200 bit/s
Device applicationIndustrial Application
Operating positionVertical +/- 10 degree
Number of addresses1...247
Product destinationSynchronous motors Asynchronous motors
Overvoltage categoryIII
Environmental characteristicChemical pollution resistance class 3C3 IEC 60721-3-3 Dust pollution resistance class 3S3 IEC 60721-3-3
Product specific applicationProcess for industrial
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation5...104 °F (-15...40 °C) (without derating) 104...122 °F (40...50 °C) (with derating factor)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

Normal duty: 2.2 A at 4 kHz; heavy duty: 1.5 A at 4 kHz. Supply voltage range 380 to 480 V. Enclosure is IP55 / UL type 12, so it's happy in dust and splash areas like washdown zones or outdoor cabinets. Mount it vertical ±10°, keep ambient non-condensing humidity 5-95%, and altitude derating kicks in above 1000 m – 1% per 100 m up to 4800 m. Vibration rating: 1.5 mm p-p up to 13 Hz, then 1 g up to 200 Hz – fine for general industrial use, but skip this for high-shock applications over 15 g, 11 ms. Pollution degree 2 (non-conductive, occasional condensation) covers most controlled environments.

Integration notes

Three communication ports on board: EtherNet/IP, Modbus serial, and Modbus TCP – all active by default, no option card needed for basic fieldbus. For Profibus DP, PROFINET, DeviceNet, EtherCAT, CANopen, or Ethernet Powerlink, stick a module in slot A. Slot B/C take digital/analog I/O or relay extensions, and a dedicated encoder interface fits slot B. Control wiring lands on screw terminals 0.5-1.5 mm², power terminals 4-6 mm² for motor and line. DC bus terminals accept 2.5-6 mm². External 24 V DC supply for digital inputs (19-30 V) and STO (21-27 V); internal 10.5 V reference pot supply built in. Conforms to UL 508C and a stack of IEC standards including 61800-3 (EMC), 61508 (functional safety), and 13849-1. Category US1CP4E22276 covers compliance packaging.
