Schneider Electric AZ5DE007D
MPNAZ5DE007D
Obsolete

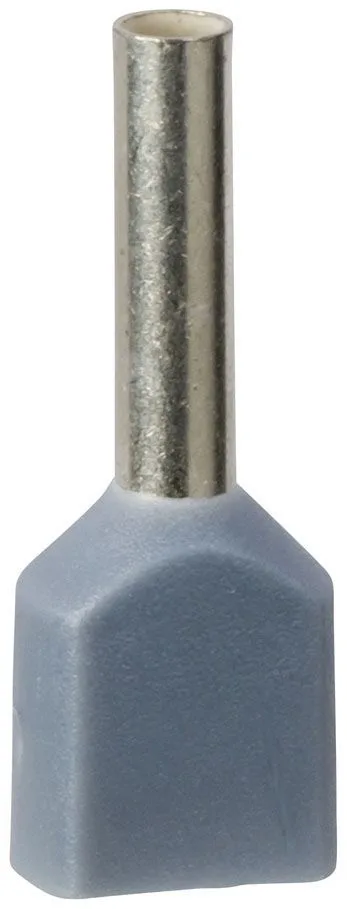

Square D AZ5DE007D Cable Ends|Square D AZ5DE007D Cable Ends
$0.32Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Cable end type | Twin conductor |
| Type of packing | Dispenser pack |
| Range of product | Linergy |
| Product or component type | Cable end |
| Cable end size | Medium |
| Number of cables | 2 |
| Cable cross section | 0.001 in² (0.75 mm²) |
| Color | Blue |
| Tube material | Copper ISO 1337 |
| Bezel material | Halogen-free plastic |
| Standards | DIN 46228-4 |
| Length | 0.6 in (15 mm) |
All specifications
| Parameter | Value |
|---|---|
| Category | US1000I22621 |
| AWG gauge | AWG 20 |
| Bezel size | Ø 2.8 x 5 mm |
| Tube length | 0.3 in (8 mm) |
| Tube diameter | 0.08 in (2 mm) |
| Quantity per set | 5 sets of 100 |
| Additional information | Without marker tag holder |
| Ambient air temperature for operation | -4...221 °F (-20...105 °C) |
MPN
AZ5DE007D
