Schneider Electric BCH0601O12A1C
MPNBCH0601O12A1C
Obsolete

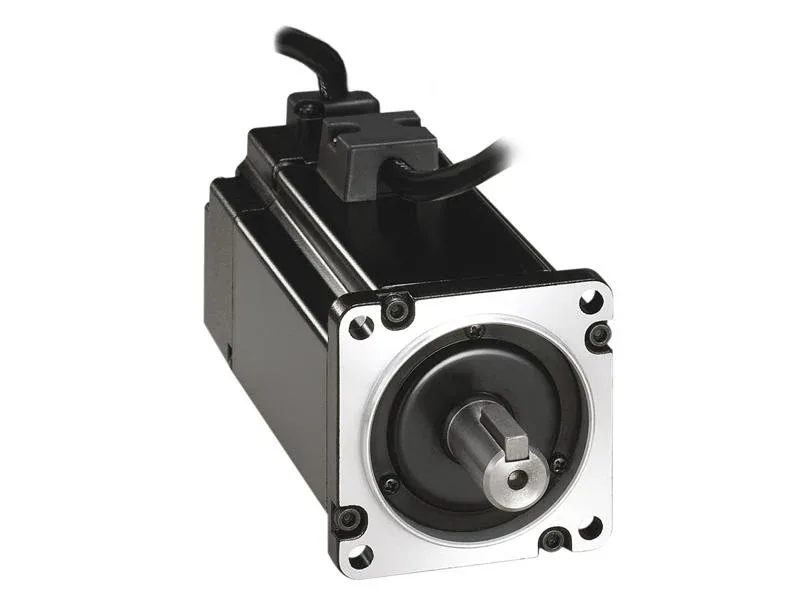

BCH0601O12A1C - SERVO MOTOR by SQUARE D
$1,446.31Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Feedback type | 20 bits incremental encoder |
| Type of cooling | Natural convection |
| Range of product | Lexium 23 Plus |
| Product or component type | Servo motor |
| Supply voltage | 220 V |
| Continuous stall current | 1.55 A |
| Continuous power | 0.2 kW |
| Brake pull-in power | 6.5 W |
| Network number of phases | Single phase |
| IP degree of protection | IP40 |
| Mounting support | Asian standard flange |
| Mounting holes diameter | 5.5 mm |
All specifications
| Parameter | Value |
|---|---|
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 70 mm |
| Key width | 5 mm |
| Product weight | 1.2 kg |
| Centring collar depth | 3 mm |
| Length | 105.5 mm |
| Shaft end | Keyed |
| Second shaft | Without second shaft end |
| Shaft length | 24 mm |
| Holding brake | Without |
| Rotor inertia | 0.177 kg.cm² |
| Shaft diameter | 14 mm |
| Torque constant | 0.41 N.m/A |
| Back emf constant | 17.4 V/krpm at 20 °C |
| Device short name | BCH |
| Motor flange size | 60 mm |
| Stator inductance | 24.14 mH at 20 °C |
| Stator resistance | 5.58 Ohm at 20 °C |
| Maximum axial force fa | 68 N |
| Number of motor stacks | 1 |
| Maximum radial force fr | 196 N |
| Centring collar diameter | 50 mm |
| Maximum mechanical speed | 5000 rpm |
| Distance shaft shoulder-flange | 24 mm |
| Stator electrical time constant | 4.3 ms at 20 °C |
| Ambient air temperature for operation | 0...40 °C |
MPN
BCH0601O12A1C
