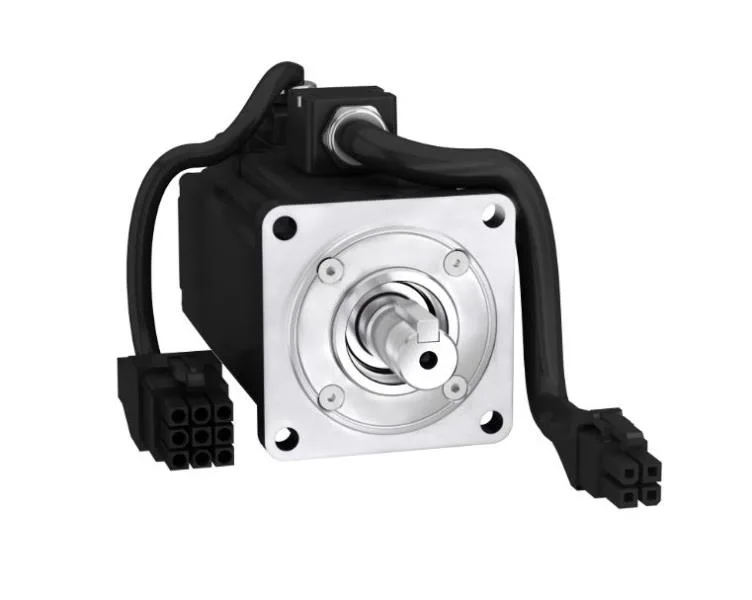

Schneider Electric BCH2LD0431CA5C
MPNBCH2LD0431CA5C
Active
Square D BCH2LD0431CA5C (Nri)|Square D BCH2LD0431CA5C (Nri)
$464.82 – $910.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Feedback type | 20 bits single turn absolute encoder |
| Type of cooling | Natural convection |
| Product or component type | Servo motor |
| Supply voltage | 220 V 110 V |
| Maximum current irms | 7.76 A LXM28... 0.4 kW, 220 V 7.76 A LXM28... 0.4 kW, 110 V |
| Continuous stall current | 2.19 A |
| Maximum permanent current | 2.5 A |
| Continuous power | 400 W |
| Brake pull-in power | 11.2 W |
| Nominal output power | 400 W LXM28... 2.6 A, 220 V, single phase 400 W LXM28... 2.6 A, 220 V, three phase 400 W LXM28... 5.7 A, 110 V, single phase |
| Number of motor poles | 4.0 |
| Phases | Single phase Three phase |
All specifications
| Parameter | Value |
|---|---|
| Network number of phases | 1 |
| IP degree of protection | IP54 IM B5, IM V1 IP50 IM V3 |
| Mounting support | Asian standard flange |
| Mounting holes diameter | 0.2 in (5.5 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 2.8 in (70 mm) |
| Electrical connection | Free lead |
| Key width | 0.2 in (5 mm) |
| Centring collar depth | 0.2 in (5.5 mm) |
| Length | 5.08 in (129 mm) |
| Inertia | 0.0 kg.cm² of brake 0.26 kg.cm² of motor |
| Category | US1PC5318281 |
| Shaft end | Keyed |
| Shaft length | 1.2 in (30 mm) |
| Holding brake | Without |
| Nominal speed | 3000 rpm LXM28... 2.6 A, 220 V, single phase 3000 rpm LXM28... 2.6 A, 220 V, three phase 3000 rpm LXM28... 5.7 A, 110 V, single phase |
| Rotor inertia | 0.27 kg.cm² |
| Nominal torque | 11.24 lbf.in (1.27 N.m) LXM28... 2.6 A, 220 V, single phase 11.24 lbf.in (1.27 N.m) LXM28... 2.6 A, 220 V, three phase 11.24 lbf.in (1.27 N.m) LXM28... 5.7 A, 110 V, single phase |
| Shaft diameter | 0.6 in (14 mm) |
| Torque constant | 0.58 N.m/A 68 °F (20 °C) |
| Sizing reference | BCH2 |
| Back emf constant | 35 V/krpm 68 °F (20 °C) |
| Device short name | BCH2 |
| Motor flange size | 2.4 in (60 mm) |
| Peak stall torque | 33.72 lbf.in (3.81 N.m) LXM28... 2.6 A, 220 V, single phase 33.72 lbf.in (3.81 N.m) LXM28... 2.6 A, 220 V, three phase 33.72 lbf.in (3.81 N.m) LXM28... 5.7 A, 110 V, single phase |
| Stator inductance | 12.0 mH 68 °F (20 °C) |
| Stator resistance | 5.2 Ohm 68 °F (20 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
| Maximum axial force fa | 70 N |
| Number of motor stacks | 2 |
| Temperature copper hot | 275 °F (135 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Continuous stall torque | 11.24 lbf.in (1.27 N.m) LXM28 2.6 A, 220 V, single phase 11.24 lbf.in (1.27 N.m) LXM28 2.6 A, 220 V, three phase 11.24 lbf.in (1.27 N.m) LXM28 5.7 A, 110 V, single phase |
| Maximum radial force fr | 200 N 3000 rpm |
| Accuracy error [angular] | 0.044 ° |
| Centring collar diameter | 2.0 in (50 mm) |
| Maximum mechanical speed | 5000 rpm |
| Distance shaft shoulder-flange | 0.2 in (5.5 mm) |
| Stator electrical time constant | 2.31 ms 68 °F (20 °C) |
| Ambient air temperature for operation | -4...104 °F (-20...40 °C) |
