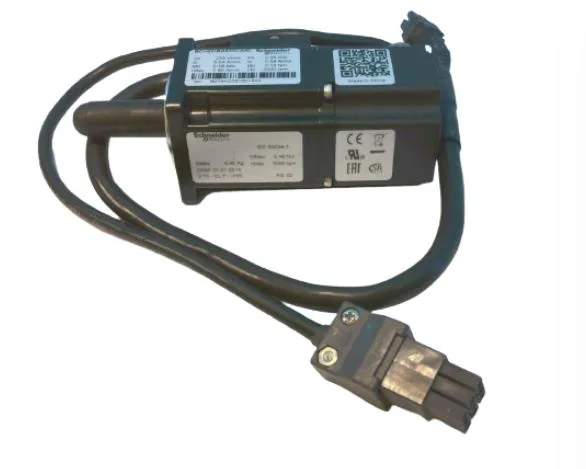

BCH2MBA533CA5C - LEXIUM 28 by SQUARE D
$256.54Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Feedback type | 20 bits single turn absolute encoder |
| Type of cooling | Natural convection |
| Product or component type | Servo motor |
| Supply voltage | 220 V 110 V |
| Maximum current irms | 1.77 A LXM28... 0.05 kW, 220 V 1.77 A LXM28... 0.05 kW, 110 V |
| Continuous stall current | 0.54 A |
| Maximum permanent current | 0.59 A |
| Continuous power | 50 W |
| Brake pull-in power | 4.35 W |
| Nominal output power | 50 W LXM26D 0.64 A, 220 V, single phase 50 W LXM26D 0.64 A, 220 V, three phase 50 W LXM28... 0.64 A, 220 V, single phase 50 W LXM28... 0.64 A, 220 V, three phase 50 W LXM28... 1.2 A, 110 V, single phase |
| Number of motor poles | 4.0 |
| Phases | Three phase Single phase |
All specifications
| Parameter | Value |
|---|---|
| Network number of phases | 1 |
| IP degree of protection | IP50 IM V3 IP65 IM B5, IM V1 |
| Mounting support | Asian standard flange |
| Mounting holes diameter | 0.2 in (4.5 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 1.8 in (46 mm) |
| Electrical connection | Free lead |
| Key width | 0.1 in (3 mm) |
| Centring collar depth | 0.1 in (3 mm) |
| Length | 3.2 in (82 mm) |
| Inertia | 0.0 kg.cm² of brake 0.044 kg.cm² of motor |
| Category | US1PC5318281 |
| Shaft end | Keyed |
| Shaft length | 1.0 in (25 mm) |
| Holding brake | Without |
| Nominal speed | 3000 rpm LXM26D 0.64 A, 220 V, single phase 3000 rpm LXM26D 0.64 A, 220 V, three phase 3000 rpm LXM28... 0.64 A, 220 V, single phase 3000 rpm LXM28... 0.64 A, 220 V, three phase 3000 rpm LXM28... 1.2 A, 110 V, single phase |
| Rotor inertia | 0.054 kg.cm² |
| Nominal torque | 1.42 lbf.in (0.16 N.m) LXM26D 0.64 A, 220 V, single phase 1.42 lbf.in (0.16 N.m) LXM26D 0.64 A, 220 V, three phase 1.42 lbf.in (0.16 N.m) LXM28... 0.64 A, 220 V, single phase 1.42 lbf.in (0.16 N.m) LXM28... 0.64 A, 220 V, three phase 1.42 lbf.in (0.16 N.m) LXM28... 1.2 A, 110 V, single phase |
| Shaft diameter | 0.3 in (8 mm) |
| Torque constant | 0.3 N.m/A 68 °F (20 °C) |
| Sizing reference | BCH2 |
| Back emf constant | 18 V/krpm 68 °F (20 °C) |
| Device short name | BCH2 |
| Motor flange size | 1.6 in (40 mm) |
| Peak stall torque | 4.25 lbf.in (0.48 N.m) LXM26D 0.64 A, 220 V, single phase 4.25 lbf.in (0.48 N.m) LXM26D 0.64 A, 220 V, three phase 4.25 lbf.in (0.48 N.m) LXM28... 0.64 A, 220 V, single phase 4.25 lbf.in (0.48 N.m) LXM28... 0.64 A, 220 V, three phase 4.25 lbf.in (0.48 N.m) LXM28... 1.2 A, 110 V, single phase |
| Stator inductance | 24.7 mH 68 °F (20 °C) |
| Stator resistance | 31 Ohm 68 °F (20 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
| Maximum axial force fa | 40 N |
| Number of motor stacks | 1 |
| Temperature copper hot | 275 °F (135 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Continuous stall torque | 1.42 lbf.in (0.16 N.m) LXM26D 0.64 A, 220 V, single phase 1.42 lbf.in (0.16 N.m) LXM26D 0.64 A, 220 V, three phase 1.42 lbf.in (0.16 N.m) LXM28 0.64 A, 220 V, single phase 1.42 lbf.in (0.16 N.m) LXM28 0.64 A, 220 V, three phase 1.42 lbf.in (0.16 N.m) LXM28 1.2 A, 110 V, single phase |
| Maximum radial force fr | 85 N 3000 rpm |
| Accuracy error [angular] | 0.044 ° |
| Centring collar diameter | 1.2 in (30 mm) |
| Maximum mechanical speed | 5000 rpm |
| Distance shaft shoulder-flange | 0.1 in (3 mm) |
| Stator electrical time constant | 0.8 ms 68 °F (20 °C) |
| Ambient air temperature for operation | -4...104 °F (-20...40 °C) |
