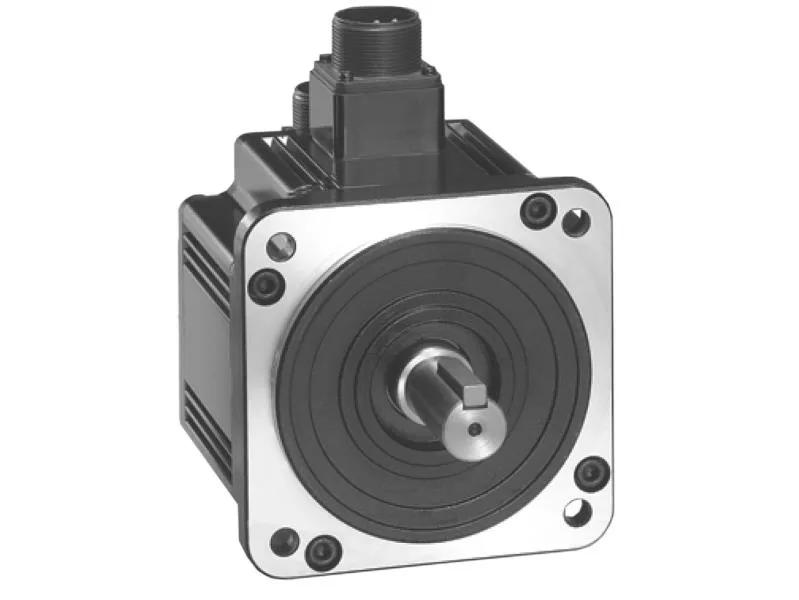

Schneider Electric BCH2MM2023CA6C
MPNBCH2MM2023CA6C
Active
Square D BCH2MM2023CA6C 2000Rpm Motor|Square D BCH2MM2023CA6C 2000Rpm Motor
$554.99 – $1,485.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Feedback type | 20 bits single turn absolute encoder |
| Type of cooling | Natural convection |
| Product or component type | Servo motor |
| Supply voltage | 220 V |
| Maximum current irms | 32.85 A LXM28 2 kW, 220 V 32.85 A 2 kW, 220 V |
| Continuous stall current | 9.95 A |
| Maximum permanent current | 11.25 A |
| Continuous power | 2000 W |
| Brake pull-in power | 19.7 W |
| Nominal output power | 2000 W LXM26D 12 A, 220 V, three phase 2000 W LXM28 12 A, 220 V, three phase 2000 W |
| Number of motor poles | 5.0 |
| Phases | Three phase |
All specifications
| Parameter | Value |
|---|---|
| Network number of phases | 3 |
| IP degree of protection | IP50 IM V3 IP65 IM B5, IM V1 |
| Mounting support | Asian standard flange |
| Mounting holes diameter | 0.4 in (9.2 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 5.7 in (145 mm) |
| Electrical connection | Connector MIL |
| Key width | 0.3 in (8 mm) |
| Centring collar depth | 0.3 in (8 mm) |
| Length | 7.4 in (187 mm) |
| Inertia | 0.0 kg.cm² of brake 13.49 kg.cm² of motor |
| Category | US1PC5318281 |
| Shaft end | Keyed |
| Shaft length | 2.2 in (55 mm) |
| Holding brake | Without |
| Nominal speed | 2000 rpm 2000 rpm LXM26D 12 A, 220 V, three phase 2000 rpm LXM28 12 A, 220 V, three phase |
| Rotor inertia | 13.5 kg.cm² |
| Nominal torque | 84.52 lbf.in (9.55 N.m) LXM26D 12 A, 220 V, three phase 84.52 lbf.in (9.55 N.m) LXM28 12 A, 220 V, three phase 84.52 lbf.in (9.55 N.m) |
| Shaft diameter | 0.9 in (22 mm) |
| Torque constant | 0.96 N.m/A 68 °F (20 °C) |
| Sizing reference | BCH2 |
| Back emf constant | 58 V/krpm 68 °F (20 °C) |
| Device short name | BCH2 |
| Motor flange size | 5.1 in (130 mm) |
| Peak stall torque | 253.57 lbf.in (28.65 N.m) LXM26D 12 A, 220 V, three phase 253.57 lbf.in (28.65 N.m) LXM28 12 A, 220 V, three phase 253.57 lbf.in (28.65 N.m) |
| Stator inductance | 4.3 mH 68 °F (20 °C) |
| Stator resistance | 0.34 Ohm 68 °F (20 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
| Maximum axial force fa | 200 N |
| Number of motor stacks | 4 |
| Temperature copper hot | 275 °F (135 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Continuous stall torque | 84.52 lbf.in (9.55 N.m) LXM26D 12 A, 220 V, three phase 84.52 lbf.in (9.55 N.m) LXM28 12 A, 220 V, three phase 84.52 lbf.in (9.55 N.m) |
| Maximum radial force fr | 670 N 2000 rpm |
| Accuracy error [angular] | 0.044 ° |
| Centring collar diameter | 4.3 in (110 mm) |
| Maximum mechanical speed | 3000 rpm |
| Distance shaft shoulder-flange | 0.3 in (8 mm) |
| Stator electrical time constant | 13.24 ms 68 °F (20 °C) |
| Ambient air temperature for operation | -4...104 °F (-20...40 °C) |
MPN
BCH2MM2023CA6C
