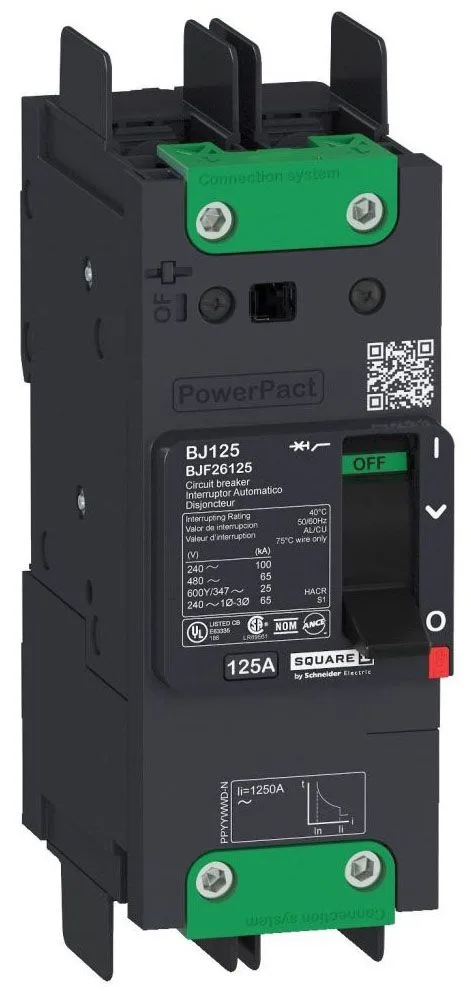

Schneider Electric BJF26050
MPNBJF26050
Active
Square D BJF26050 Molded Case Circuit|Square D BJF26050 Molded Case Circuit
$765.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Product or component type | Circuit breaker |
| Voltage | 800 V IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz UL 489 |
| [Uimp] rated impulse withstand voltage | 8 kV IEC 60947-2 |
| Breaking capacity | 100 kA 208Y/120 V AC 50/60 Hz UL 489 100 kA 240 V AC 50/60 Hz UL 489 65 kA 480/277 V AC 50/60 Hz UL 489 65 kA 480 V AC 50/60 Hz UL 489 25 kA 600Y/347 V AC 50/60 Hz UL 489 50 kA 250 V DC UL 489 |
| Line rated current | 50 A |
| Breaking capacity code | J |
| Continuous current rating | 80 % |
| [Ics] rated service breaking capacity | 100 kA 220...240 V AC 50/60 Hz IEC 60947-2 25 kA 500...525 V AC 50/60 Hz IEC 60947-2 2.5 kA 690 V AC 50/60 Hz IEC 60947-2 65 kA 380...415 V AC 50/60 Hz IEC 60947-2 65 kA 440 V AC 50/60 Hz IEC 60947-2 |
| Power wire stripping length | 0.8 in (20 mm) |
| Network frequency | 50/60 Hz |
All specifications
| Parameter | Value |
|---|---|
| Poles | 2P |
| Protected poles description | 2t |
| Utilisation category | Category A |
| IK degree of protection | IK07 conforming to IEC 62262 |
| IP degree of protection | Front cover IP40 IEC 60529 |
| Mounting mode | Clip-on 35 mm symmetrical DIN rail) By screws plate) |
| Connection pitch | 1.06 in (27 mm) |
| Electrical connection | Terminal nut, ON and OFF end |
| Pollution degree | 3 IEC 60947-1 |
| Operating altitude | 6561.68 ft (2000 m) without derating 5000 m with derating |
| Color | Gray RAL 7016) |
| Depth | 3.1 in (80 mm) |
| Width | 2.1 in (54 mm) |
| Height | 5.4 in (137 mm) |
| Electrical durability | 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In |
| Mechanical durability | 15000 cycles IEC 947-1 Annex K ed 5.2 |
| Standards | GB 14048.2 CSA C22.2 No 5 UL 489 NMX J-266 EN/IEC 60947-2 NEMA AB1 EN/IEC 60947-5-1 |
| Range | PowerPact |
| Category | US10DE201132 |
| AWG gauge | AWG 14...AWG 8 aluminium/copper AWG 6...AWG 3/0 aluminium/copper |
| 9 mm pitches | 6 |
| Quality labels | CE |
| Trip unit name | TM-D |
| Number of slots | 1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in) |
| Local signalling | Presence of auxiliary contacts flag green) |
| Quantity per set | Set of 1 |
| Device short name | BJ 050 |
| Tightening torque | 44.3 lbf.in (5 N.m) 0.004...0.02 in² (2.5...16 mm²) (AWG 14...AWG 4) 79.7 lbf.in (9 N.m) 0.04...0.1 in² (25...95 mm²) (AWG 3...AWG 3/0) |
| Device application | Distribution |
| Trip unit technology | Thermal-magneticTM-D, |
| Suitability for isolation | Yes IEC 60947-2 |
| Circuit breaker application | HACR rated |
| Ambient air temperature for storage | -58...185 °F (-50...85 °C) |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
MPN
BJF26050
