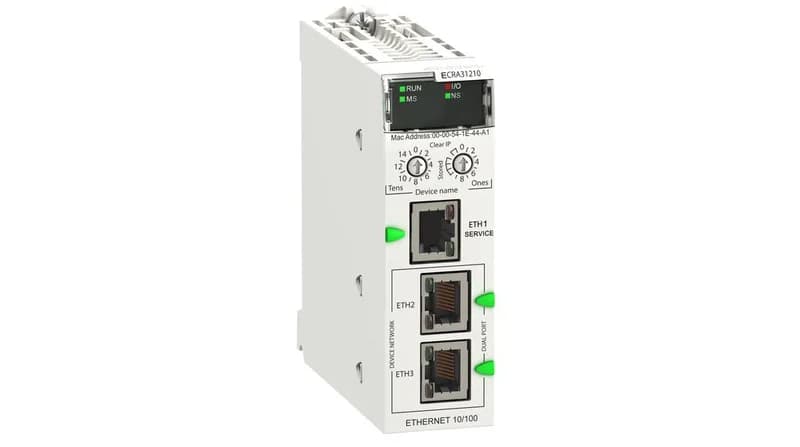

Schneider Electric BMECRA31210

Schneider BMECRA31210 Modicon X80 remote I/O adapter, 3 RJ45

MPNBMECRA31210
Active

Schneider Electric Modicon X80 BMECRA31210 remote I/O drop adapter, 3 RJ45 ports, 10/100BASE-TX, ring topology, 1.8 A switching current, IP20, rack-mounted.

$604.52 – $1,224.00Ref. price · indicative, final on quote
Schneider Electric BMECRA31210 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMECRA31210 key specifications
ParameterValue
ProtocolBus X across the remote backplane Ethernet across the remote backplane
Connector type3 RJ45
Range of productModicon X80
Product or component typeI/O expansion module
Communication network typeIPv4 (internet protocol)
Integrated connection type1 port for service or distributed equipment 2 port for Ethernet RIO Network (RSTP)
Input voltage3.3 V DC
Current consumption1800 mA
IP degree of protectionIP20
Communication serviceEthernet/IP adapter RSTP (Ring topology support) Ethernet RIO network Quality of Service (QoS) CIP Explicit messaging (server) Modbus TCP server for module diagnostics DHCP client TFTP client FTP client FDR client SNTP client SNMP agent
Communication port protocolEtherNet/IP
Mounting modeRack-mounted

All specifications

BMECRA31210 additional specifications
ParameterValue
Relative humidity95 % without condensation
Operating altitude<= 2000 m
Maximum altitude transport3000 m
Depth87.5 mm
Width32 mm
Height100 mm
StandardsIEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 IEC 61000-6-5, interface type 1 and type 2 IEC 61850-3, location G
TopologyRing
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Fixing modeBy screws
CybersecurityEnable/disable communication ports Syslog protocol support
Exchange modeHalf duplex, full duplex, autonegotiation, auto MDIX
Module formatStandard
Port ethernet10/100BASE-TX
Data recording10 ms time stamps
Number of port3
Local signalling1 LED (green) for module active (RUN) 1 LED (red) for module error (ERR) 1 LED (green/red) for module status (Mod Status) 1 LED (green/red) for network communication status (Net Status) 1 LED (green) for Ethernet link diagnostics (STS)
Transmission rate10/100 Mbit/s
Device applicationX80 Ethernet RIO drop adaptor
Function availableCCOTF (configuration change on the fly) Input data is collected and published to the remote I/O head adaptor Output modules are updated with the data received from remote I/O head adaptor Diagnostics for remote I/O devices (Device DDT) Port mirroring System time stamping Non-interfering type 1 I/O extension rack
Environmental characteristicStandard environment
Product specific applicationFor remote I/O modules
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation0...60 °C

Product details

Overview

The BMECRA31210 is a Modicon X80 Ethernet RIO drop adapter that provides three RJ45 ports for ring or star topology remote I/O networks, switching at 1.8 A and supporting 10/100 Mbit/s with half/full duplex and auto MDIX. It carries IEC 61131-2, UL 61010-2-201, and IEC 61850-3 compliance, making it suitable for substation and industrial control environments.

The BMECRA31210 adds a third RJ45 port and Ethernet across the remote backplane compared to the BMXCRA31200, which has two ports and only Bus X across the backplane. The switching current is also higher at 1.8 A versus 1.2 A, giving the BMECRA31210 more headroom for powering downstream modules.

The BMECRA31210 is an active catalog item in the Modicon X80 range; lead time is confirmed per RFQ, and no obsolescence notice is recorded.
