Schneider Electric BMEP581020H

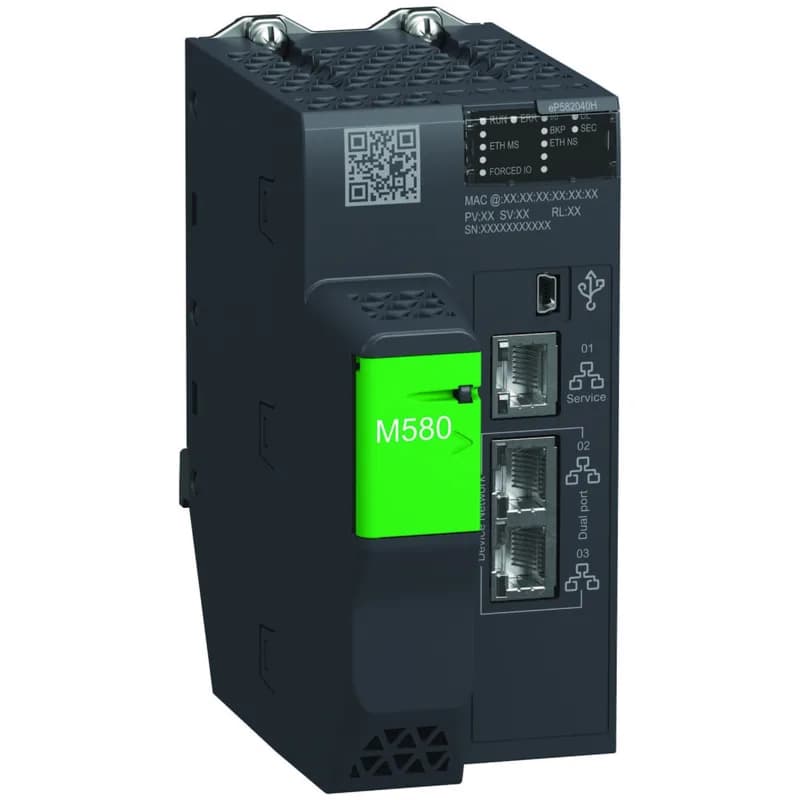

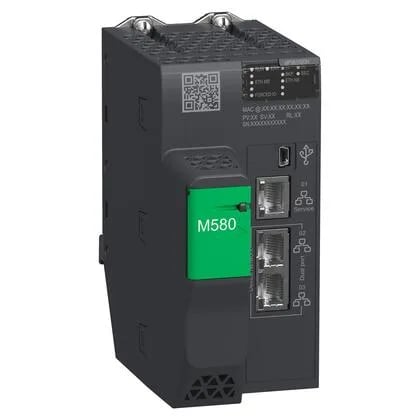

Schneider BMEP581020H M580 CPU Level 10 DIO Hardened

MPNBMEP581020H
Active

Schneider Modicon M580 CPU Level 10 DIO Hardened, BMEP581020H, 270 mA at 24 V DC, IP20, conformal coating, -25 to 70 °C operating.

$1,666.24Ref. price · indicative, final on quote
Schneider Electric BMEP581020H datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMEP581020H key specifications
ParameterValue
Range of productModicon M580
Product or component typeProcessor module
Integrated connection type1 Ethernet TCP/IP service port 2 Ethernet TCP/IP device network USB type mini B
Current consumption270 mA 24 V DC
IP degree of protectionIP20
Communication serviceDIO scanner
Communication module processor capacity2 Ethernet communication module 2 AS-Interface module
Shock resistance30 gn
Relative humidity5...95 % 131 °F (55 °C) without condensation
Operating altitude0...6561.68 ft (0...2000 m) 2000...5000 m with derating factor
Vibration resistance3 gn
MTBF reliability775000 H

All specifications

BMEP581020H additional specifications
ParameterValue
StandardsIEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G IEC 60079-0
Compliance (Compliance)TAA BAA via COTS
ChecksProcess control
SupplyInternal power supply via rack
MarkingCE
CategoryUS1PC3418161
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2014/34/EU - ATEX directive
Status LED1 LED (Green) processor running (RUN) 1 LED (Red) processor or system fault (ERR) 1 LED (Red) I/O module fault (I/O) 1 LED (Green) download in progress (DL) 1 LED (Red) memory card or CPU flash fault (BACKUP) 1 LED (green/red) ETH MS (Ethernet port configuration status) 1 LED (green/red) Eth NS (Ethernet network status)
Number of racks4
Control channelsProgrammable loops
Memory descriptionIntegrated RAM, 4 MB program Integrated RAM, 384 kB data Expandable flash, 4 GB data storage Integrated RAM, 10 kB system memory
Protective treatmentConformal coating
Application structure1 cyclic/periodic master task 64 event tasks 1 periodic fast task 2 auxiliary tasks
Application specific i (O)Serial link Counter Accurate time stamping Motion control SSI encoder HART
Environmental characteristicGas resistant class Gx ISA S71.04 Gas resistant class 3C4 IEC 60721-3-3 Dust resistant class 3S4 IEC 60721-3-3 Sand resistant class 3S4 IEC 60721-3-3 Salt resistant level 2 IEC 68252 Mold growth resistant class 3B2 IEC 60721-3-3 Fungal spore resistant class 3B2 IEC 60721-3-3 Hazardous location class I division 2
Product specific applicationFor severe environments
Number of instructions per30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic 40 Kinst/ms 100 % Boolean
Number of distributed equipment64
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Ambient air temperature for operation-13...158 °F (-25...70 °C)
Number of application specific channel (local rack)36

Product details

CPU for Severe-Environment Process Control

The Schneider BMEP581020H is a Modicon M580 processor module classified for process control. It draws 270 mA at 24 V DC from the rack backplane, eliminating the need for a separate power supply. The module is built for severe environments: conformal coating, gas resistance class Gx per ISA S71.04, and hazardous location Class I Division 2 approval. Operating temperature spans -25 to 70 °C with 30 gn shock and 3 gn vibration tolerance.

Compliance and Standards – Audit-Ready Documentation

For audit purposes, this CPU carries full compliance with IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, and EN/IEC 61850-3. It also meets the ATEX Directive 2014/34/EU, Low Voltage Directive 2014/35/EU, and EMC Directive 2014/30/EU. Environmental resistance covers gas (3C4), dust (3S4), salt (level 2), and fungal spores (3B2) per IEC 60721-3-3. This documentation supports tender submissions where each claimed standard must be evidenced on the datasheet.

Application Fit

The module hosts a DIO scanner and supports up to 64 distributed devices, 36 local application-specific channels, and 4 racks. It runs a single cyclic/periodic master task plus up to 64 event tasks and one fast periodic task. Integrated connections include two Ethernet TCP/IP device network ports, one service port, and a USB mini-B. The IP20 enclosure suits cabinet mounting; use in hazardous locations requires compliance with the installation conditions per the ATEX certificate.
