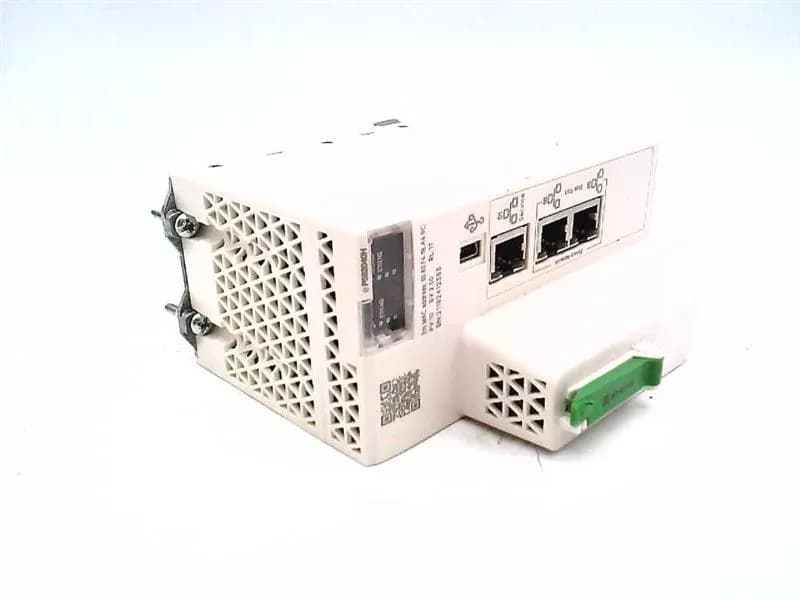

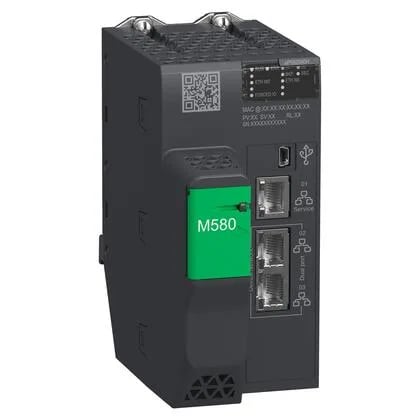

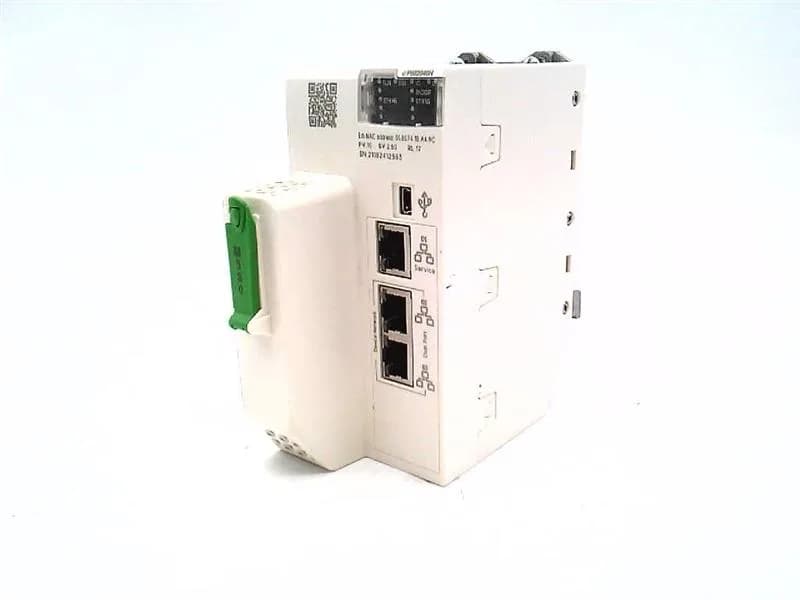

Schneider BMEP582040H Modicon M580 Processor
MPNBMEP582040H
Active
Processor, Standalone, Modicon M580, 8 MB, 61 Devices, 8 Remote IO Racks X80, Severe Environment|Processor, Standalone, Modicon M580, 8 MB, 61 Ethernet Devices, 8 Remote IO Racks of X80, For Severe Environment
$2,519.68Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon M580 |
| Product or component type | Processor module |
| Integrated connection type | 1 Ethernet TCP/IP service port 2 Ethernet TCP/IP device network USB type mini B |
| Current consumption | 270 mA 24 V DC |
| IP degree of protection | IP20 |
| Communication service | RIO scanner DIO scanner |
| Communication module processor capacity | 2 Ethernet communication module 16 AS-Interface module |
| Shock resistance | 30 gn |
| Relative humidity | 5...95 % 131 °F (55 °C) without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) 2000...5000 m with derating factor |
| Vibration resistance | 3 gn |
| MTBF reliability | 775000 H |
All specifications
| Parameter | Value |
|---|---|
| Standards | IEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G IEC 60079-0 |
| Compliance (Compliance) | TAA BAA via COTS |
| Checks | Process control |
| Supply | Internal power supply via rack |
| Marking | CE |
| Category | US1PC3418161 |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2014/34/EU - ATEX directive |
| Status LED | 1 LED (Green) processor running (RUN) 1 LED (Red) processor or system fault (ERR) 1 LED (Red) I/O module fault (I/O) 1 LED (Green) download in progress (DL) 1 LED (Red) memory card or CPU flash fault (BACKUP) 1 LED (green/red) ETH MS (Ethernet port configuration status) 1 LED (green/red) Eth NS (Ethernet network status) |
| Number of racks | 4 |
| Control channels | Programmable loops |
| Memory description | Expandable flash, 4 GB data storage Integrated RAM, 10 kB system memory Integrated RAM, 8 MB program Integrated RAM, 768 kB data |
| Protective treatment | Conformal coating |
| Application structure | 1 periodic fast task 64 event tasks 1 cyclic/periodic master task 2 auxiliary tasks |
| Application specific i (O) | Counter HART SSI encoder Accurate time stamping Motion control Serial link |
| Environmental characteristic | Gas resistant class Gx ISA S71.04 Gas resistant class 3C4 IEC 60721-3-3 Dust resistant class 3S4 IEC 60721-3-3 Sand resistant class 3S4 IEC 60721-3-3 Salt resistant level 2 IEC 68252 Mold growth resistant class 3B2 IEC 60721-3-3 Fungal spore resistant class 3B2 IEC 60721-3-3 Hazardous location class I division 2 |
| Number of remote i (O station) | 8 - 2 remote drop |
| Product specific application | For severe environments |
| Number of instructions per | 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic 40 Kinst/ms 100 % Boolean |
| Number of distributed equipment | 64 |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
| Number of application specific channel (local rack) | 72 |
MPN
BMEP582040H
