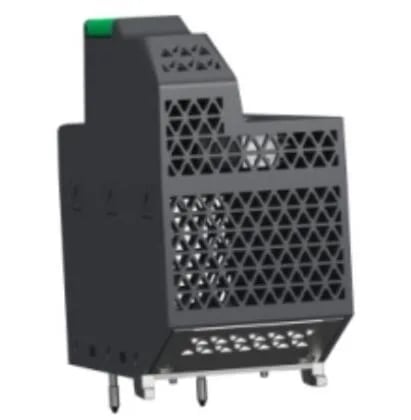

Schneider Electric BMEP584040

BMEP584040 Modicon M580 Processor Module, Active, 775kH MTBF

MPNBMEP584040
Active

Modicon M580 processor module, BMEP584040, Level 4 remote, 8 rack, 144 channels, 295 mA at 24 VDC, active production, 775000 h MTBF.

$2,815.56Ref. price · indicative, final on quote
Schneider Electric BMEP584040 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMEP584040 key specifications
ParameterValue
Range of productModicon M580
Product or component typeProcessor module
Integrated connection type1 Ethernet TCP/IP service port 2 Ethernet TCP/IP device network USB type mini B
Current consumption295 mA 24 V DC
IP degree of protectionIP20
Communication serviceRIO scanner DIO scanner
Communication module processor capacity16 AS-Interface module 4 Ethernet communication module
Shock resistance30 gn
Relative humidity5...95 % 131 °F (55 °C) without condensation
Operating altitude0...6561.68 ft (0...2000 m) 2000...5000 m with derating factor
Vibration resistance3 gn
MTBF reliability775000 H

All specifications

BMEP584040 additional specifications
ParameterValue
StandardsIEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G
Compliance (Compliance)TAA BAA via COTS
ChecksProcess control
SupplyInternal power supply via rack
MarkingCE
CategoryUS1PC3418161
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Status LED1 LED (Green) processor running (RUN) 1 LED (Red) processor or system fault (ERR) 1 LED (Red) I/O module fault (I/O) 1 LED (Green) download in progress (DL) 1 LED (Red) memory card or CPU flash fault (BACKUP) 1 LED (green/red) ETH MS (Ethernet port configuration status) 1 LED (green/red) Eth NS (Ethernet network status)
CybersecurityAchilles certified DoS prevention IPSec SNMP logging Syslog protocol support Transport layer security Audit trail Embedded firewall Firmware signature Password protection Port hardening Secure communication (HTTPS) Security log
Number of racks8
Control channelsProgrammable loops
Memory descriptionExpandable flash, 4 GB data storage Integrated RAM, 10 kB system memory Integrated RAM, 16 MB program Integrated RAM, 2048 kB data
Application structure2 auxiliary tasks 1 cyclic/periodic master task 1 periodic fast task 128 event tasks
Application specific i (O)Counter SSI encoder Motion control Accurate time stamping HART Serial link
Environmental characteristicHazardous location class I division 2
Number of remote i (O station)16 - 2 remote drop
Number of instructions per30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic 40 Kinst/ms 100 % Boolean
Number of distributed equipment64
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Ambient air temperature for operation32...140 °F (0...60 °C)
Number of application specific channel (local rack)144

Product details

The BMEP584040 is a Modicon M580 processor module for remote racks, rated for Process control and drawing 295 mA from the rack backplane, with MTBF 775000 hours, shock 30 gn, vibration 3 gn. It supports 8 racks and 144 channels, with integrated Ethernet for RIO and DIO scanners.

Compliance and cybersecurity posture

Compliance package covers IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, and IACS. The module carries CE marking per low-voltage and EMC directives. For substation or power-grid integration, it meets EN/IEC 61850-3 at location G and includes cybersecurity features: Achilles certification, IPSec, SNMP logging, audit trail, and an embedded firewall. Hazardous location Class I Division 2 is covered as well.

Operates from 0 to 60 °C ambient, stores from -40 to 85 °C. Relative humidity range 5-95 % at 55 °C without condensation. Altitude derating above 2000 m. Rated IP20, so install inside a clean enclosure with no direct exposure to dust or moisture. Shock and vibration limits (30 gn / 3 gn) mean it can ride out moderate mechanical stress in panel-mounted applications.

Frequently asked questions

What are the key ratings for the BMEP584040?

It is rated for Process control, MTBF 775000 hours, draws 295 mA from the rack backplane, and supports up to 8 racks with 144 application-specific channels. Shock resistance is 30 gn, vibration 3 gn, and it operates from 0 to 60 °C.

What compliance documentation does the BMEP584040 carry?

The module meets IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, and IACS. It is CE marked per the low-voltage and EMC directives, and includes cybersecurity certifications such as Achilles.

What is the supply voltage requirement?

The BMEP584040 is powered internally via the rack backplane and draws 295 mA at 24 V DC.

What is the application structure of this processor?

It supports 1 cyclic/periodic master task, 1 periodic fast task, 2 auxiliary tasks, and up to 128 event tasks. Memory includes 16 MB program and 2048 kB data, plus 4 GB data storage on expandable flash.
