Schneider Electric BMEXBP1002H

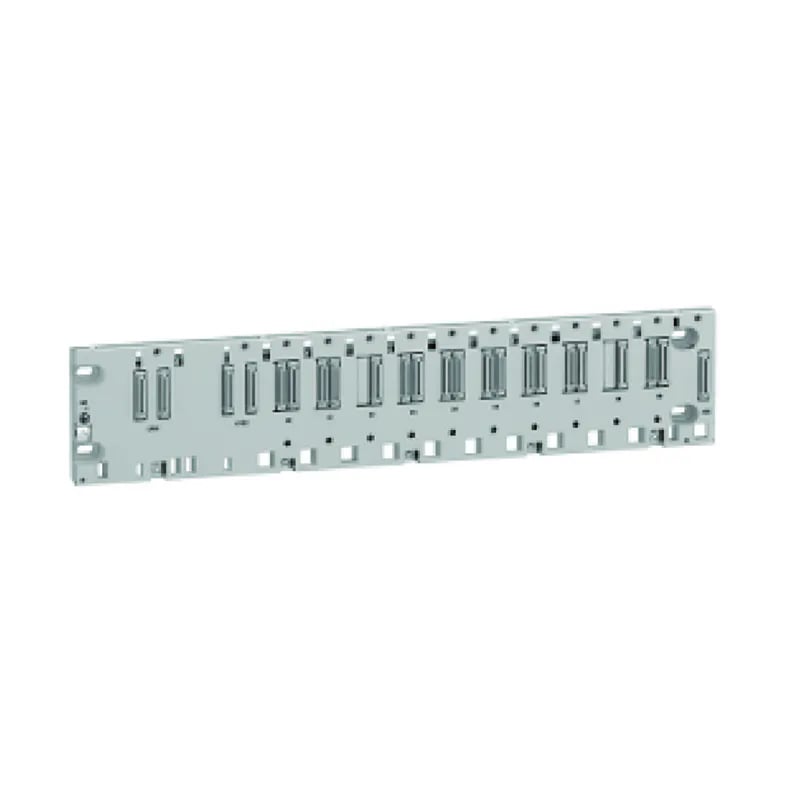

Schneider BMEXBP1002H Modicon X80 Ruggedized Rack, 10 Slots

MPNBMEXBP1002H
Active

Schneider Electric BMEXBP1002H Modicon X80 ruggedized rack, 10 slots (8 bus X + 2 Ethernet), conformal coated, IP20, -25...70 °C, ATEX.

$576.58 – $1,618.00Ref. price · indicative, final on quote
Schneider Electric BMEXBP1002H datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMEXBP1002H specifications
ParameterValue
Range of productModicon X80
Accessory (separate part type)Ruggedized rack
Current consumption162 mA at 24 V DC 76 mA at 3.3 V DC
Power consumption in251 mW 3.3 V DC 3.9 W 24 V DC
IP degree of protectionIP20
Electrical connection1 connector (XBE) expansion module
Relative humidity5...95 % without condensation
MTBF reliability1184170 H
StandardsIEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 IEC 61000-6-5, interface type 1 and type 2 IEC 61850-3, location G IEC 60079-0
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2014/34/EU - ATEX directive
Fixing modeBy 4 M6 screws, mounting on plate By 4 screws - diameter: 4.32...6.35 mm, mounting on panel
Number of slots8 bus X + Ethernet 2 bus X
Protective treatmentConformal coating
Environmental characteristicGas resistant class Gx conforming to ISA S71.04 Gas resistant class 3C4 conforming to IEC 60721-3-3 Dust resistant class 3S4 conforming to IEC 60721-3-3 Sand resistant class 3S4 conforming to IEC 60721-3-3 Salt resistant level 2 conforming to IEC 68252 Mold growth resistant class 3B2 conforming to IEC 60721-3-3 Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 Hazardous location class I division 2
Product specific applicationFor severe environments
Ambient air temperature for operation-25...70 °C

Product details

The BMEXBP1002H: The rack handles 8 bus X slots plus 2 dedicated for Ethernet modules. The conformal coating (per) and the -25 to 70°C operating range make it a solid fit for pulp & paper, chemical processing, or any location with gas, dust, salt, or mold exposure — it's rated Gas class Gx, 3C4, dust 3S4, salt level 2, and mold 3B2.

Standards and Directives

Carries a full slate of approvals for global projects: IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS, and IEC 61000-6-5 (interface types 1 and 2). For substation automation, it meets IEC 61850-3 and location G. It also passes IEC 60079-0 for hazardous locations and the ATEX directive (2014/34/EU). Low voltage and EMC directives (2014/35/EU and 2014/30/EU) apply as well.

Frequently asked questions

What standards does the BMEXBP1002H comply with?

IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS, IEC 61000-6-5 (interface types 1 and 2), IEC 61850-3 (location G), IEC 60079-0, and the ATEX directive (2014/34/EU). Low voltage and EMC directives (2014/35/EU and 2014/30/EU) also apply.

What are the operating temperature limits?

The rack operates from -25°C to 70°C ambient air temperature.

Does the rack come with conformal coating?

Yes, conformal coating is standard per the protective treatment specification.
