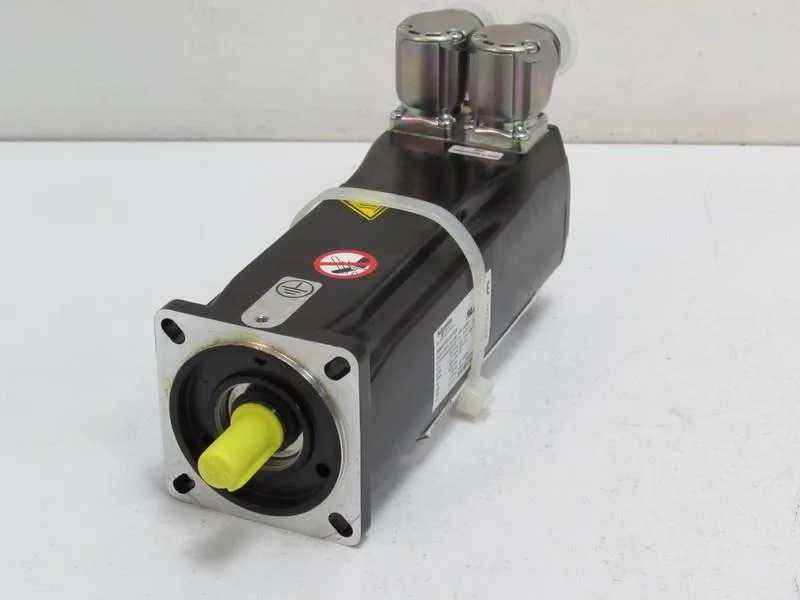

Schneider Electric BMH1001P32F2A
MPNBMH1001P32F2A
Active
Square D BMH1001P32F2A Motor 100mm Ip65|Square D BMH1001P32F2A Motor 100mm Ip65
$984.25 – $2,135.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Feedback type | Multiturn SinCos Hiperface |
| Type of cooling | Natural convection |
| Product or component type | Servo motor |
| Supply voltage | 480 V |
| Maximum current irms | 11.2 A LXM32.D12N4 11.9 A LXM32.D18N4 |
| Output current 3s peak | 11.2 A |
| Continuous stall current | 3.15 A |
| Maximum permanent current | 11.93 A |
| Continuous power | 1.76 W |
| Brake pull-in power | 12 W |
| Nominal output power | 800 W LXM32.D12N4 3 A, 400 V, three phase 800 W LXM32.D12N4 3 A, 480 V, three phase 1300 W LXM32.D18N4 6 A, 400 V, three phase 1300 W LXM32.D18N4 6 A, 480 V, three phase |
| Number of motor poles | 5.0 |
All specifications
| Parameter | Value |
|---|---|
| Phases | Three phase |
| Network number of phases | 3 |
| IP degree of protection | IP65 standard IP67 with IP67 kit |
| Mounting support | International standard flange |
| Mounting holes diameter | 0.4 in (9 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 4.5 in (115 mm) |
| Electrical connection | Rotatable right-angled connectors |
| Key width | 1.2 in (30 mm) |
| Centring collar depth | 0.1 in (3.5 mm) |
| Length | 6.7 in (170.3 mm) |
| Inertia | 0.49 kg.cm² of brake 3.186 kg.cm² of motor |
| Category | US1PC5318282 |
| Shaft end | Keyed |
| Second shaft | Without second shaft end |
| Shaft length | 1.6 in (40 mm) |
| Holding brake | With |
| Nominal speed | 4000 rpm LXM32.D12N4 3 A, 400 V, three phase 4000 rpm LXM32.D12N4 3 A, 480 V, three phase 4000 rpm LXM32.D18N4 6 A, 400 V, three phase 4000 rpm LXM32.D18N4 6 A, 480 V, three phase |
| Rotor inertia | 3.68 kg.cm² |
| Holding torque | 48.7 lbf.in (5.5 N.m) holding brake |
| Nominal torque | 16.8 lbf.in (1.9 N.m) LXM32.D12N4 3 A, 400 V, three phase 16.8 lbf.in (1.9 N.m) LXM32.D12N4 3 A, 480 V, three phase 27.4 lbf.in (3.1 N.m) LXM32.D18N4 6 A, 400 V, three phase 27.4 lbf.in (3.1 N.m) LXM32.D18N4 6 A, 480 V, three phase |
| Shaft diameter | 0.7 in (19 mm) |
| Torque constant | 1.08 N.m/A 248 °F (120 °C) |
| Sizing reference | BMH1001P |
| Back emf constant | 70.3 V/krpm 248 °F (120 °C) |
| Device short name | BMH |
| Motor flange size | 3.9 in (100 mm) |
| Peak stall torque | 95.6 lbf.in (10.8 N.m) LXM32.D12N4 3 A, 400 V, three phase 95.6 lbf.in (10.8 N.m) LXM32.D12N4 3 A, 480 V, three phase 95.6 lbf.in (10.8 N.m) LXM32.D18N4 6 A, 400 V, three phase 95.6 lbf.in (10.8 N.m) LXM32.D18N4 6 A, 480 V, three phase |
| Stator inductance | 7.45 mH 68 °F (20 °C) |
| Stator resistance | 3.1 Ohm 68 °F (20 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
| Maximum axial force fa | 0.2 x Fr |
| Number of motor stacks | 1 |
| Temperature copper hot | 275 °F (135 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Continuous stall torque | 29.2 lbf.in (3.3 N.m) LXM32.D12N4 3 A, 400 V, three phase 29.2 lbf.in (3.3 N.m) LXM32.D12N4 3 A, 480 V, three phase 30.09 lbf.in (3.4 N.m) LXM32.D18N4 6 A, 400 V, three phase 30.09 lbf.in (3.4 N.m) LXM32.D18N4 6 A, 480 V, three phase |
| Maximum radial force fr | 900 N 1000 rpm 720 N 2000 rpm 630 N 3000 rpm 570 N 4000 rpm 530 N 5000 rpm |
| Accuracy error [angular] | 1.4 ° |
| Centring collar diameter | 3.7 in (95 mm) |
| Maximum mechanical speed | 6000 rpm |
| Speed feedback resolution | 131072 points/turn x 4096 turns |
| Stator electrical time constant | 4.5 ms 68 °F (20 °C) |
MPN
BMH1001P32F2A
