Schneider Electric BMH1001T01A1A
MPNBMH1001T01A1A
Active

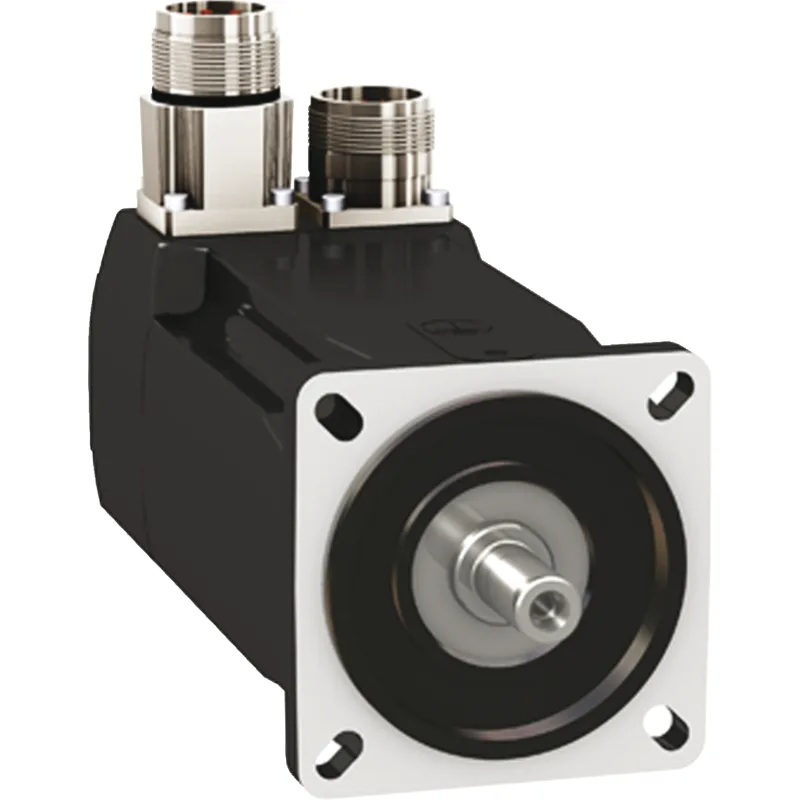

servo motor BMH, Lexium 32, 3.3Nm, 6000rpm, untapped shaft, without brake, IP54, 128bit encoder, straight
$1,314.00 – $1,980.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Feedback type | Single turn SinCos Hiperface |
| Type of cooling | Natural convection |
| Product or component type | Servo motor |
| Supply voltage | 240 V |
| Maximum current irms | 18.2 A LXM32.D30M2 19.4 A LXM32.D18M2 |
| Output current 3s peak | 18.2 A |
| Continuous stall current | 5.11 A |
| Maximum permanent current | 19.38 A |
| Continuous power | 1.74 W |
| Nominal output power | 700 W LXM32.D30M2 10 A, 115 V, single phase 900 W LXM32.D18M2 6 A, 230 V, single phase |
| Number of motor poles | 5.0 |
| Phases | Three phase |
All specifications
| Parameter | Value |
|---|---|
| Network number of phases | 3 |
| IP degree of protection | IP54 standard |
| Mounting support | International standard flange |
| Mounting holes diameter | 0.4 in (9 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 4.5 in (115 mm) |
| Electrical connection | Straight connectors |
| Centring collar depth | 0.1 in (3.5 mm) |
| Length | 5.06 in (128.6 mm) |
| Inertia | 0.0 kg.cm² of brake 3.186 kg.cm² of motor |
| Category | US1PC5318282 |
| Shaft end | Smooth shaft |
| Second shaft | Without second shaft end |
| Shaft length | 1.6 in (40 mm) |
| Holding brake | Without |
| Nominal speed | 2000 rpm LXM32.D30M2 10 A, 115 V, single phase 3000 rpm LXM32.D18M2 6 A, 230 V, single phase |
| Rotor inertia | 3.19 kg.cm² |
| Nominal torque | 29.2 lbf.in (3.3 N.m) LXM32.D30M2 10 A, 115 V, single phase 24.8 lbf.in (2.8 N.m) LXM32.D18M2 6 A, 230 V, single phase |
| Shaft diameter | 0.7 in (19 mm) |
| Torque constant | 0.67 N.m/A 248 °F (120 °C) |
| Sizing reference | BMH1001T |
| Back emf constant | 43.3 V/krpm 248 °F (120 °C) |
| Device short name | BMH |
| Motor flange size | 3.9 in (100 mm) |
| Peak stall torque | 78.8 lbf.in (8.9 N.m) LXM32.D30M2 10 A, 115 V, single phase 90.3 lbf.in (10.2 N.m) LXM32.D18M2 6 A, 230 V, single phase |
| Stator inductance | 2.72 mH 68 °F (20 °C) |
| Stator resistance | 1.19 Ohm 68 °F (20 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
| Maximum axial force fa | 0.2 x Fr |
| Number of motor stacks | 1 |
| Temperature copper hot | 275 °F (135 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Continuous stall torque | 30.09 lbf.in (3.4 N.m) LXM32.D30M2 10 A, 115 V, single phase 30.09 lbf.in (3.4 N.m) LXM32.D18M2 6 A, 230 V, single phase |
| Maximum radial force fr | 900 N 1000 rpm 720 N 2000 rpm 630 N 3000 rpm 570 N 4000 rpm 530 N 5000 rpm |
| Accuracy error [angular] | 1.4 ° |
| Centring collar diameter | 3.7 in (95 mm) |
| Maximum mechanical speed | 6000 rpm |
| Speed feedback resolution | 131072 points/turn |
| Stator electrical time constant | 4.5 ms 68 °F (20 °C) |
MPN
BMH1001T01A1A
