Schneider BMH1902P21A2A Servo Motor
MPNBMH1902P21A2A
Active

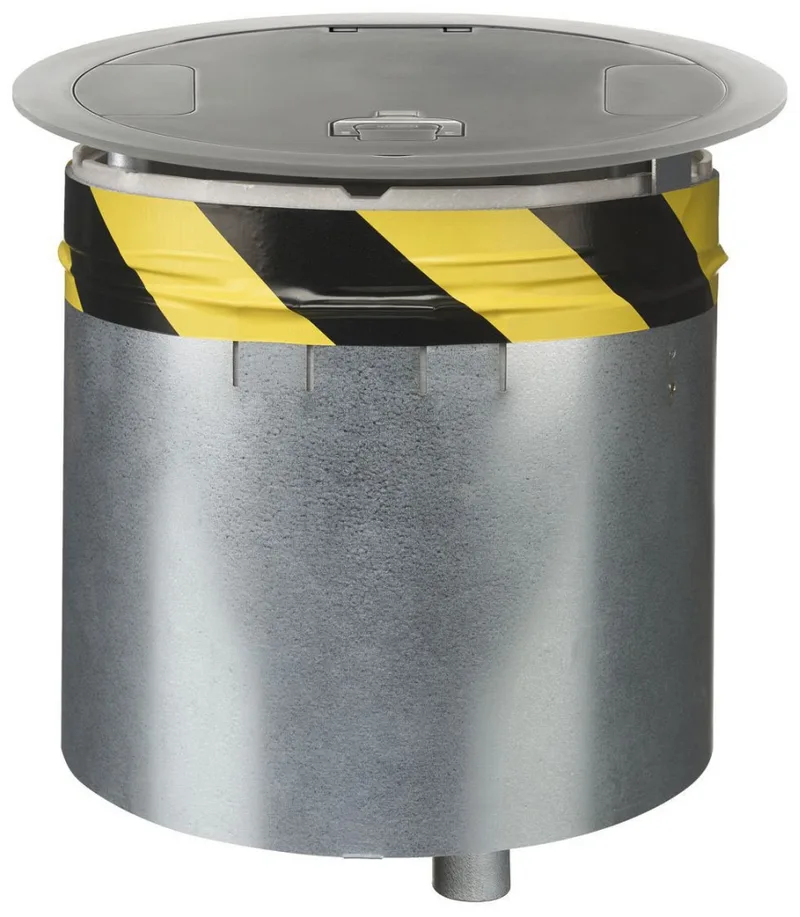

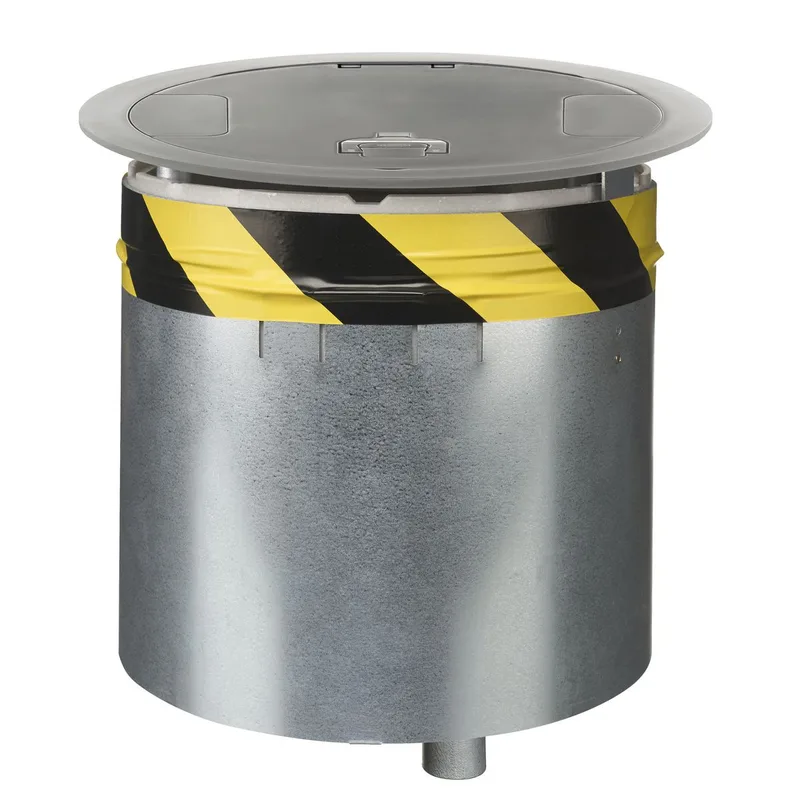

Hubbell S1R10PTZNKL System-One 10" Pwz Fire-Rated Poke-Through Fit With Nickel Cover|Hubbell S1R10PTZNKL System-One 10" Pwz Fire-Rated Poke-Through Fit With Nickel Cover
$1,816.85 – $4,430.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Feedback type | Single turn SinCos Hiperface |
| Type of cooling | Natural convection |
| Product or component type | Servo motor |
| Supply voltage | 480 V |
| Maximum current irms | 113.95 A LXM32.D72N4 |
| Output current 3s peak | 113.95 A |
| Continuous stall current | 30.8 A |
| Maximum permanent current | 114 A |
| Continuous power | 6.1 W |
| Nominal output power | 5900 W LXM32.D72N4 24 A, 400 V, three phase 5900 W LXM32.D72N4 24 A, 480 V, three phase 6070 W LXM32MD85N4 32 A, 400 V, three phase 6070 W LXM32MD85N4 32 A, 480 V, three phase 6070 W LXM32MC10N4 40 A, 400 V, three phase 6070 W LXM32MC10N4 40 A, 480 V, three phase |
| Number of motor poles | 5.0 |
| Phases | Three phase |
All specifications
| Parameter | Value |
|---|---|
| Network number of phases | 3 |
| IP degree of protection | IP65 standard IP67 with IP67 kit |
| Mounting support | International standard flange |
| Mounting holes diameter | 0.6 in (14 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 8.5 in (215 mm) |
| Electrical connection | Rotatable right-angled connectors |
| Centring collar depth | 0.2 in (4 mm) |
| Length | 9.8 in (250 mm) |
| Inertia | 0.0 kg.cm² of brake 130.1 kg.cm² of motor |
| Category | US1PC5318282 |
| Shaft end | Smooth shaft |
| Second shaft | Without second shaft end |
| Shaft length | 3.1 in (80 mm) |
| Holding brake | Without |
| Nominal speed | 2000 rpm LXM32MC10N4 40 A, 400 V, three phase 2000 rpm LXM32MC10N4 40 A, 480 V, three phase 2500 rpm LXM32.D72N4 24 A, 400 V, three phase 2500 rpm LXM32.D72N4 24 A, 480 V, three phase 2000 rpm LXM32MD85N4 32 A, 400 V, three phase 2000 rpm LXM32MD85N4 32 A, 480 V, three phase |
| Rotor inertia | 130.1 kg.cm² |
| Nominal torque | 197.4 lbf.in (22.3 N.m) LXM32.D72N4 24 A, 400 V, three phase 197.4 lbf.in (22.3 N.m) LXM32.D72N4 24 A, 480 V, three phase 256.7 lbf.in (29 N.m) LXM32MD85N4 32 A, 400 V, three phase 256.7 lbf.in (29 N.m) LXM32MD85N4 32 A, 480 V, three phase 256.7 lbf.in (29 N.m) LXM32MC10N4 40 A, 400 V, three phase 256.7 lbf.in (29 N.m) LXM32MC10N4 40 A, 480 V, three phase |
| Shaft diameter | 1.5 in (38 mm) |
| Torque constant | 1.56 N.m/A 248 °F (120 °C) |
| Sizing reference | BMH1902P |
| Back emf constant | 108.3 V/krpm 248 °F (120 °C) |
| Device short name | BMH |
| Motor flange size | 7.5 in (190 mm) |
| Peak stall torque | 893.9 lbf.in (101 N.m) LXM32.D72N4 24 A, 400 V, three phase 893.9 lbf.in (101 N.m) LXM32.D72N4 24 A, 480 V, three phase 1022.3 lbf.in (115.5 N.m) LXM32MD85N4 32 A, 400 V, three phase 1022.3 lbf.in (115.5 N.m) LXM32MD85N4 32 A, 480 V, three phase 1156.8 lbf.in (130.7 N.m) LXM32MC10N4 40 A, 400 V, three phase 1156.8 lbf.in (130.7 N.m) LXM32MC10N4 40 A, 480 V, three phase |
| Stator inductance | 1.93 mH 68 °F (20 °C) |
| Stator resistance | 0.15 Ohm 68 °F (20 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
| Maximum axial force fa | 0.2 x Fr |
| Number of motor stacks | 2 |
| Temperature copper hot | 275 °F (135 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Continuous stall torque | 331.02 lbf.in (37.4 N.m) LXM32.D72N4 24 A, 400 V, three phase 331.02 lbf.in (37.4 N.m) LXM32.D72N4 24 A, 480 V, three phase 424.8 lbf.in (48 N.m) LXM32MD85N4 32 A, 400 V, three phase 424.8 lbf.in (48 N.m) LXM32MD85N4 32 A, 480 V, three phase 424.8 lbf.in (48 N.m) LXM32MC10N4 40 A, 400 V, three phase 424.8 lbf.in (48 N.m) LXM32MC10N4 40 A, 480 V, three phase |
| Maximum radial force fr | 4200 N 1000 rpm |
| Accuracy error [angular] | 1.4 ° |
| Centring collar diameter | 7.09 in (180 mm) |
| Maximum mechanical speed | 4000 rpm |
| Speed feedback resolution | 131072 points/turn |
| Stator electrical time constant | 25.7 ms 68 °F (20 °C) |
MPN
BMH1902P21A2A
