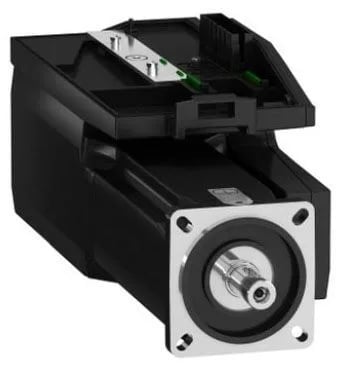

The BMI0702P06A is a three-phase servo motor with integrated EMC filter and an absolute single-turn SinCos Hiperface feedback encoder. Power output depends on supply voltage: 400 W at 208 V three-phase, 800 W at 400 V, and 900 W at 480 V. Nominal speeds are 1800 rpm at 208 V, 3600 rpm at 400 V, and 4400 rpm at 480 V—matching to your line voltage gets the full performance. Continuous stall torque is 2.48 N·m (21.95 lbf·in) across the full voltage range, with peak stall torque reaching 6.8 N·m (60.2 lbf·in). The torque constant is 1.15 N·m/A at 20°C, and continuous stall current draws 2 A. A 10-pole, 2-stack design with natural convection cooling means no external fan needed, but duty cycle matters on sustained loads. Frame flange size is 70 mm (2.8 in), body length 268 mm (10.6 in), shaft diameter 11 mm with an untapped end. Protection is shaft IP54, housing IP65.
BMI0702P06A Servo Motor, 400-900W, 1800-4400 rpm, Hiperface
MPNBMI0702P06A
Active
BMI, three-phase servo motor, 400-900W, 1800-4400 rpm, integrated EMC filter, absolute single-turn SinCos Hiperface feedback, IP54/IP65.
$651.51 – $1,455.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Feedback type | Absolute single turn SinCos Hiperface |
| Type of cooling | Natural convection |
| Product or component type | Servo motor with power stage |
| Supply voltage limits | 208...480 V |
| Supply voltage | 208...480 V - 15...10 % |
| Maximum current irms | 9.6 A 208 V, three phase 9.6 A 400 V, three phase 9.6 A 480 V, three phase |
| Output current 3s peak | 6 A 400 V 3 s |
| Continuous stall current | 2 A |
| Continuous output current | 2 A 8 kHz |
| Nominal output power | 400 W 208 V three phase 800 W 400 V three phase 900 W 480 V three phase |
| Supply frequency | 50/60 Hz - 5...5 % |
| Network frequency limits | 47.5...63 Hz |
All specifications
| Parameter | Value |
|---|---|
| Number of motor poles | 10 |
| Phases | Three phase |
| IP degree of protection | Shaft IP54 Housing IP65 |
| Mounting support | International standard flange |
| Mounting holes diameter | 0.2 in (5.5 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 3.0...3.2 in (75...82 mm) |
| Electrical connection | Printed circuit board connector |
| EMC filter | Integrated |
| Centring collar depth | 0.10 in (2.5 mm) |
| Length | 10.6 in (268 mm) |
| Category | US1PC5618287 |
| Shaft end | Untapped |
| Second shaft | Without second shaft end |
| Shaft length | 0.9 in (23 mm) |
| Holding brake | Without |
| Nominal speed | 1800 rpm 208 V three phase 3600 rpm 400 V three phase 4400 rpm 480 V three phase |
| Rotor inertia | 1.13 kg.cm² |
| Nominal torque | 21.2 lbf.in (2.4 N.m) 208 V three phase 19.5 lbf.in (2.2 N.m) 400 V three phase 17.7 lbf.in (2 N.m) 480 V three phase |
| Shaft diameter | 0.4 in (11 mm) |
| Torque constant | 1.15 N.m/A 68 °F (20 °C) |
| Back emf constant | 77.18 V/krpm 68 °F (20 °C) |
| Device short name | BMI |
| Motor flange size | 2.8 in (70 mm) |
| Peak stall torque | 60.2 lbf.in (6.8 N.m) 208 V three phase 60.2 lbf.in (6.8 N.m) 400 V three phase 60.2 lbf.in (6.8 N.m) 480 V three phase |
| Stator inductance | 25.75 mH 68 °F (20 °C) |
| Stator resistance | 8.89 Ohm 68 °F (20 °C) |
| Maximum axial force fa | 0.2 x Fr |
| Number of motor stacks | 2 |
| Continuous stall torque | 21.95 lbf.in (2.48 N.m) 208...480 V three phase |
| Maximum radial force fr | 710 N 1000 rpm 560 N 2000 rpm 490 N 3000 rpm 450 N 4000 rpm 410 N 5000 rpm 390 N 6000 rpm |
| Centring collar diameter | 2.4 in (60 mm) |
| Maximum mechanical speed | 8000 rpm |
| Speed feedback resolution | 32768 points/turn |
| Distance shaft shoulder-flange | 0.10 in (2.5 mm) |
| Stator electrical time constant | 2.9 ms 68 °F (20 °C) |
Product details
Frequently asked questions
What is BMI0702P06A's listed phase?
It is a three-phase motor.
What is BMI0702P06A's listed length?
The length is 10.6 in (268 mm).
