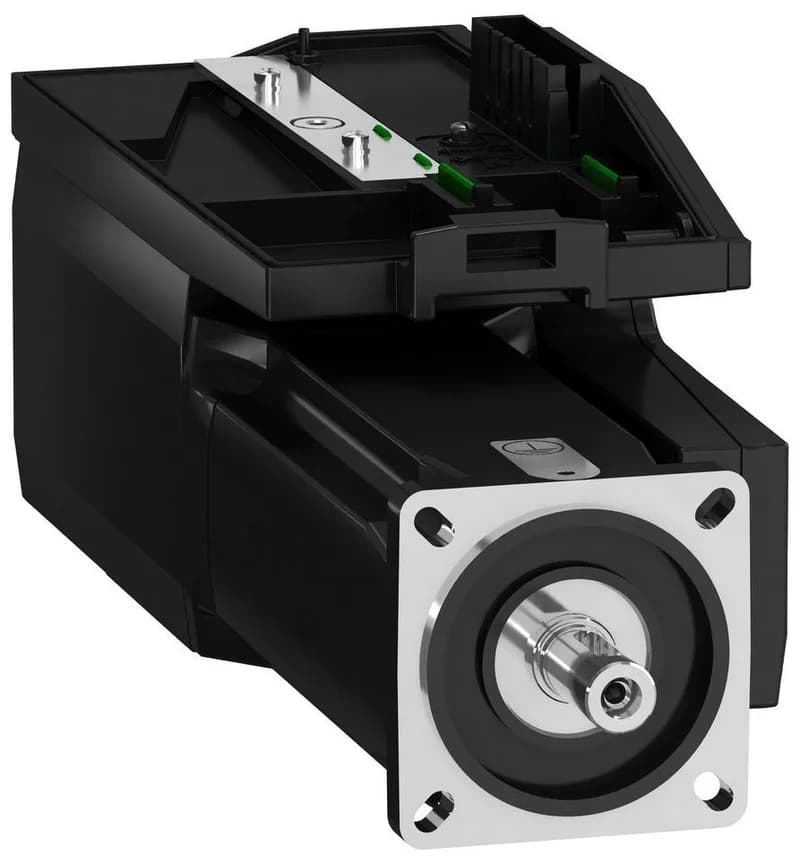

BMI0702P07A Servo Motor, 400-900W, 2.48 Nm, 10.6 in

MPNBMI0702P07A
Active

BMI0702P07A servo motor, three-phase, 208-480 VAC, 2.48 Nm continuous stall torque, 10.6 in length, absolute multiturn Hiperface encoder.

$2,175.00Ref. price · indicative, final on quote
Schneider Electric BMI0702P07A datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMI0702P07A key specifications
ParameterValue
Feedback typeAbsolute multiturn SinCos Hiperface
Type of coolingNatural convection
Product or component typeServo motor with power stage
Supply voltage limits208...480 V
Supply voltage208...480 V - 15...10 %
Maximum current irms9.6 A 208 V, three phase 9.6 A 400 V, three phase 9.6 A 480 V, three phase
Output current 3s peak6 A 400 V 3 s
Continuous stall current2 A
Continuous output current2 A 8 kHz
Nominal output power400 W 208 V three phase 800 W 400 V three phase 900 W 480 V three phase
Supply frequency50/60 Hz - 5...5 %
Network frequency limits47.5...63 Hz

All specifications

BMI0702P07A additional specifications
ParameterValue
Number of motor poles10
PhasesThree phase
IP degree of protectionShaft IP54 Housing IP65
Mounting supportInternational standard flange
Mounting holes diameter0.2 in (5.5 mm)
Number of mounting holes4
Circle diameter of the mounting holes3.0...3.2 in (75...82 mm)
Electrical connectionPrinted circuit board connector
EMC filterIntegrated
Centring collar depth0.10 in (2.5 mm)
Length10.6 in (268 mm)
CategoryUS1PC5618287
Shaft endUntapped
Second shaftWithout second shaft end
Shaft length0.9 in (23 mm)
Holding brakeWithout
Nominal speed1800 rpm 208 V three phase 3600 rpm 400 V three phase 4400 rpm 480 V three phase
Rotor inertia1.13 kg.cm²
Nominal torque21.2 lbf.in (2.4 N.m) 208 V three phase 19.5 lbf.in (2.2 N.m) 400 V three phase 17.7 lbf.in (2 N.m) 480 V three phase
Shaft diameter0.4 in (11 mm)
Torque constant1.15 N.m/A 68 °F (20 °C)
Back emf constant77.18 V/krpm 68 °F (20 °C)
Device short nameBMI
Motor flange size2.8 in (70 mm)
Peak stall torque60.2 lbf.in (6.8 N.m) 208 V three phase 60.2 lbf.in (6.8 N.m) 400 V three phase 60.2 lbf.in (6.8 N.m) 480 V three phase
Stator inductance25.75 mH 68 °F (20 °C)
Stator resistance8.89 Ohm 68 °F (20 °C)
Maximum axial force fa0.2 x Fr
Number of motor stacks2
Continuous stall torque21.95 lbf.in (2.48 N.m) 208...480 V three phase
Maximum radial force fr710 N 1000 rpm 560 N 2000 rpm 490 N 3000 rpm 450 N 4000 rpm 410 N 5000 rpm 390 N 6000 rpm
Centring collar diameter2.4 in (60 mm)
Maximum mechanical speed8000 rpm
Speed feedback resolution32768 points/turn x 4096 turns
Distance shaft shoulder-flange0.10 in (2.5 mm)
Stator electrical time constant2.9 ms 68 °F (20 °C)

Product details

Commissioning notes

The BMI0702P07A is a three-phase servo motor in the BMI series, rated for 208-480 VAC supplies with nominal speeds from 1800 to 4400 rpm depending on line voltage. Nominal torque ranges from 2.0 to 2.4 Nm across that voltage band; continuous stall torque is a flat 2.48 Nm, based on a continuous stall current of 2 A and a torque constant of 1.15 Nm/A. Peak stall torque is 6.8 Nm. Feedback comes from an absolute multiturn SinCos Hiperface encoder — position is retained through power cycles, no homing required after a restart. The motor carries an integrated EMC filter, so additional line filters are unnecessary unless the application has very strict emissions limits. Shaft IP54, housing IP65. Natural convection cooling. Electrical connection is via a printed circuit board connector; the mating half is not included. Shaft is untapped (no keyway), 11 mm diameter. Flange is 70 mm, centring collar 60 mm, overall length 268 mm.

Frequently asked questions

What is the supply voltage range for this servo motor?

Supply voltage limits are 208-480 V three-phase, 50/60 Hz.

What type of feedback encoder does it use?

Absolute multiturn SinCos Hiperface encoder.
