Schneider Electric BMI0702P22A

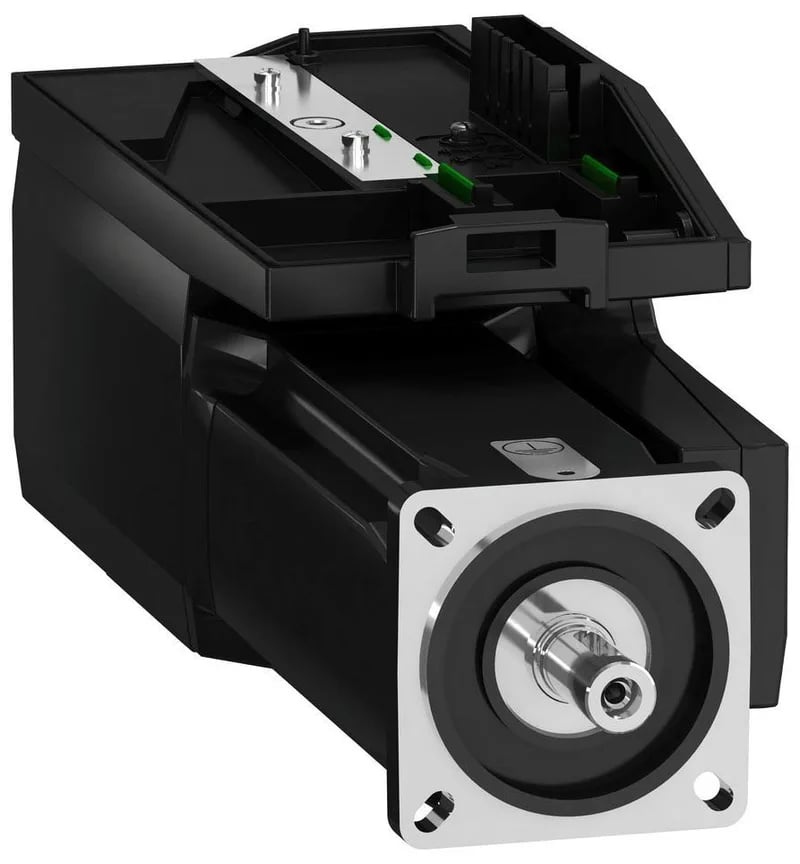

Schneider BMI0702P22A Lexium 32i servo motor, 2.48 N.m, 8000 rpm

MPNBMI0702P22A
Active

Schneider BMI0702P22A Motors — now discontinued, supplied from remaining surplus and broker stock.

$2,610.00Ref. price · indicative, final on quote
Schneider Electric BMI0702P22A datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMI0702P22A key specifications
ParameterValue
Feedback typeAbsolute multiturn SinCos Hiperface
Type of coolingNatural convection
Product or component typeServo motor with power stage
Supply voltage limits208...480 V
Supply voltage208...480 V - 15...10 %
Maximum current irms9.6 A 208 V, three phase 9.6 A 400 V, three phase 9.6 A 480 V, three phase
Output current 3s peak6 A 400 V 3 s
Continuous stall current2 A
Continuous output current2 A 8 kHz
Nominal output power400 W 208 V three phase 800 W 400 V three phase 900 W 480 V three phase
Supply frequency50/60 Hz - 5...5 %
Network frequency limits47.5...63 Hz

All specifications

BMI0702P22A additional specifications
ParameterValue
Number of motor poles10
PhasesThree phase
IP degree of protectionIP65
Mounting supportInternational standard flange
Mounting holes diameter0.2 in (5.5 mm)
Number of mounting holes4
Circle diameter of the mounting holes3.0...3.2 in (75...82 mm)
Electrical connectionPrinted circuit board connector
EMC filterIntegrated
Centring collar depth0.10 in (2.5 mm)
Length10.6 in (268 mm)
CategoryUS1PC5618287
Shaft endUntapped
Second shaftWithout second shaft end
Shaft length0.9 in (23 mm)
Holding brakeWithout
Nominal speed1800 rpm 208 V three phase 3600 rpm 400 V three phase 4400 rpm 480 V three phase
Rotor inertia1.13 kg.cm²
Nominal torque21.2 lbf.in (2.4 N.m) 208 V three phase 19.5 lbf.in (2.2 N.m) 400 V three phase 17.7 lbf.in (2 N.m) 480 V three phase
Shaft diameter0.4 in (11 mm)
Torque constant1.15 N.m/A 68 °F (20 °C)
Back emf constant77.18 V/krpm 68 °F (20 °C)
Device short nameBMI
Motor flange size2.8 in (70 mm)
Peak stall torque60.2 lbf.in (6.8 N.m) 208 V three phase 60.2 lbf.in (6.8 N.m) 400 V three phase 60.2 lbf.in (6.8 N.m) 480 V three phase
Stator inductance25.75 mH 68 °F (20 °C)
Stator resistance8.89 Ohm 68 °F (20 °C)
Maximum axial force fa0.2 x Fr
Number of motor stacks2
Continuous stall torque21.95 lbf.in (2.48 N.m) 208...480 V three phase
Maximum radial force fr710 N 1000 rpm 560 N 2000 rpm 490 N 3000 rpm 450 N 4000 rpm 410 N 5000 rpm 390 N 6000 rpm
Centring collar diameter2.4 in (60 mm)
Maximum mechanical speed8000 rpm
Speed feedback resolution131072 points/turn x 4096 turns
Distance shaft shoulder-flange0.10 in (2.5 mm)
Stator electrical time constant2.9 ms 68 °F (20 °C)

Product details

Overview

The BMI0702P22A is a Schneider Lexium 32i integrated servo motor delivering 2.48 N.m continuous torque across a 208 to 480 V three-phase supply, with a top speed of 8000 rpm and an absolute multiturn SinCos Hiperface encoder for position feedback. Rated IP65, it integrates the drive and motor in a single package, eliminating separate cabling and panel space for the drive unit.

Power output scales with line voltage: 400 W at 208 V three-phase, 800 W at 400 V, and 900 W at 480 V, so the same motor delivers roughly double the power on a 400 V line versus 208 V. The 2.48 N.m torque is constant across the voltage range, but the speed at rated power shifts — 1800 rpm at 208 V, 3600 rpm at 400 V, and 4400 rpm at 480 V — meaning the motor is best matched to a load that can use the higher speed at higher voltages.

The BMI0703P07A also produces 900 W at 400 V and 480 V, but only 450 W at 208 V, while the BMI0702P22A reaches 900 W at 480 V and 800 W at 400 V — so the BMI0702P22A is the better fit when the supply is 208 V and the load requires more than 450 W.
