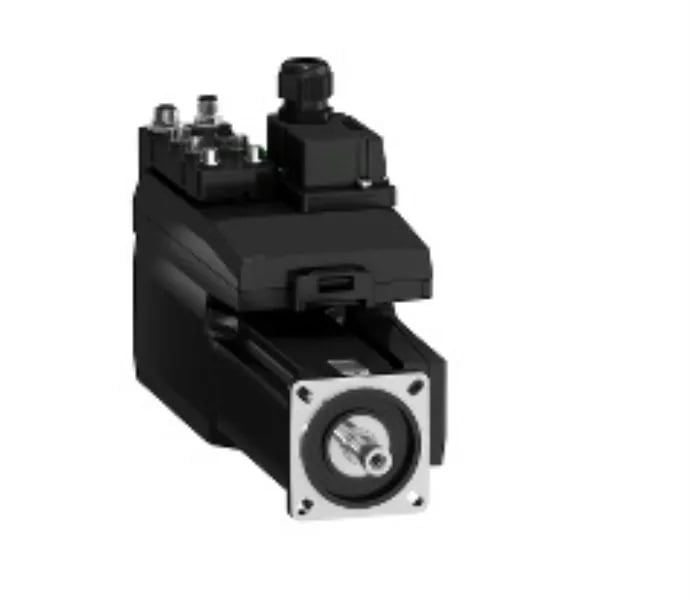

Schneider BMI0702P31F Servo Motor 3-Phase 70mm
MPNBMI0702P31F
Obsolete
Square D BMI0702P31F Mot 3P 70mm Ip65|Square D BMI0702P31F Mot 3P 70mm Ip65
$999.49 – $1,735.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Feedback type | Absolute single turn SinCos Hiperface |
| Type of cooling | Natural convection |
| Product or component type | Servo motor with power stage |
| Supply voltage limits | 208...480 V |
| Supply voltage | 208...480 V - 15...10 % |
| Maximum current irms | 9.6 A 208 V, three phase 9.6 A 400 V, three phase 9.6 A 480 V, three phase |
| Output current 3s peak | 6 A 400 V 3 s |
| Continuous stall current | 2 A |
| Continuous output current | 2 A 8 kHz |
| Brake pull-in power | 5 W |
| Nominal output power | 400 W 208 V three phase 800 W 400 V three phase 900 W 480 V three phase |
| Supply frequency | 50/60 Hz - 5...5 % |
All specifications
| Parameter | Value |
|---|---|
| Network frequency limits | 47.5...63 Hz |
| Number of motor poles | 10 |
| Phases | Three phase |
| IP degree of protection | IP65 |
| Mounting support | International standard flange |
| Mounting holes diameter | 0.2 in (5.5 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 3.0...3.2 in (75...82 mm) |
| Electrical connection | Printed circuit board connector |
| EMC filter | Integrated |
| Key width | 0.2 in (4 mm) |
| Centring collar depth | 0.10 in (2.5 mm) |
| Length | 12.05 in (306 mm) |
| Category | US1PC5618287 |
| Shaft end | Keyed |
| Second shaft | Without second shaft end |
| Shaft length | 0.9 in (23 mm) |
| Holding brake | With |
| Nominal speed | 1800 rpm 208 V three phase 3600 rpm 400 V three phase 4400 rpm 480 V three phase |
| Rotor inertia | 1.24 kg.cm² |
| Holding torque | 26.6 lbf.in (3 N.m) holding brake |
| Nominal torque | 21.2 lbf.in (2.4 N.m) 208 V three phase 19.5 lbf.in (2.2 N.m) 400 V three phase 17.7 lbf.in (2 N.m) 480 V three phase |
| Shaft diameter | 0.4 in (11 mm) |
| Torque constant | 1.15 N.m/A 68 °F (20 °C) |
| Back emf constant | 77.18 V/krpm 68 °F (20 °C) |
| Device short name | BMI |
| Motor flange size | 2.8 in (70 mm) |
| Peak stall torque | 60.2 lbf.in (6.8 N.m) 208 V three phase 60.2 lbf.in (6.8 N.m) 400 V three phase 60.2 lbf.in (6.8 N.m) 480 V three phase |
| Stator inductance | 25.75 mH 68 °F (20 °C) |
| Stator resistance | 8.89 Ohm 68 °F (20 °C) |
| Maximum axial force fa | 0.2 x Fr |
| Number of motor stacks | 2 |
| Continuous stall torque | 21.95 lbf.in (2.48 N.m) 208...480 V three phase |
| Maximum radial force fr | 710 N 1000 rpm 560 N 2000 rpm 490 N 3000 rpm 450 N 4000 rpm 410 N 5000 rpm 390 N 6000 rpm |
| Centring collar diameter | 2.4 in (60 mm) |
| Maximum mechanical speed | 8000 rpm |
| Speed feedback resolution | 131072 points/turn |
| Distance shaft shoulder-flange | 0.10 in (2.5 mm) |
| Stator electrical time constant | 2.9 ms 68 °F (20 °C) |
