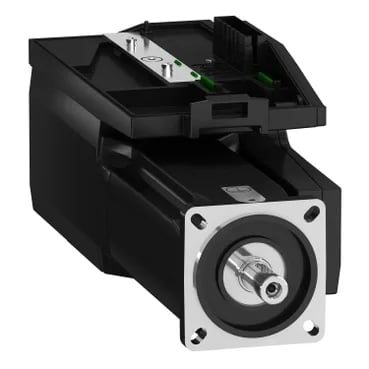

Schneider Electric BMI0702T22F

Bosch Rexroth BMI0702T22F Servo Motor, Single-Phase, 700W

MPNBMI0702T22F
Active

Bosch Rexroth BMI series, BMI0702T22F servo motor, single phase, 700 W nominal output, with holding brake and absolute multiturn Hiperface encoder.

$150.09Ref. price · indicative, final on quote
Schneider Electric BMI0702T22F datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMI0702T22F key specifications
ParameterValue
Feedback typeAbsolute multiturn SinCos Hiperface
Type of coolingNatural convection
Product or component typeServo motor with power stage
Supply voltage limits100...240 V
Supply voltage115...230 V - 15...10 %
Maximum current irms17.7 A 230 V, single phase 17.7 A 115 V, single phase
Output current 3s peak10.5 A 230 V 1 s
Continuous stall current2.6 A
Continuous output current2.6 A 8 kHz
Brake pull-in power5 W
Nominal output power700 W 230 V single phase 400 W 115 V single phase
Supply frequency50/60 Hz - 5...5 %

All specifications

BMI0702T22F additional specifications
ParameterValue
Network frequency limits47.5...63 Hz
Number of motor poles10
PhasesSingle phase
IP degree of protectionIP65
Mounting supportInternational standard flange
Mounting holes diameter0.2 in (5.5 mm)
Number of mounting holes4
Circle diameter of the mounting holes3.0...3.2 in (75...82 mm)
Electrical connectionPrinted circuit board connector
EMC filterIntegrated
Centring collar depth0.10 in (2.5 mm)
Length12.05 in (306 mm)
CategoryUS1PC5618287
Shaft endUntapped
Second shaftWithout second shaft end
Shaft length0.9 in (23 mm)
Holding brakeWith
Nominal speed4000 rpm 230 V single phase 1700 rpm 115 V single phase
Rotor inertia1.24 kg.cm²
Holding torque26.6 lbf.in (3 N.m) holding brake
Nominal torque19.5 lbf.in (2.2 N.m) 115 V single phase 15.05 lbf.in (1.7 N.m) 230 V single phase
Shaft diameter0.4 in (11 mm)
Torque constant0.63 N.m/A 68 °F (20 °C)
Back emf constant42.1 V/krpm 68 °F (20 °C)
Device short nameBMI
Motor flange size2.8 in (70 mm)
Peak stall torque58.4 lbf.in (6.6 N.m) 115 V single phase 58.4 lbf.in (6.6 N.m) 230 V single phase
Stator inductance7.8 mH 68 °F (20 °C)
Stator resistance2.7 Ohm 68 °F (20 °C)
Maximum axial force fa0.2 x Fr
Number of motor stacks2
Continuous stall torque21.95 lbf.in (2.48 N.m) 115...230 V single phase
Maximum radial force fr710 N 1000 rpm 560 N 2000 rpm 490 N 3000 rpm 450 N 4000 rpm 410 N 5000 rpm 390 N 6000 rpm
Centring collar diameter2.4 in (60 mm)
Maximum mechanical speed8000 rpm
Speed feedback resolution131072 points/turn x 4096 turns
Distance shaft shoulder-flange0.10 in (2.5 mm)
Stator electrical time constant2.89 ms 68 °F (20 °C)

Product details

Motor

Single-phase servo motor from the Bosch Rexroth BMI series, built for applications where three-phase power isn't on the panel. The BMI0702T22F runs on 100–240 VAC, 50/60 Hz, and delivers 700 W output on a 230 V line or 400 W on 115 V. At 230 V, nominal speed is 4000 rpm; drop to 115 V and it tops out at 1700 rpm. The integrated EMC filter keeps conducted emissions off the line — eliminates an external filter on the panel door. Feedback is an absolute multiturn SinCos Hiperface encoder — no homing sequence after a power cycle, position is retained even with the motor rotated by hand. The holding brake (3 Nm, 26.6 lbf.in) holds vertical loads at standstill; brake pull-in power is 5 W. IP65 rating means it survives washdown and wet environments as long as the cable gland is seated. Single-phase input simplifies installation in retrofit sites where only a line and neutral are available. The integrated EMC filter is the bigger convenience — no extra component to wire and no ground-loop headache from a third-party filter. The Hiperface encoder pairs with Rexroth drives natively; if you're mating it to a third-party drive, verify the resolver emulation or encoder conversion required. Maximum current draw is 17.7 A RMS per phase at either voltage level.

Frequently asked questions

What is the supply voltage and phase requirement?

Single-phase AC, 100–240 VAC, 50/60 Hz ±5%.

What is the physical length of the motor?

12.05 in (306 mm) overall.

What type of encoder does it use?

Absolute multiturn SinCos Hiperface encoder – position is retained without move-to-home on power-up.

What is the torque at nominal speed on 230 V?

2.2 Nm (19.5 lbf.in). On 115 V, nominal torque is 1.7 Nm (15.05 lbf.in).

MPN
BMI0702T22F
