The BMI0702T27A: Motor flange is 70 mm with an 11 mm untapped shaft and a 60 mm centring collar. The PCB connector handles the feedback and power wiring — no flying leads. Natural convection cooling means no fan to maintain; just verify free air around the housing. For radial loads, consult the force table: 710 N at 1000 rpm derating to 390 N at 6000 rpm. Axial load is limited to 20% of the radial figure.

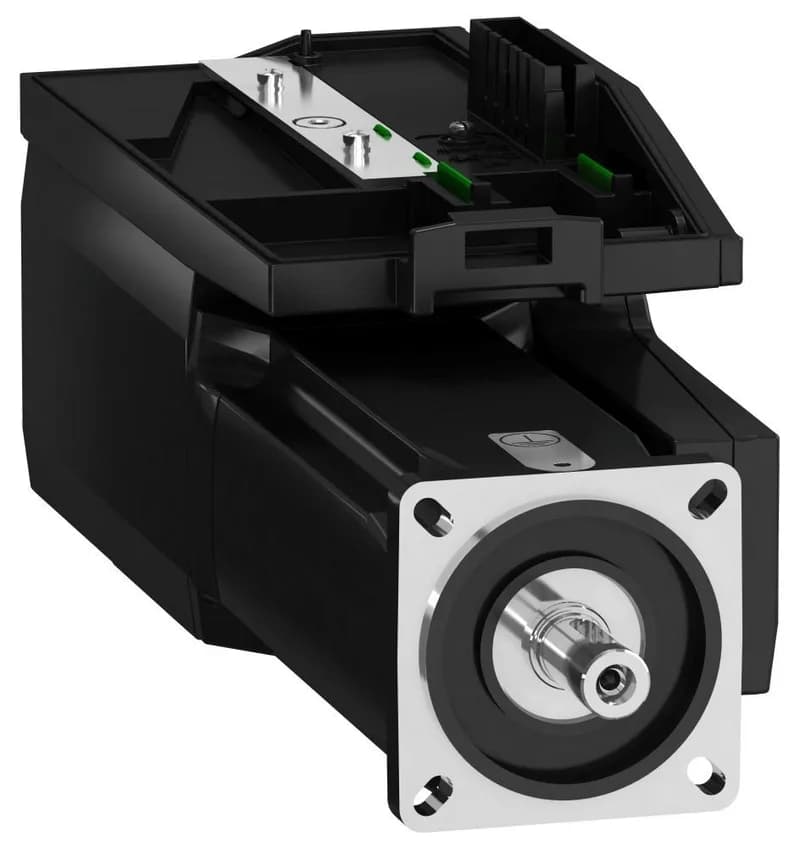

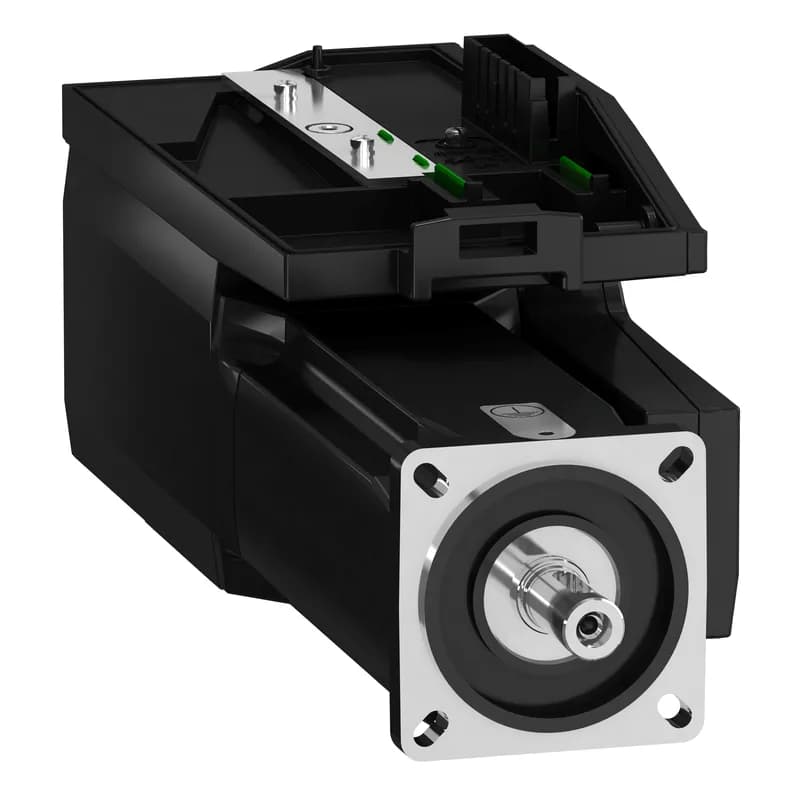

Bosch Rexroth BMI0702T27A servo motor, 2.2 Nm, IP65
MPNBMI0702T27A
Obsolete
Bosch Rexroth BMI0702T27A single-phase servo motor, 2.2 Nm, 4000 rpm, IP65, Hiperface absolute multiturn feedback.
$1,560.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Feedback type | Absolute multiturn SinCos Hiperface |
| Type of cooling | Natural convection |
| Product or component type | Servo motor with power stage |
| Supply voltage limits | 100...240 V |
| Supply voltage | 115...230 V - 15...10 % |
| Maximum current irms | 17.7 A 230 V, single phase 17.7 A 115 V, single phase |
| Output current 3s peak | 10.5 A 230 V 1 s |
| Continuous stall current | 2.6 A |
| Continuous output current | 2.6 A 8 kHz |
| Nominal output power | 700 W 230 V single phase 400 W 115 V single phase |
| Supply frequency | 50/60 Hz - 5...5 % |
| Network frequency limits | 47.5...63 Hz |
All specifications
| Parameter | Value |
|---|---|
| Number of motor poles | 10 |
| Phases | Single phase |
| IP degree of protection | IP65 |
| Mounting support | International standard flange |
| Mounting holes diameter | 0.2 in (5.5 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 3.0...3.2 in (75...82 mm) |
| Electrical connection | Printed circuit board connector |
| EMC filter | Integrated |
| Centring collar depth | 0.10 in (2.5 mm) |
| Length | 10.6 in (268 mm) |
| Category | US1PC5618287 |
| Shaft end | Untapped |
| Second shaft | Without second shaft end |
| Shaft length | 0.9 in (23 mm) |
| Holding brake | Without |
| Nominal speed | 4000 rpm 230 V single phase 1700 rpm 115 V single phase |
| Rotor inertia | 1.13 kg.cm² |
| Nominal torque | 19.5 lbf.in (2.2 N.m) 115 V single phase 15.05 lbf.in (1.7 N.m) 230 V single phase |
| Shaft diameter | 0.4 in (11 mm) |
| Torque constant | 0.63 N.m/A 68 °F (20 °C) |
| Back emf constant | 42.1 V/krpm 68 °F (20 °C) |
| Device short name | BMI |
| Motor flange size | 2.8 in (70 mm) |
| Peak stall torque | 58.4 lbf.in (6.6 N.m) 115 V single phase 58.4 lbf.in (6.6 N.m) 230 V single phase |
| Stator inductance | 7.8 mH 68 °F (20 °C) |
| Stator resistance | 2.7 Ohm 68 °F (20 °C) |
| Maximum axial force fa | 0.2 x Fr |
| Number of motor stacks | 2 |
| Continuous stall torque | 21.95 lbf.in (2.48 N.m) 115...230 V single phase |
| Maximum radial force fr | 710 N 1000 rpm 560 N 2000 rpm 490 N 3000 rpm 450 N 4000 rpm 410 N 5000 rpm 390 N 6000 rpm |
| Centring collar diameter | 2.4 in (60 mm) |
| Maximum mechanical speed | 8000 rpm |
| Speed feedback resolution | 32768 points/turn x 4096 turns |
| Distance shaft shoulder-flange | 0.10 in (2.5 mm) |
| Stator electrical time constant | 2.89 ms 68 °F (20 °C) |
Product details
Frequently asked questions
What is the phase configuration of BMI0702T27A?
It is a single-phase motor, rated for 100–240 V, 50/60 Hz supply.
What is the overall length of BMI0702T27A?
The motor body length is 10.6 inches (268 mm).
