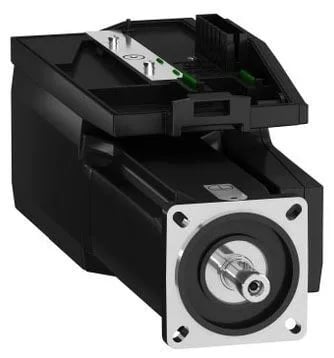

Schneider BMI0703P22A Lexium 32i servo motor, 3.4 N.m, 8000 rpm

MPNBMI0703P22A
Active

Schneider BMI0703P22A Motors — now discontinued, supplied from remaining surplus and broker stock.

$1,965.00Ref. price · indicative, final on quote
Schneider Electric BMI0703P22A datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMI0703P22A key specifications
ParameterValue
Feedback typeAbsolute multiturn SinCos Hiperface
Type of coolingNatural convection
Product or component typeServo motor with power stage
Supply voltage limits208...480 V
Supply voltage208...480 V - 15...10 %
Maximum current irms12.5 A 400 V, three phase 12.5 A 480 V, three phase 12.5 A 208 V, three phase
Output current 3s peak6 A 400 V 3 s
Continuous stall current2 A
Continuous output current2 A 8 kHz
Nominal output power900 W 400 V three phase 900 W 480 V three phase 450 W 208 V three phase
Supply frequency50/60 Hz - 5...5 %
Network frequency limits47.5...63 Hz

All specifications

BMI0703P22A additional specifications
ParameterValue
Number of motor poles10
PhasesThree phase
IP degree of protectionIP65
Mounting supportInternational standard flange
Mounting holes diameter0.2 in (5.5 mm)
Number of mounting holes4
Circle diameter of the mounting holes3.0...3.2 in (75...82 mm)
Electrical connectionPrinted circuit board connector
EMC filterIntegrated
Centring collar depth0.10 in (2.5 mm)
Length11.8 in (300 mm)
CategoryUS1PC5618287
Shaft endUntapped
Second shaftWithout second shaft end
Shaft length1.2 in (30 mm)
Holding brakeWithout
Nominal speed3300 rpm 400 V three phase 1600 rpm 208 V three phase 3900 rpm 480 V three phase
Rotor inertia1.67 kg.cm²
Nominal torque25.7 lbf.in (2.9 N.m) 208 V three phase 23.9 lbf.in (2.7 N.m) 400 V three phase 20.4 lbf.in (2.3 N.m) 480 V three phase
Shaft diameter0.6 in (14 mm)
Torque constant1.41 N.m/A 68 °F (20 °C)
Back emf constant95.39 V/krpm 68 °F (20 °C)
Device short nameBMI
Motor flange size2.8 in (70 mm)
Peak stall torque76.1 lbf.in (8.6 N.m) 208 V three phase 76.1 lbf.in (8.6 N.m) 400 V three phase 76.1 lbf.in (8.6 N.m) 480 V three phase
Stator inductance25.6 mH 68 °F (20 °C)
Stator resistance7.99 Ohm 68 °F (20 °C)
Maximum axial force fa0.2 x Fr
Number of motor stacks3
Continuous stall torque30.09 lbf.in (3.4 N.m) 208...480 V three phase
Maximum radial force fr730 N 1000 rpm 580 N 2000 rpm 510 N 3000 rpm 460 N 4000 rpm 430 N 5000 rpm 400 N 6000 rpm
Centring collar diameter2.4 in (60 mm)
Maximum mechanical speed8000 rpm
Speed feedback resolution131072 points/turn x 4096 turns
Distance shaft shoulder-flange0.10 in (2.5 mm)
Stator electrical time constant3.2 ms 68 °F (20 °C)

Product details

Overview

The BMI0703P22A is a Schneider Lexium 32i integrated servo motor rated 3.4 N.m continuous torque at 208...480 V three-phase, with a top speed of 8000 rpm and a 10-pole design. It delivers 900 W at 400 V or 480 V three-phase, draws 12.5 A at those voltages, and carries an absolute multiturn SinCos Hiperface encoder resolving 131072 points per turn over 4096 turns. Sealed to IP65 with natural convection cooling and no holding brake, it mounts on an international standard flange with a 15.24 mm untapped shaft.
