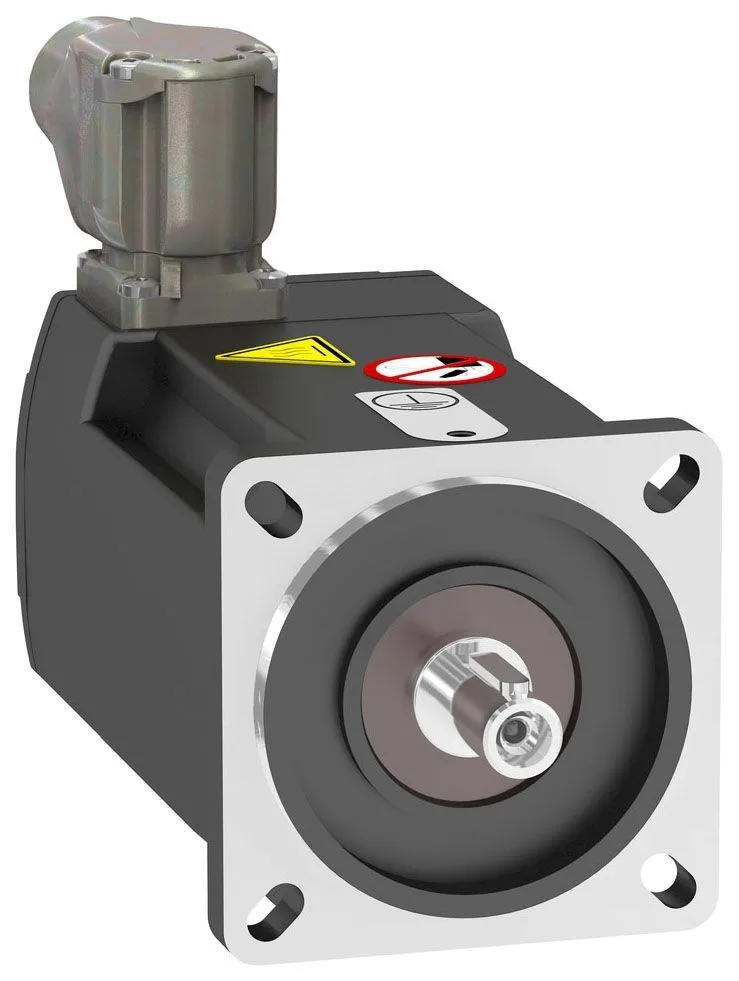

Schneider Electric BMP0701F3NA2A
MPNBMP0701F3NA2A
Active
Square D BMP0701F3NA2A 3600Rpm Motor|Square D BMP0701F3NA2A 3600Rpm Motor
$318.77 – $715.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type of cooling | Natural convection |
| Product or component type | Synchronous motor |
| Supply voltage | 480 V |
| Maximum current irms | 2.3 A ATV32 0.37 kW 400 V three phase 2.3 A ATV320 0.37 kW 400 V three phase |
| Nominal output power | 370 W ATV32 0.37 kW 400 V three phase 370 W ATV320 0.37 kW 400 V three phase |
| Maximum operating frequency | 300 Hz ATV32 0.37 kW 400 V three phase 300 Hz ATV320 0.37 kW 400 V three phase |
| Minimum operating frequency | 60 Hz ATV32 0.37 kW 400 V three phase 60 Hz ATV320 0.37 kW 400 V three phase |
| Nominal operating frequency | 250 Hz ATV32 0.37 kW 400 V three phase 250 Hz ATV320 0.37 kW 400 V three phase |
| Number of motor poles | 5 |
| Phases | Three phase |
| IP degree of protection | IP65 standard IP67 with IP67 kit |
| Mounting support | International standard flange |
All specifications
| Parameter | Value |
|---|---|
| Mounting holes diameter | 0.2 in (5.5 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 3.0...3.2 in (75...82 mm) |
| Electrical connection | Rotatable right-angled connector |
| Key width | 0.2 in (4 mm) |
| Centring collar depth | 0.10 in (2.5 mm) |
| Length | 4.8 in (122 mm) |
| Category | US1PC5318282 |
| Shaft end | Keyed |
| Shaft length | 0.9 in (23 mm) |
| Holding brake | Without |
| Nominal speed | 3000 rpm ATV32 0.37 kW 400 V three phase 3000 rpm ATV320 0.37 kW 400 V three phase |
| Rotor inertia | 0.59 kg.cm² |
| Nominal torque | 10.44 lbf.in (1.18 N.m) ATV32 0.37 kW 400 V three phase 10.44 lbf.in (1.18 N.m) ATV320 0.37 kW 400 V three phase |
| Shaft diameter | 0.4 in (11 mm) |
| Torque constant | 1.48 N.m/A 104 °F (40 °C) |
| Device short name | BMP |
| Motor flange size | 2.8 in (70 mm) |
| Stator inductance | 40.03 mH for q-axis winding 104 °F (40 °C) 40.03 mH for d-axis winding 104 °F (40 °C) |
| Stator resistance | 17.75 Ohm 104 °F (40 °C) |
| Maximum axial force fa | 0.2 x Fr |
| Number of motor stacks | 1 |
| Maximum radial force fr | 660 N 1000 rpm 520 N 2000 rpm 460 N 3000 rpm 410 N 4000 rpm |
| Centring collar diameter | 2.4 in (60 mm) |
| Maximum mechanical speed | 3600 rpm |
MPN
BMP0701F3NA2A
