Schneider Electric BMP1001F3NA2A
MPNBMP1001F3NA2A
Active

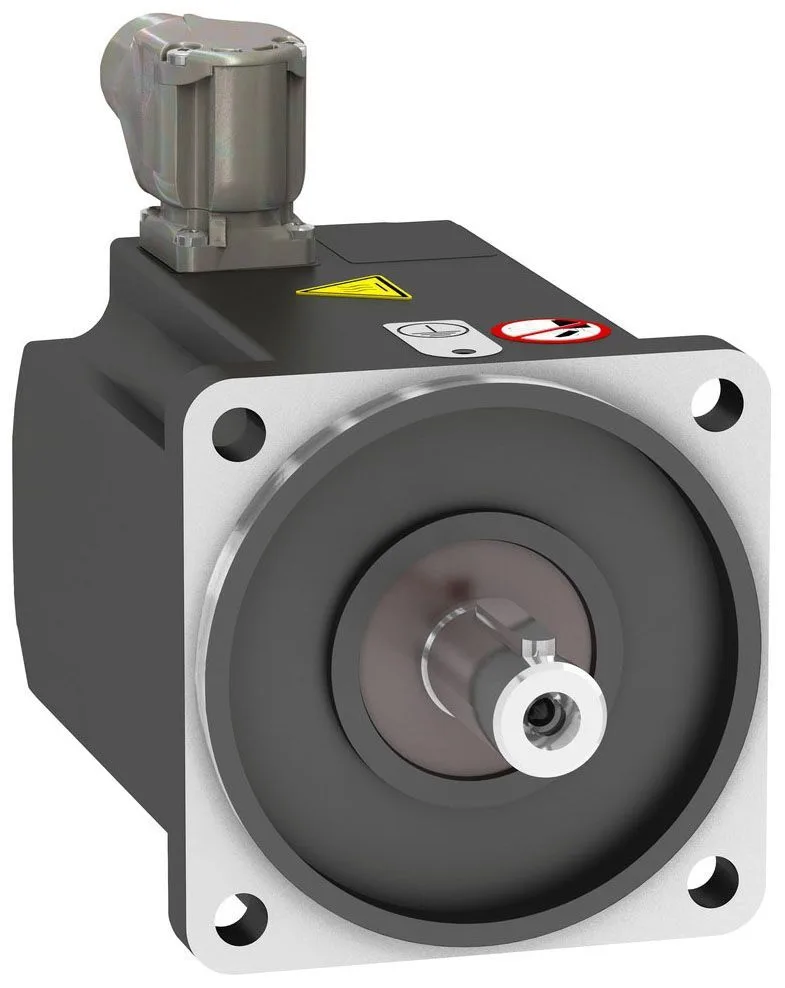

BMP1001F3NA2A by SCHNEIDER ELECTRIC
$401.32Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type of cooling | Natural convection |
| Product or component type | Synchronous motor |
| Supply voltage | 480 V |
| Maximum current irms | 3.5 A ATV32 0.75 kW 400 V three phase 4.5 A ATV32 1.1 kW 400 V three phase 3.5 A ATV320 0.75 kW 400 V three phase 4.5 A ATV320 1.1 kW 400 V three phase |
| Nominal output power | 750 W ATV32 0.75 kW 400 V three phase 750 W ATV32 1.1 kW 400 V three phase 750 W ATV320 0.75 kW 400 V three phase 750 W ATV320 1.1 kW 400 V three phase |
| Maximum operating frequency | 300 Hz ATV32 0.75 kW 400 V three phase 300 Hz ATV32 1.1 kW 400 V three phase 300 Hz ATV320 0.75 kW 400 V three phase 300 Hz ATV320 1.1 kW 400 V three phase |
| Minimum operating frequency | 25 Hz ATV32 0.75 kW 400 V three phase 25 Hz ATV32 1.1 kW 400 V three phase 25 Hz ATV320 0.75 kW 400 V three phase 25 Hz ATV320 1.1 kW 400 V three phase |
| Nominal operating frequency | 250 Hz ATV32 0.75 kW 400 V three phase 250 Hz ATV32 1.1 kW 400 V three phase 250 Hz ATV320 0.75 kW 400 V three phase 250 Hz ATV320 1.1 kW 400 V three phase |
| Number of motor poles | 5 |
| Phases | Three phase |
| IP degree of protection | IP65 standard IP67 with IP67 kit |
| Mounting support | International standard flange |
All specifications
| Parameter | Value |
|---|---|
| Mounting holes diameter | 0.4 in (9 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 4.5 in (115 mm) |
| Electrical connection | Rotatable right-angled connector |
| Key width | 0.2 in (6 mm) |
| Centring collar depth | 0.1 in (3.5 mm) |
| Length | 5.06 in (128.6 mm) |
| Category | US1PC5318282 |
| Shaft end | Keyed |
| Shaft length | 1.6 in (40 mm) |
| Holding brake | Without |
| Nominal speed | 3000 rpm ATV32 0.75 kW 400 V three phase 3000 rpm ATV32 1.1 kW 400 V three phase 3000 rpm ATV320 0.75 kW 400 V three phase 3000 rpm ATV320 1.1 kW 400 V three phase |
| Rotor inertia | 3.19 kg.cm² |
| Nominal torque | 21.15 lbf.in (2.39 N.m) ATV32 0.75 kW 400 V three phase 21.15 lbf.in (2.39 N.m) ATV32 1.1 kW 400 V three phase 21.15 lbf.in (2.39 N.m) ATV320 0.75 kW 400 V three phase 21.15 lbf.in (2.39 N.m) ATV320 1.1 kW 400 V three phase |
| Shaft diameter | 0.7 in (19 mm) |
| Torque constant | 1.71 N.m/A 104 °F (40 °C) |
| Device short name | BMP |
| Motor flange size | 3.9 in (100 mm) |
| Stator inductance | 15.3 mH for q-axis winding 104 °F (40 °C) 13.28 mH for d-axis winding 104 °F (40 °C) |
| Stator resistance | 4.54 Ohm 104 °F (40 °C) |
| Maximum axial force fa | 0.2 x Fr |
| Number of motor stacks | 1 |
| Maximum radial force fr | 900 N 1000 rpm 720 N 2000 rpm 630 N 3000 rpm 570 N 4000 rpm |
| Centring collar diameter | 3.7 in (95 mm) |
| Maximum mechanical speed | 3600 rpm |
MPN
BMP1001F3NA2A
