Schneider Electric BMP1402F3NA2A
MPNBMP1402F3NA2A
Active

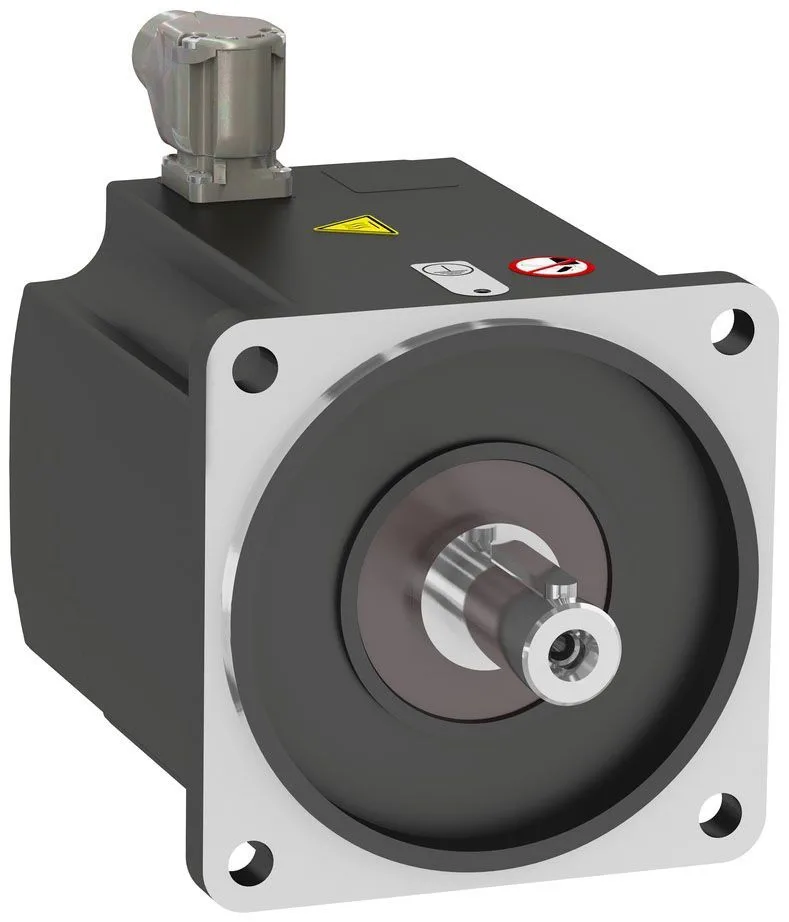

Square D BMP1402F3NA2A 3600Rpm Motor|Square D BMP1402F3NA2A 3600Rpm Motor
$770.00 – $1,775.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type of cooling | Natural convection |
| Product or component type | Synchronous motor |
| Supply voltage | 480 V |
| Maximum current irms | 16.5 A ATV32 2.2 kW 200 V single phase 10.7 A ATV32 3 kW 400 V three phase 14.3 A ATV32 4 kW 400 V three phase 16.5 A ATV320 2.2 kW 200 V single phase 10.7 A ATV320 3 kW 400 V three phase 14.3 A ATV320 4 kW 400 V three phase |
| Nominal output power | 3000 W ATV32 3 kW 400 V three phase 3000 W ATV32 4 kW 400 V three phase 2200 W ATV32 2.2 kW 200 V single phase 3000 W ATV320 3 kW 400 V three phase 3000 W ATV320 4 kW 400 V three phase 2200 W ATV320 2.2 kW 200 V single phase |
| Maximum operating frequency | 150 Hz ATV32 2.2 kW 200 V single phase 300 Hz ATV32 3 kW 400 V three phase 300 Hz ATV32 4 kW 400 V three phase 150 Hz ATV320 2.2 kW 200 V single phase 300 Hz ATV320 3 kW 400 V three phase 300 Hz ATV320 4 kW 400 V three phase |
| Minimum operating frequency | 13 Hz ATV32 2.2 kW 200 V single phase 25 Hz ATV32 3 kW 400 V three phase 25 Hz ATV32 4 kW 400 V three phase 13 Hz ATV320 2.2 kW 200 V single phase 25 Hz ATV320 3 kW 400 V three phase 25 Hz ATV320 4 kW 400 V three phase |
| Nominal operating frequency | 125 Hz ATV32 2.2 kW 200 V single phase 250 Hz ATV32 3 kW 400 V three phase 250 Hz ATV32 4 kW 400 V three phase 125 Hz ATV320 2.2 kW 200 V single phase 250 Hz ATV320 3 kW 400 V three phase 250 Hz ATV320 4 kW 400 V three phase |
| Number of motor poles | 5 |
| Phases | Three phase |
| IP degree of protection | IP65 standard IP67 with IP67 kit |
| Mounting support | International standard flange |
All specifications
| Parameter | Value |
|---|---|
| Mounting holes diameter | 0.4 in (11 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 6.5 in (165 mm) |
| Electrical connection | Rotatable right-angled connector |
| Key width | 0.3 in (8 mm) |
| Centring collar depth | 0.1 in (3.5 mm) |
| Length | 7.6 in (192 mm) |
| Category | US1PC5318282 |
| Shaft end | Keyed |
| Shaft length | 2.0 in (50 mm) |
| Holding brake | Without |
| Nominal speed | 1500 rpm ATV32 2.2 kW 200 V single phase 3000 rpm ATV32 3 kW 400 V three phase 3000 rpm ATV32 4 kW 400 V three phase 1500 rpm ATV320 2.2 kW 200 V single phase 3000 rpm ATV320 3 kW 400 V three phase 3000 rpm ATV320 4 kW 400 V three phase |
| Rotor inertia | 32 kg.cm² |
| Nominal torque | 124.00 lbf.in (14.01 N.m) ATV32 2.2 kW 200 V single phase 84.52 lbf.in (9.55 N.m) ATV32 3 kW 400 V three phase 84.52 lbf.in (9.55 N.m) ATV32 4 kW 400 V three phase 124.00 lbf.in (14.01 N.m) ATV320 2.2 kW 200 V single phase 84.52 lbf.in (9.55 N.m) ATV320 3 kW 400 V three phase 84.52 lbf.in (9.55 N.m) ATV320 4 kW 400 V three phase |
| Shaft diameter | 0.9 in (24 mm) |
| Torque constant | 1.48 N.m/A 104 °F (40 °C) |
| Device short name | BMP |
| Motor flange size | 5.5 in (140 mm) |
| Stator inductance | 4.23 mH for q-axis winding 104 °F (40 °C) 3.78 mH for d-axis winding 104 °F (40 °C) |
| Stator resistance | 0.34 Ohm 104 °F (40 °C) |
| Maximum axial force fa | 0.2 x Fr |
| Number of motor stacks | 2 |
| Maximum radial force fr | 2240 N 1000 rpm 1780 N 2000 rpm 1550 N 3000 rpm |
| Centring collar diameter | 5.1 in (130 mm) |
| Maximum mechanical speed | 3600 rpm |
