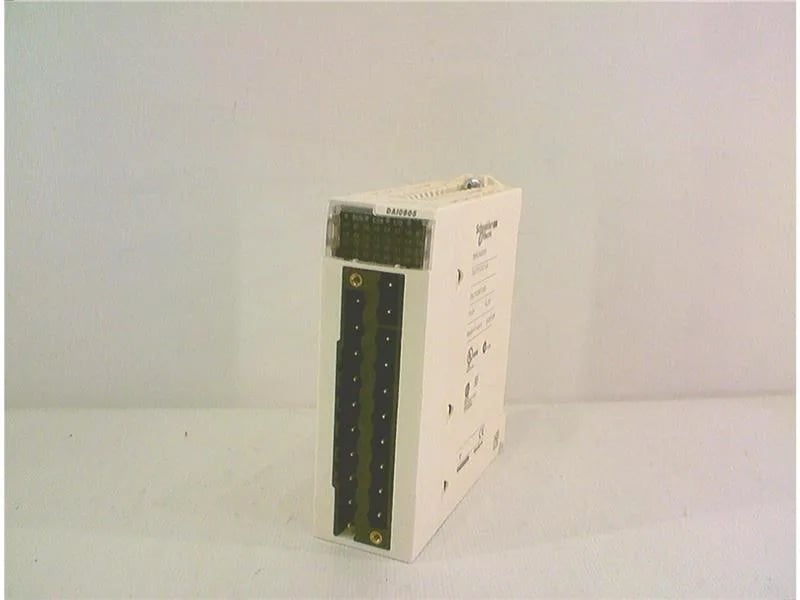

Schneider Electric BMX-DAI-0805

Schneider BMX-DAI-0805 Modicon X80 discrete input module, 8 inputs, 200...240 V

MPNBMX-DAI-0805
Obsolete

Schneider BMX-DAI-0805 Plc Expansion Modules — now discontinued, supplied from remaining surplus and broker stock.

$120.65 – $267.65Ref. price · indicative, final on quote
Schneider Electric BMX-DAI-0805 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMX-DAI-0805 key specifications
ParameterValue
Range of productModicon X80
Voltage_in200...240 V DC for isolated
Current in10.4 mA at 200...240 V AC
Shock30 gn
Altitude max0
Pollution degree2
Humidity max5
Depth86
Width32
Height103.7
StandardsIEC 61131-2
MarkingCE UKCA CULus RCM EAC

All specifications

BMX-DAI-0805 additional specifications
ParameterValue
Power170
IP ratingIP20
Dielectric1500 V AC at 50/60 Hz 1 min
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Status LED1 LED (green) module operating (RUN) 1 LED per channel (green) channel diagnostic 1 LED (red) module error (ERR) 1 LED (red) module I/O
Input_typeIsolated
Frequency50
Package_typePCE
Resistance> 10 MOhm 500 V DC
Voltage159
Local signalling1 LED (green) for module operating (RUN) 1 LED per channel (green) for channel diagnostic 1 LED (red) for module error (ERR) 1 LED (red) for module I/O
Application_typeIndustrial application
Response time10
Input wiring mode2 or 3 wires
Input compatibilityWith 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2 With 2-wire/3-wire proximity sensors conforming to IEC 61131-2 Type 2
Input_compatibilityWith 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2
Input impedance21000 Ohm
Switching current0.076
Storage temperature-40...85 °C
Protective treatmentStandard version
Discrete_input_count8
Discrete input number8
Main_product_or_component_typeDiscrete input module
Operating temperature0

Product details

Overview

The BMX-DAI-0805 is a Schneider Modicon X80 discrete input module providing 8 isolated inputs rated for 200...240 V AC, with a 10 ms response time and 30 gn shock tolerance. It carries CE, UKCA, cULus, RCM, and EAC markings, complies with IEC 61131-2, and is sealed to IP20 for cabinet-mount use.

The BMX-DAI-0805 has 8 discrete inputs, while the BMXDAI1602 has 16 inputs — both are isolated AC modules in the same X80 family, so the BMXDAI1602 is the right pick when the BOM calls for double the channel count without changing the supply voltage.
