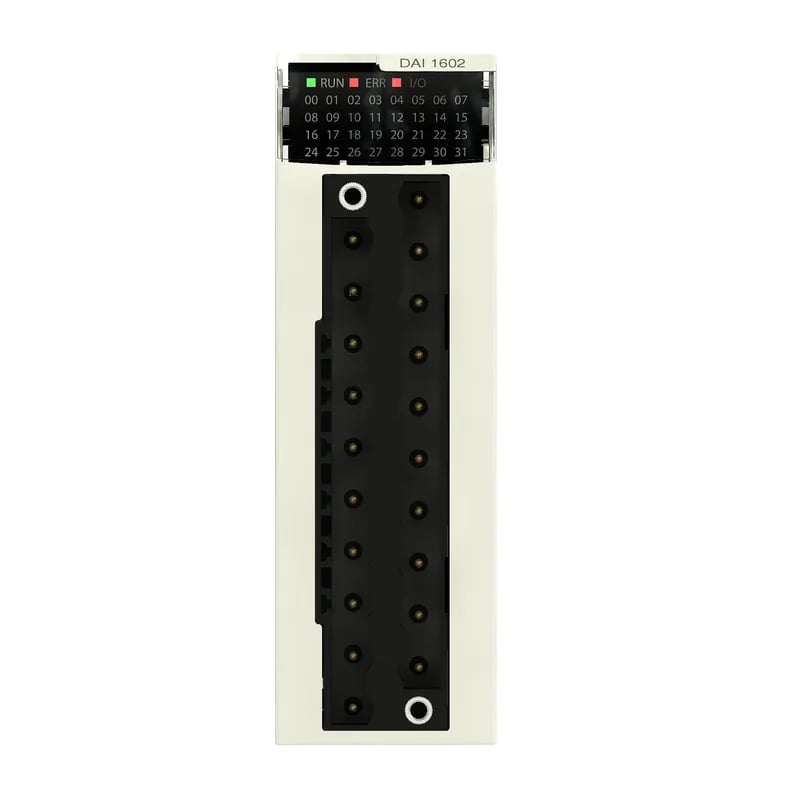

Schneider Electric BMXDAI1602H

Schneider BMXDAI1602H Modicon X80 16-Input Discrete Input Mo

MPNBMXDAI1602H
Active

Schneider Electric BMXDAI1602H, Modicon X80 discrete input module, 16 channels, 24 V AC/DC positive logic (sink), IP20, conformal coated.

$580.00Ref. price · indicative, final on quote
Schneider Electric BMXDAI1602H datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXDAI1602H key specifications
ParameterValue
Protection type1 external fuse per group of channel0.5 A fast blow
Range of productModicon X80
Product or component typeDiscrete input module
Discrete input voltage24 V AC for isolated 24 V DC
Voltage state 0 guaranteed= 2 mA AC >= 2 mA DC
Voltage state 1 guaranteed>= 15 V
Voltage detection threshold< 14 V AC/DC sensor fault > 18 V AC/DC sensor OK
Current consumption<= 107 mA at 3.3 V DC
Discrete input current3 mA at 24 V AC 3.9 mA at 24 V DC
Current state 0 guaranteed10 MOhm 500 V DC
Typical current consumption76 mA DC
Sensor power supply: 20...26 V 60 °C : 19...30 V

All specifications

BMXDAI1602H additional specifications
ParameterValue
Power dissipation in3 W
IP degree of protectionIP20
AC activation response time15 ms
AC deactivation response time20 ms
Pollution degree2
Shock resistance30 gn
Relative humidity5...95 % at 55 °C without condensation
Operating altitude0...2000 m 2000...5000 m with derating
Vibration resistance3 gn
Depth86 mm
Width32 mm
Height103.7 mm
Product weight0.115 kg
MTBF reliability1125000 H
StandardsIEC 61131-2
MarkingCE UKCA CULus EAC RCM
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Local signalling1 LED (green) for module operating (RUN) 1 LED per channel (green) for channel diagnostic 1 LED (red) for module error (ERR) 1 LED (red) for module I/O
Input wiring mode2 or 3 wires
Device applicationIndustrial application in severe environment
Dielectric strength1500 V AC at 50/60 Hz 1 minute, primary/secondary
Discrete input logicPositive logic (sink)
Protective treatmentConformal coating
Discrete input number16 isolated conforming to IEC 60947-5-2 at 24 V AC 16 isolated conforming to IEC 61131-2 Type 1 at 24 V DC
Environmental characteristicGas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2
Isolation between channels and bus1500 V for 1 minute
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation-25...70 °C

Product details

The BMXDAI1602H is a 16-channel discrete input module from the Modicon X80 family, built for 24 V AC/DC positive-logic (sink) wiring. Each input draws 3.9 mA at 24 V DC (3 mA at 24 V AC), with response times of 15 ms on and 20 ms off. The module is conformal coated and rated IP20, making it suitable for industrial panels in severe environments.

Global certifications include CE, UKCA, CULus, EAC, and RCM, conforming to IEC 61131-2 and the LV/EMC directives 2014/35/EU and 2014/30/EU.

Dielectric strength is 1500 V AC between primary/secondary, with isolation of 1500 V between channels and backplane. Pollution degree 2 with conformal coating and IP20 housing.

Frequently asked questions

What compliance certifications does the BMXDAI1602H carry?

It is marked CE, UKCA, CULus, EAC, and RCM, and complies with IEC 61131-2 and the LV/EMC directives 2014/35/EU and 2014/30/EU.
