16 isolated AC inputs at 200–240 V

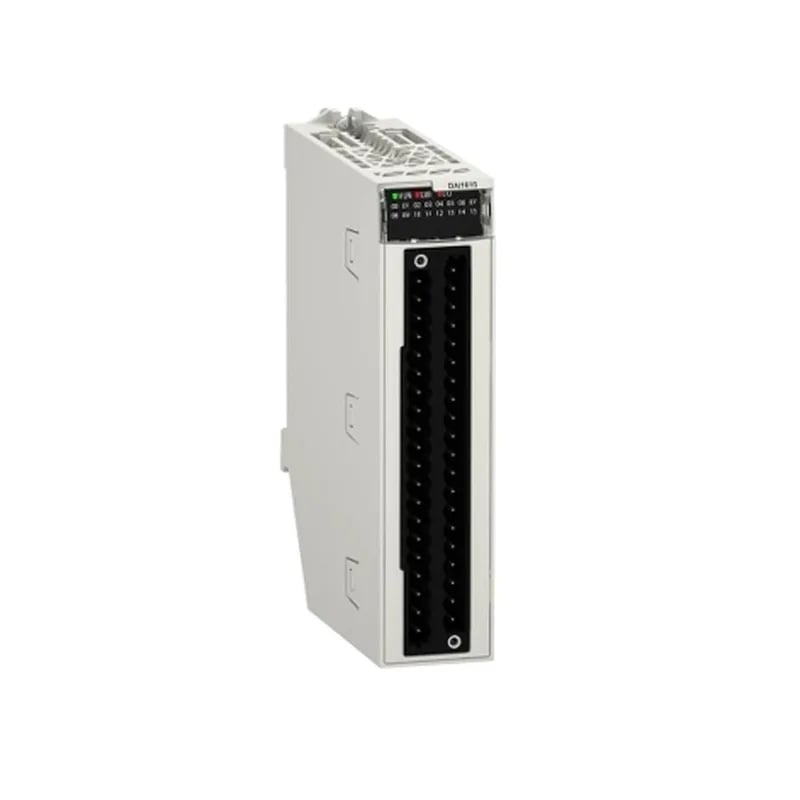

The Schneider BMXDAI1615 is a discrete input module in the Modicon X80 range. It offers 16 isolated inputs, each accepting 200–240 V AC at 3 mA. Wiring is two- or three-wire, positive logic (sink). Isolation between channels and to the backplane bus is rated 1780 Vrms for 1 minute. That per-channel dielectric strength means you can mix phases on adjacent inputs without worry. Activation response is 10 ms, deactivation 20 ms. Voltage detection thresholds: below 80 V AC flags a sensor fault, above 170 V AC is a valid 1.
Compliance and markings
Marked CE, UKCA, CULus, EAC, RCM. Designed to IEC 61131-2. Pollution degree 2. IP20. Operating temperature 0–60 °C, storage −40–85 °C. Shock 30 gn, vibration 3 gn. Altitude 0–2000 m standard, derated to 5000 m.
