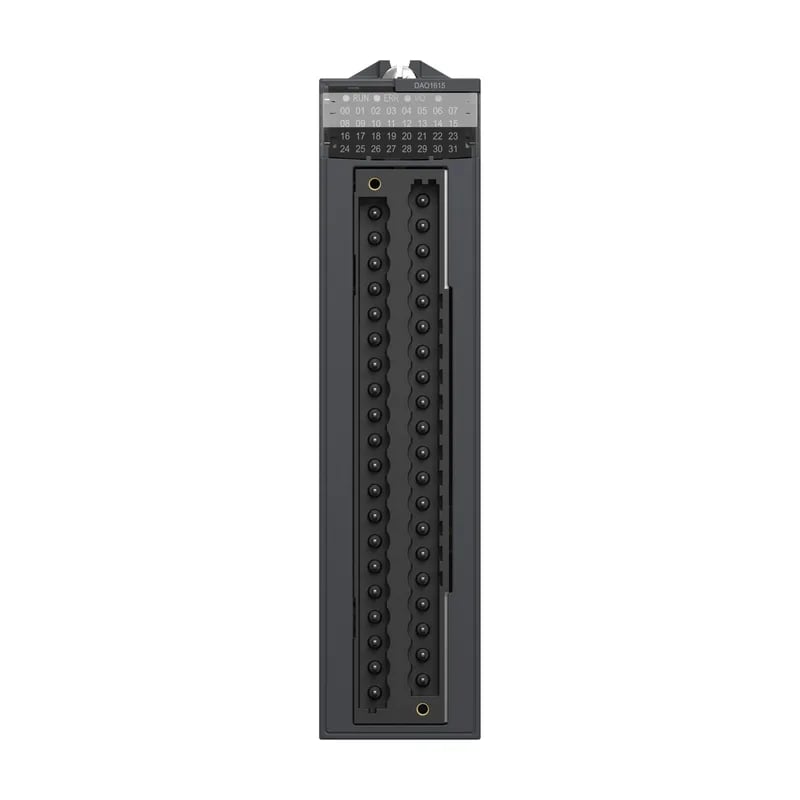

Schneider BMXDAO1615 Modicon X80 discrete output module, 16-channel triac

MPNBMXDAO1615
Active

Schneider BMXDAO1615 Electrical Isolation Transformers.

$379.73Ref. price · indicative, final on quote
Schneider Electric BMXDAO1615 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXDAO1615 key specifications
ParameterValue
Protection type1 external fuse4 A fast blow
Range of productModicon X80
Discrete output typeTriac
Product or component typeDiscrete output module
Maximum voltage drop10 MOhm 500 V DC
Discrete output voltage24...240 V 20...264 V AC
Inrush current30 A
Current per channel3 A at 40 °C 1.2 A at 60 °C
Output current limits0.005...10 A
Discrete output current3 A
Maximum leakage current1 mA at state 0 24 V 1 mA at state 0 48 V 2 mA at state 0 115 V 2.5 mA at state 0 240 V
Maximum current per module10 A 40 °C 4 A 60 °C

All specifications

BMXDAO1615 additional specifications
ParameterValue
Typical current consumption61 mA at 3.3 V DC 50 mA at 24 V DC
Maximum current per output common4 A
Sensor power supply20...264 V
Power dissipation in1.45 W
Network frequency50/60 Hz
Network frequency limits47...63 Hz
IP degree of protectionIP20
Response time on output<= 10 ms resistive deactivation
Shock resistance30 gn
Relative humidity0...95 % at 0...60 °C without condensation
Operating altitude0...2000 m 2000...5000 m with derating factor
Vibration resistance3 gn
MTBF reliability500000 H
Status LED1 LED (green) module operating (RUN) 1 LED per channel (green) channel diagnostic 1 LED (red) module error (ERR) 1 LED (red) module I/O
Dielectric strength3000 V AC at 50/60 Hz 1 min
Protective treatmentStandard version
Discrete output number16 conforming to IEC 61131-2
Output overload protectionWith varistor
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation0...60 °C

Product details

Overview

The BMXDAO1615 is a Schneider Modicon X80 discrete output module packing 16 isolated triac outputs rated 3 A each at 24...240 V AC (20...264 V AC). It draws 20 W from the backplane and is sealed to IP20. Dielectric strength is 3000 V AC at 50/60 Hz for 1 minute, and the module withstands 30 gn shock. Output overload protection uses a varistor; an external 4 A fast-blow fuse per group is required. Lifecycle status is active, meaning current production and full distribution support.

Selection vs BMXDAO1615H

The BMXDAO1615H is the same 16-channel triac module but with conformal coating for severe environments and a reduced per-channel current of 1.2 A. Choose the BMXDAO1615 for standard environments and full 3 A drive; the BMXDAO1615H for corrosive or humid conditions where the coating matters more than current headroom.

MPN
BMXDAO1615
