Schneider Electric BMXDAO1615H

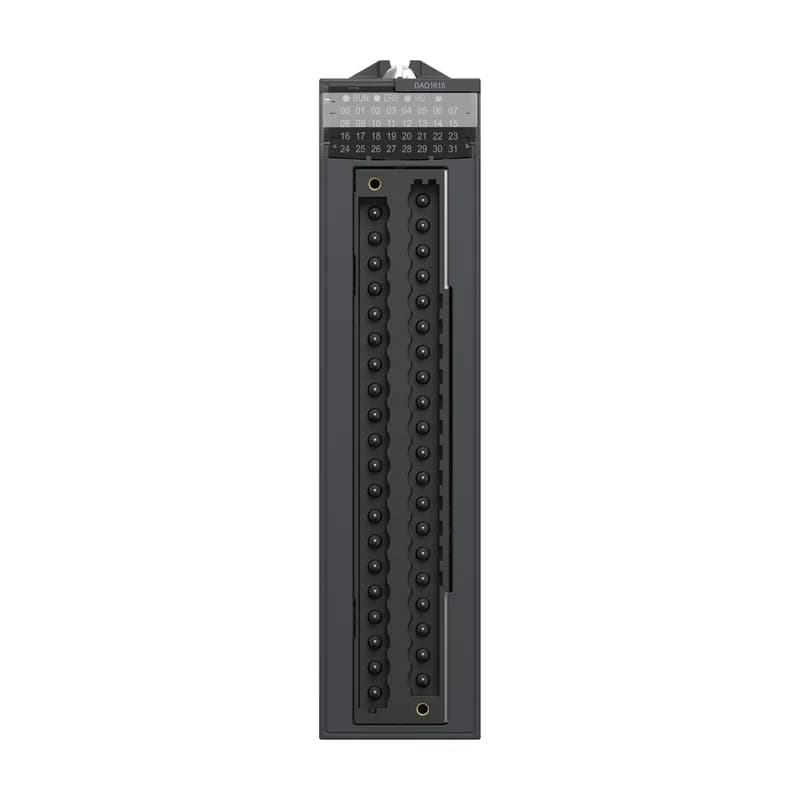

BMXDAO1615H Modicon X80 16-Ch Triac Output Module, 1.2 A, Se

MPNBMXDAO1615H
Active

Modicon X80 discrete output module, 16 isolated triac channels, 24…240 V AC, 1.2 A per channel, conformal coated, IP20, active production.

$453.39Ref. price · indicative, final on quote
Schneider Electric BMXDAO1615H datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXDAO1615H key specifications
ParameterValue
Protection type1 external fuse4 A fast blow
Range of productModicon X80
Discrete output typeTriac
Product or component typeDiscrete output module
Maximum voltage drop10 MOhm 500 V DC
Discrete output voltage24...240 V 20...264 V AC
Inrush current30 A
Current per channel1.2 A at 60 °C 0.6 A at 70 °C
Output current limits0.005...10 A
Discrete output current1.2 A
Maximum leakage current1 mA at state 0 24 V 1 mA at state 0 48 V 2 mA at state 0 115 V 2.5 mA at state 0 240 V
Maximum current per module4 A 60 °C 2 A 70 °C

All specifications

BMXDAO1615H additional specifications
ParameterValue
Typical current consumption61 mA at 3.3 V DC 50 mA at 24 V DC
Maximum current per output common4 A
Sensor power supply20...264 V
Power dissipation in1.45 W
Network frequency50/60 Hz
Network frequency limits47...63 Hz
IP degree of protectionIP20
Response time on output<= 10 ms resistive deactivation
Shock resistance30 gn
Relative humidity0...95 % at -25...70 °C without condensation
Operating altitude0...2000 m 2000...5000 m with derating factor
Vibration resistance3 gn
MTBF reliability500000 H
Status LED1 LED (green) module operating (RUN) 1 LED per channel (green) channel diagnostic 1 LED (red) module error (ERR) 1 LED (red) module I/O
Dielectric strength3000 V AC at 50/60 Hz 1 min
Protective treatmentConformal coating
Discrete output number16 conforming to IEC 61131-2
Output overload protectionWith varistor
Environmental characteristicGas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2
Product specific applicationFor severe environments
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation-25...70 °C

Product details

The BMXDAO1615H: Each channel is isolated from the backplane and from each other; no shared commons beyond the 4 A per common group limit. The module draws 61 mA from the 3.3 V rail and 50 mA from the 24 V backplane supply, so power budget in the rack is modest.

Built for severe environments

This module carries a conformal coating and is rated for gas (Gx, 3C4), dust (3S4), sand (3S4), salt (level 2), and mold (3B2) resistance. Operating temperature spans -25…70 °C, storage -40…85 °C, and it shrugs off 30 gn shock and 3 gn vibration. That's a module you can drop into a water treatment plant, a steel mill, or an offshore skid without second-guessing the environment.

Key ratings to watch when sizing

Per-channel current: 1.2 A at 60 °C, derated to 0.6 A at 70 °C. Module total: 4 A at 60 °C, 2 A at 70 °C. Off-state leakage climbs with supply voltage — 1 mA at 24 V, 2.5 mA at 240 V — so if your load needs true zero-power when off, factor in that bleed. Response time is ≤10 ms for resistive deactivation, fast enough for medium-speed on/off control but not for PWM. Inrush current is 30 A, so a single fast-blow 4 A fuse per channel (external, not integrated) protects the triac. A varistor on each output handles overvoltage spikes from inductive kicks — no external snubber needed for typical motorized valve or contactor coils. Dielectric strength is 3000 V AC for 1 minute between output and backplane — solid isolation for environments with high common-mode noise.

Physical and diagnostic fit

Status LEDs: one green RUN LED for module operational, one red ERR LED for module error, one green LED per channel for channel diagnostics. That's enough to ring out a dead output at the cabinet door without a laptop. IP20 front, conformal coated board — mounts in any Modicon X80 rack slot, takes up one position. Power dissipation is only 1.45 W typical, so no forced air needed even in a densely packed rack at 60 °C.

A note on the rating labels

Absolute altitude limit: 2000 m full rating, 2000…5000 m with derating. If your site is above 2000 m, let me know — we'll recalculate headroom.

Frequently asked questions

What status LEDs does the BMXDAO1615H have?

One green RUN LED for module operating, one red ERR LED for module error, and one green LED per channel for channel diagnostics. No BAUD or network status — it's a simple output module.

What is the inrush current rating?

The module is rated for 30 A inrush. Each output should be protected externally with a 4 A fast-blow fuse; the inrush won't blow it as long as the load is within the module's rated current.
