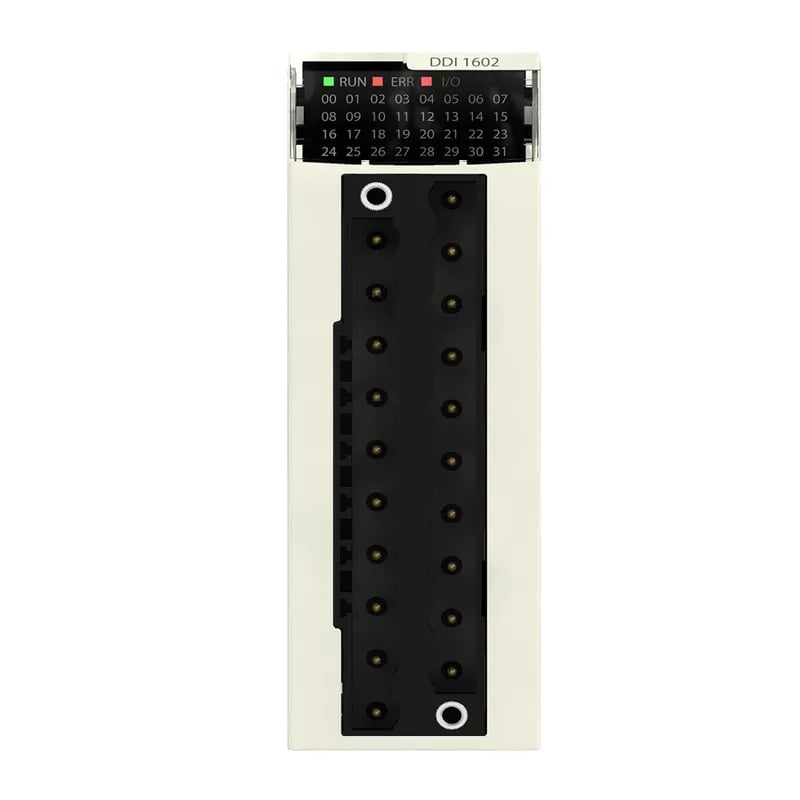

Schneider Modicon X80 discrete input module, BMXDDI1602H, 16 inputs 24 V DC sink logic, IP20, 32 mm wide, conformal coated.
| Parameter | Value |
|---|---|
| Protection type | 1 external fuse per group of channel0.5 A fast blow reverse polarity protection |
| Range of product | Modicon X80 |
| Product or component type | Discrete input module |
| Discrete input voltage | 24 V DC for isolated |
| Voltage state 0 guaranteed | < 5 V |
| Voltage state 1 guaranteed | >= 11 V |
| Voltage detection threshold | < 14 V DC sensor fault > 18 V DC sensor OK |
| Current consumption | <= 107 mA at 3.3 V DC |
| Discrete input current | 3.5 mA at 24 V DC |
| Current state 0 guaranteed | 10 MOhm 500 V DC |
| Current state 1 guaranteed | >= 2 mA |
| Typical current consumption | 76 mA DC |
| Parameter | Value |
|---|---|
| Sensor power supply | : 19...30 V 60 °C : 21.1...26.4 V 70 °C |
| Power dissipation in | 2.5 W |
| IP degree of protection | IP20 |
| DC maximum response time | 7 ms |
| DC typical response time | 4 ms |
| Pollution degree | 2 |
| Shock resistance | 30 gn |
| Relative humidity | 5...95 % at 55 °C without condensation |
| Operating altitude | 0...2000 m 2000...5000 m with derating |
| Vibration resistance | 3 gn |
| Depth | 86 mm |
| Width | 32 mm |
| Height | 103.7 mm |
| Product weight | 0.115 kg |
| MTBF reliability | 775000 H |
| Standards | IEC 61131-2 |
| Marking | CE UKCA CULus RCM EAC |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Local signalling | 1 LED (green) for module operating (RUN) 1 LED per channel (green) for channel diagnostic 1 LED (red) for module error (ERR) 1 LED (red) for module I/O |
| Input wiring mode | 2 or 3 wires |
| Device application | Industrial application in severe environment |
| Dielectric strength | 1500 V AC at 50/60 Hz 1 minute, primary/secondary |
| Discrete input logic | Positive logic (sink) |
| Protective treatment | Conformal coating |
| Discrete input number | 16 isolated conforming to IEC 60947-5-2 at 24 V DC 16 isolated conforming to IEC 61131-2 type 3 at 24 V DC |
| Hot swapping fallback | Yes |
| Environmental characteristic | Gas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2 |
| Isolation between channels and bus | 1500 V for 1 minute |
| Ambient air temperature for storage | -40...85 °C |
| Ambient air temperature for operation | -25...70 °C |
Width is 32 mm, depth 86 mm — narrow enough for tight racks. IP20 means it needs a panel enclosure. Inputs are 24 V DC sink, 3.5 mA typical. Response time 4 ms typical, 7 ms max — fast enough for most discrete sensing. Conformal coating covers gas (class Gx), dust (3S4), salt (level 2), mold (3B2), and more. That's serious for food, beverage, or chemical lines.
It carries CE, UKCA, CULus, RCM, EAC markings, complies with IEC 61131-2, and meets low-voltage (2014/35/EU) and EMC (2014/30/EU) directives.
Width 32 mm and depth 86 mm, with a height of 103.7 mm.
24 V DC with positive logic (sink). The guaranteed ON voltage is >= 11 V, OFF < 5 V.
