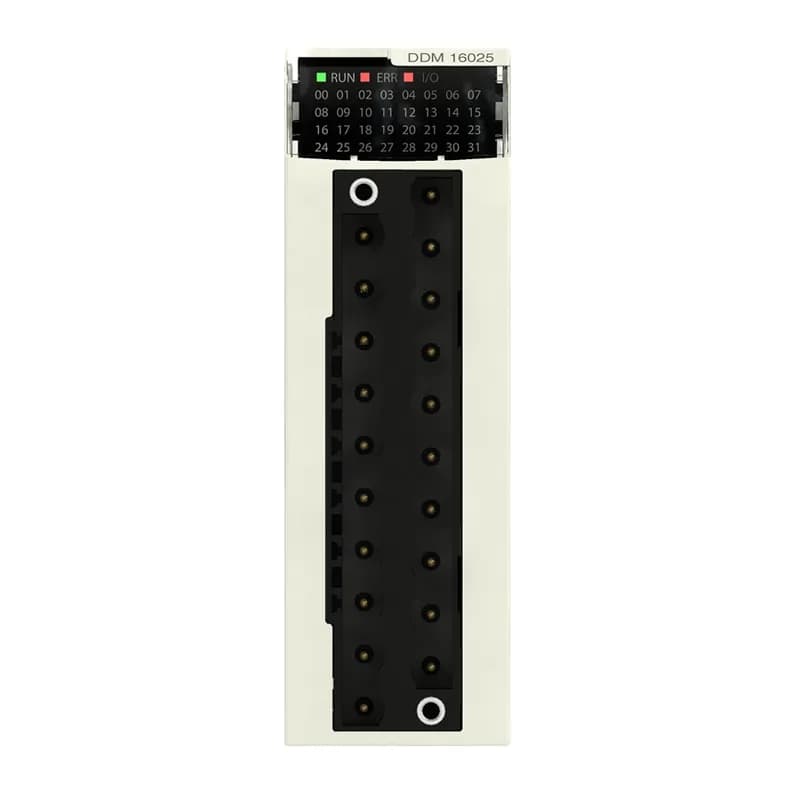

BMXDDM16025 Modicon X80 8DI/8DO Relay Module

MPNBMXDDM16025
Active

Schneider Electric Modicon X80 discrete I/O module, BMXDDM16025, 8 current sink inputs, 8 relay outputs, 24 V DC, 2 A.

$181.61 – $415.00Ref. price · indicative, final on quote
Schneider Electric BMXDDM16025 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXDDM16025 key specifications
ParameterValue
Input typeCurrent sink (logic positive)
Protection type1 external fuse per group of input channel0.5 A fast blow reverse polarity protection on input 1 external fuse per output channel or group of output channel fast blow
Range of productModicon X80
Discrete output typeRelay
Product or component typeDiscrete I/O module
Discrete input voltage24 V DC, discrete input logic: positive
Discrete output voltage24 V 19...30 V DC 24...240 V 19...264 V AC
Maximum switching voltage125 V DC 264 V AC
Voltage detection threshold< 14 V DC sensor fault > 18 V DC sensor OK
Discrete input current3.5 mA
Discrete output current2000 mA
Minimum switching current1 mA 5 V DC

All specifications

BMXDDM16025 additional specifications
ParameterValue
Current state 0 guaranteed10 MOhm 500 V DC
Current state 1 guaranteed>= 2 mA
Typical current consumption79 mA at 3.3 V DC
Sensor power supply19...30 V
Power dissipation in3.1 W
Switching frequency1 Hz
IP degree of protectionIP20
Response time on output<= 10 ms activation
DC maximum response time7 ms
DC typical response time4 ms
Shock resistance30 gn
Relative humidity5...95 % at 55 °C without condensation
Operating altitude0...2000 m 2000...5000 m with derating factor
Vibration resistance3 gn
MTBF reliability940000 H
Electrical durabilityAC-14: 100000 cycles at 240 VA 240 V (load factor 0.7) AC-14: 100000 cycles at 300 VA 200 V (load factor 0.7) AC-15: 100000 cycles at 120 VA 240 V (load factor 0.35) AC-15: 100000 cycles at 200 VA 200 V (load factor 0.35) DC-13: 100000 cycles at 24 W 24 V AC-14: 300000 cycles at 72 VA 240 V (load factor 0.7) AC-14: 300000 cycles at 80 VA 200 V (load factor 0.7) AC-15: 300000 cycles at 36 VA 240 V (load factor 0.35) AC-15: 300000 cycles at 60 VA 200 V (load factor 0.35) DC-13: 300000 cycles at 7.2 W 24 V
Mechanical durability20000000 cycles
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Status LED1 LED (green) module operating (RUN) 1 LED per channel (green) channel diagnostic 1 LED (red) module error (ERR) 1 LED (red) module I/O
Dielectric strength1500 V AC at 50/60 Hz 1 minute, primary/secondary 2830 V AC at 50/60 Hz 1 minute, output relay 500 V DC 1 minute, between group of I/O
Input compatibilityWith 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2 With 2-wire/3-wire proximity sensors conforming to IEC 61131-2 type 3
Protective treatmentStandard version
Discrete input number8
Paralleling of inputsNo
Discrete output number8
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation0...60 °C

Product details

Module overview and wiring constraints

The BMXDDM16025 is an 8-input / 8-output Modicon X80 slice. Inputs are current sink (logic positive) at 24 V DC, drawing 3.5 mA per channel. They accept 2-wire or 3-wire proximity sensors per IEC 60947-5-2 and IEC 61131-2 type 3. Outputs are relay, rated 2 A at 24...240 V AC or 19...30 V DC. The switching frequency is limited to 1 Hz – no high-speed pulse trains from these relay contacts.

Compliance and environmental limits

The module carries CE marking under 2014/35/EU (low voltage) and 2014/30/EU (EMC) directives – that's the documentation you'll attach to the machine declaration. MTBF is 940,000 hours, a solid figure for continuous operation. Ambient operating range is 0...60 °C, storage -40...85 °C. IP20 means install it inside a rated enclosure. Shock resistance is 30 gn, vibration 3 gn. Above 2000 m altitude, derating applies.

Protection and wiring notes

Each group of inputs needs an external 0.5 A fast-blow fuse plus reverse polarity protection. Output relays require external fusing per channel or group. Use shielded cable for long sensor runs – the module itself provides no galvanic isolation between input groups.

Frequently asked questions

What directives does BMXDDM16025 comply with?

It complies with 2014/35/EU Low Voltage Directive and 2014/30/EU EMC Directive, per the manufacturer's declaration.

What is the input type of BMXDDM16025?

Input type is current sink (logic positive). The 24 V DC inputs draw 3.5 mA each and are compatible with 2- and 3-wire proximity sensors per IEC 60947-5-2 and IEC 61131-2 type 3.
