Schneider Electric BMXDDM16025H

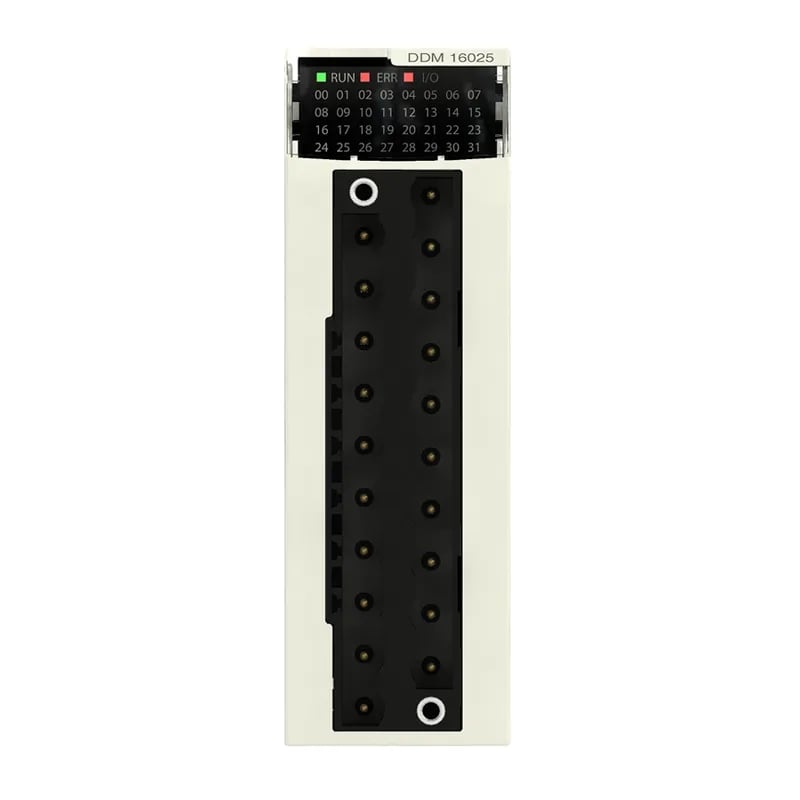

Schneider BMXDDM16025H Modicon X80 IO Module, 8 In 8 Relay

MPNBMXDDM16025H
Active

Schneider Modicon X80 discrete I/O module, BMXDDM16025H, 8 current-sink inputs and 8 relay outputs, conformal coated.

$215.90 – $492.56Ref. price · indicative, final on quote
Schneider Electric BMXDDM16025H datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXDDM16025H key specifications
ParameterValue
Input typeCurrent sink (logic positive)
Protection type1 external fuse per group of input channel0.5 A fast blow reverse polarity protection on input 1 external fuse per output channel or group of output channel fast blow
Range of productModicon X80
Discrete output typeRelay
Product or component typeDiscrete I/O module
Discrete input voltage24 V DC, discrete input logic: positive
Discrete output voltage24 V 19...30 V DC 24...240 V 19...264 V AC
Maximum switching voltage125 V DC 264 V AC
Voltage detection threshold< 14 V DC sensor fault > 18 V DC sensor OK
Discrete input current3.5 mA
Discrete output current2000 mA
Minimum switching current1 mA 5 V DC

All specifications

BMXDDM16025H additional specifications
ParameterValue
Current state 0 guaranteed10 MOhm 500 V DC
Current state 1 guaranteed>= 2 mA
Typical current consumption79 mA at 3.3 V DC
Sensor power supply19...30 V 60 °C 21.1...29.0 V 70 °C
Power dissipation in3.1 W
Switching frequency1 Hz
IP degree of protectionIP20
Response time on output<= 10 ms activation
DC maximum response time7 ms
DC typical response time4 ms
Shock resistance30 gn
Relative humidity5...95 % at 55 °C without condensation
Operating altitude0...2000 m 2000...5000 m with derating factor
Vibration resistance3 gn
MTBF reliability940000 H
Electrical durabilityAC-14: 100000 cycles at 120 VA 240 V at 70 °C (load factor 0.7) AC-14: 100000 cycles at 150 VA 200 V at 70 °C (load factor 0.7) AC-14: 100000 cycles at 240 VA 240 V at -25...60 °C (load factor 0.7) AC-14: 100000 cycles at 300 VA 200 V at -25...60 °C (load factor 0.7) AC-15: 100000 cycles at 100 VA 200 V at 70 °C (load factor 0.35) AC-15: 100000 cycles at 120 VA 240 V at -25...60 °C (load factor 0.35) AC-15: 100000 cycles at 200 VA 200 V at -25...60 °C (load factor 0.35) AC-15: 100000 cycles at 60 VA 240 V at 70 °C (load factor 0.35) DC-13: 100000 cycles at 12 W 24 V at 70 °C DC-13: 100000 cycles at 24 W 24 V at -25...60 °C AC-14: 300000 cycles at 36 VA 240 V at 70 °C (load factor 0.7) AC-14: 300000 cycles at 40 VA 200 V at 70 °C (load factor 0.7) AC-14: 300000 cycles at 72 VA 240 V at -25...60 °C (load factor 0.7) AC-14: 300000 cycles at 80 VA 200 V at -25...60 °C (load factor 0.7) AC-15: 300000 cycles at 18 VA 240 V at 70 °C (load factor 0.35) AC-15: 300000 cycles at 30 VA 200 V at 70 °C (load factor 0.35) AC-15: 300000 cycles at 36 VA 240 V at -25...60 °C (load factor 0.35) AC-15: 300000 cycles at 60 VA 200 V at -25...60 °C (load factor 0.35) DC-13: 300000 cycles at 3.6 W 24 V at 70 °C DC-13: 300000 cycles at 7.2 W 24 V at -25...60 °C
Mechanical durability20000000 cycles
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Status LED1 LED (green) module operating (RUN) 1 LED per channel (green) channel diagnostic 1 LED (red) module error (ERR) 1 LED (red) module I/O
Dielectric strength1500 V AC at 50/60 Hz 1 minute, primary/secondary 2830 V AC at 50/60 Hz 1 minute, output relay 500 V DC 1 minute, between group of I/O
Input compatibilityWith 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2 With 2-wire/3-wire proximity sensors conforming to IEC 61131-2 type 3
Protective treatmentConformal coating
Discrete input number8
Paralleling of inputsNo
Discrete output number8
Environmental characteristicGas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2
Product specific applicationFor severe environments
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation-25...70 °C

Product details

Module identity and I/O mapping

BMXDDM16025H is a Modicon X80 discrete I/O module with 8 current-sink inputs (24 V DC, 3.5 mA per channel) and 8 relay outputs (2 A max, switching up to 264 V AC or 125 V DC). The inputs accept 2-wire/3-wire proximity sensors per IEC 60947-5-2 and IEC 61131-2 type 3.

Relay output timing and endurance

Relay activation response time is <= 10 ms. Electrical durability includes 100000 cycles at 120 VA 240 V (AC-14) at 70 °C, mechanical durability 20000000 cycles, switching frequency 1 Hz.

Severe environment readiness

The module carries conformal coating and is rated for gas (class 3C4), dust (3S4), sand (3S4), salt (level 2), and fungal spore (3B2) resistance. Operating altitude up to 5000 m with derating, and vibration resistance at 3 gn. This makes it a direct fit for applications requiring robust protection — chemical processing, marine, or outdoor cabinets.

Frequently asked questions

What is BMXDDM16025H's listed input type?

Input type is current sink (logic positive), operating at 24 V DC with a nominal current of 3.5 mA per channel.

What compliance directives does BMXDDM16025H meet?

It complies with 2014/35/EU low voltage directive and 2014/30/EU electromagnetic compatibility directive.
