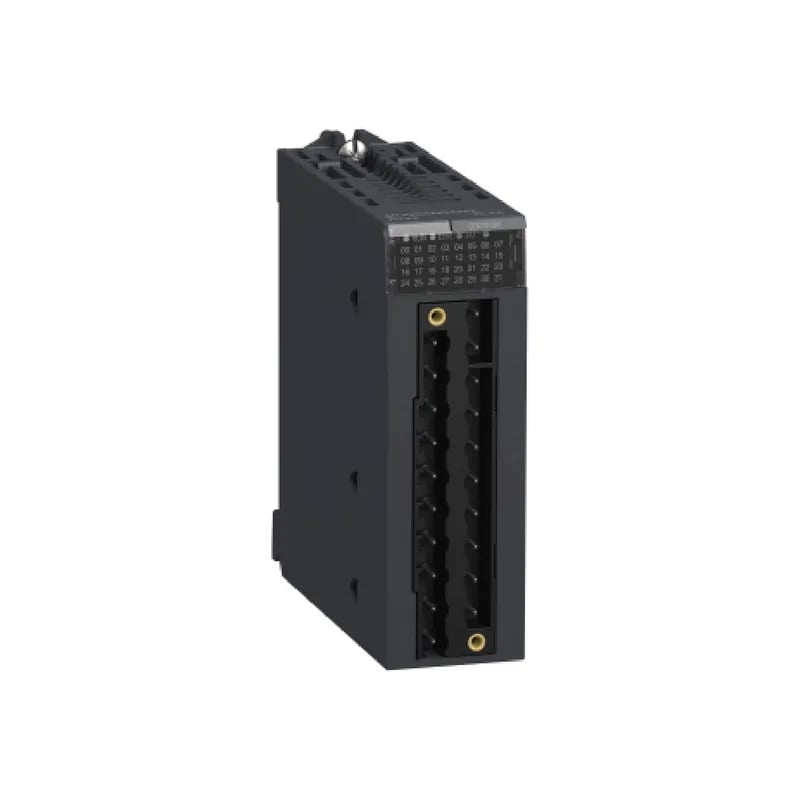

Schneider Electric BMXDDO1612H

Schneider BMXDDO1612H Modicon X80 16DO 24VDC 0.5A

MPNBMXDDO1612H
Active

Modicon X80 16-channel digital output module, 24 V DC, 0.5 A per channel, negative logic, conformal coated.

$583.00 – $830.00Ref. price · indicative, final on quote
Schneider Electric BMXDDO1612H datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXDDO1612H key specifications
ParameterValue
Protection typereverse polarity protection External short-circuit protection overload protection overvoltage protection
Range of productModicon X80
Discrete output typeSolid state
Product or component typeDiscrete output module
Maximum voltage drop10 MOhm 500 V DC
Discrete output voltage24 V 19...30 V DC
Voltage detection threshold< 14 V DC preactuator fault > 18 V DC preactuator at state 0
Current per channel0.625 A
Discrete output current0.5 A
Maximum leakage current0.5 mA at state 0
Maximum current per module10 A
Typical current consumption79 mA at 3.3 V DC

All specifications

BMXDDO1612H additional specifications
ParameterValue
Output short-circuit protectionWith 2 A external fuse
Power dissipation in2.26 W
Switching frequency0.5/LI² Hz
IP degree of protectionIP20
Response time on output1.2 ms
Shock resistance30 gn
Relative humidity5...95 % at 55 °C without condensation
Operating altitude0...2000 m 2000...5000 m with derating factor
Vibration resistance3 gn
MTBF reliability490000 H
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Status LED1 LED (green) module operating (RUN) 1 LED per channel (green) channel diagnostic 1 LED (red) module error (ERR) 1 LED (red) module I/O
Dielectric strength1500 V AC at 50/60 Hz 1 minute, output/ground 1500 V AC at 50/60 Hz 1 minute, output/internal logic
Load impedance ohmic>= 48 Ohm
Protective treatmentConformal coating
Discrete output logicNegative
Maximum tungsten load6 W
Discrete output number16
Paralleling of outputsYes : 3 maximum
Output overload protectionWith electronic circuit breaker 1.5 In < Id < 2 In With current limiter
Reverse polarity protectionReverse mounted diode
Environmental characteristicGas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2
Product specific applicationFor severe environments
Output overvoltage protectionWith transil diode
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation-25...70 °C

Product details

Lifecycle and environmental tolerance

The BMXDDO1612H: Production status is current, so no last-time-buy panic. The board gets conformal coating and carries ratings for gas (Gx, 3C4), dust (3S4), salt, mold, and fungal spore resistance — it's specced for severe environments. MTBF is 490,000 hours. That's the sort of reliability number that makes a storeroom manager comfortable stocking one spare for a critical line.

Installation and diagnostics

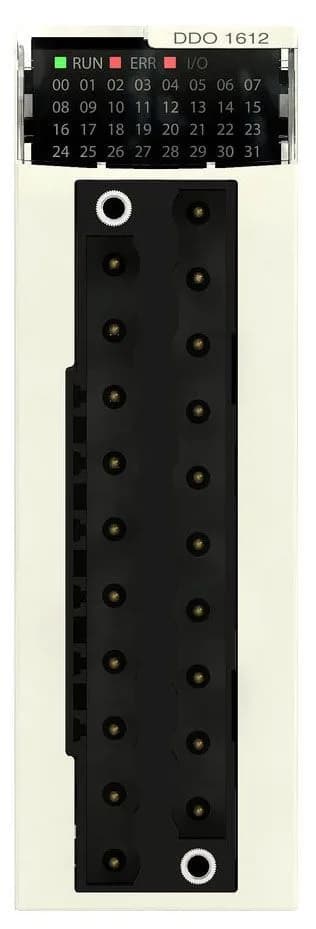

Mount in any Modicon X80 rack slot; the module draws 79 mA from the 3.3 V backplane. Status LEDs on the front panel give a quick read: one green RUN LED, one red ERR for module fault, plus a green LED per channel for diagnostic indication. Protection is solid — reverse polarity, short-circuit (requires a 2 A external fuse per output bank), overload (electronic circuit breaker set between 1.5 In and 2 In), and overvoltage via transil diode. Stick with a minimum load impedance of 48 ohms, and watch the switching frequency formula 0.5/LI² — essentially derate for inductive loads beyond the breakpoint.

Frequently asked questions

What directives does BMXDDO1612H comply with?

It meets 2014/35/EU Low Voltage Directive and 2014/30/EU EMC Directive.

What status LEDs does the BMXDDO1612H have?

One green RUN LED, one red ERR module fault LED, and one green LED per channel for diagnostic indication.
