Schneider Electric BMXDRA0805H

Schneider BMXDRA0805H Modicon X80 relay output module (discontinued)

MPNBMXDRA0805H
Obsolete

Schneider BMXDRA0805H Electrical Isolation Transformers — now discontinued, supplied from remaining surplus and broker stock.

$242.57 – $674.00Ref. price · indicative, final on quote
Schneider Electric BMXDRA0805H datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXDRA0805H key specifications
ParameterValue
Range of productModicon X80
Discrete output typeRelay
Product or component typeDiscrete output module
Discrete output voltage24...240 V 19...264 V AC 12...24 V 10...34 V DC
Minimum switching current10 mA 5 V DC
Typical current consumption79 mA at 3.3 V DC
Output short-circuit protectionUse 1 fast blow fuse per channel or group of channel
[Ith] conventional free air thermal current3 A
Power dissipation in2.7 W
IP degree of protectionIP20
Response time on output< 10 ms activation < 8 ms deactivation
Shock resistance30 gn

All specifications

BMXDRA0805H additional specifications
ParameterValue
Relative humidity5...95 % at 55 °C without condensation
Operating altitude0...2000 m 2000...5000 m with derating factor
Vibration resistance3 gn
MTBF reliability2119902 H
Electrical durabilityAC-15: 100000 cycles at 132 VA 200...240 V at 70 °C AC-15: 100000 cycles at 220 VA 200...240 V at -25...60 °C (load factor 0.35) AC-12: 1000000 cycles at 110 VA 110...120 V at -25...60 °C AC-12: 1000000 cycles at 132 VA 200...240 V at 70 °C AC-12: 1000000 cycles at 220 VA 200...240 V at -25...60 °C AC-12: 1000000 cycles at 30 VA 48 V at 70 °C AC-12: 1000000 cycles at 50 VA 48 V at -25...60 °C AC-12: 1000000 cycles at 66 VA 110...120 V at 70 °C AC-15: 1000000 cycles at 110 VA 200...240 V at -25...60 °C (load factor 0.35) AC-15: 1000000 cycles at 66 VA 200...240 V at 70 °C DC-12: 1000000 cycles at 14.4 W 24 V at 70 °C DC-12: 1000000 cycles at 24 W 24 V at -25...60 °C DC-13: 1000000 cycles at 14.4 W 24 V at 70 °C DC-13: 1000000 cycles at 24 W 24 V at -25...60 °C AC-15: 10000000 cycles at 10 VA 110...120 V at -25...60 °C (load factor 0.35) AC-15: 10000000 cycles at 10 VA 200...240 V at -25...60 °C (load factor 0.35) AC-15: 10000000 cycles at 6 VA 110...120 V at 70 °C (load factor 0.35) AC-15: 10000000 cycles at 6 VA 200...240 V at 70 °C AC-15: 150000 cycles at 110 VA 110...120 V at -25...60 °C (load factor 0.35) AC-15: 150000 cycles at 66 VA 110...120 V at 70 °C (load factor 0.35) AC-15: 1500000 cycles at 30 VA 110...120 V at 70 °C (load factor 0.35) AC-15: 1500000 cycles at 50 VA 110...120 V at -25...60 °C (load factor 0.35) AC-15: 2000000 cycles at 14.4 VA 48 V at 70 °C (load factor 0.35) AC-15: 2000000 cycles at 24 VA 48 V at -25...60 °C (load factor 0.35) DC-13: 2000000 cycles at 10 W 24 V at -25...60 °C DC-13: 2000000 cycles at 6 W 24 V at 70 °C DC-12: 300000 cycles at 24 W 24 V at 70 °C DC-12: 300000 cycles at 40 W 24 V at -25...60 °C AC-15: 3000000 cycles at 30 VA 200...240 V at 70 °C AC-15: 3000000 cycles at 50 VA 200...240 V at -25...60 °C (load factor 0.35) AC-12: 500000 cycles at 110 VA 48 V at -25...60 °C AC-12: 500000 cycles at 132 VA 110...120 V at 70 °C AC-12: 500000 cycles at 220 VA 110...120 V at -25...60 °C AC-12: 500000 cycles at 66 VA 48 V at 70 °C AC-15: 5000000 cycles at 10 VA 48 V at -25...60 °C (load factor 0.35) AC-15: 500000 cycles at 14.4 VA 24 V at 70 °C (load factor 0.35) AC-15: 500000 cycles at 24 VA 24 V at -25...60 °C (load factor 0.35) AC-15: 5000000 cycles at 6 VA 48 V at 70 °C (load factor 0.35) AC-12: 700000 cycles at 30 VA 24 V at 70 °C AC-12: 700000 cycles at 50 VA 24 V at -25...60 °C
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Status LED1 LED (green) module operating (RUN) 1 LED per channel (green) channel diagnostic 1 LED (red) module error (ERR) 1 LED (red) module I/O
Dielectric strength2000 V AC at 50/60 Hz 1 min
Protective treatmentConformal coating
Insulation resistance> 10 MOhm 500 V DC
Discrete output number8 conforming to EN/IEC 61131-2
Output overload protectionUse 1 fast blow fuse per channel or group of channel
Environmental characteristicGas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2
Product specific applicationFor severe environments
Output overvoltage protectionUse discharge diode on each output DC Use RC circuit on each output AC Use ZNO surge limiter on each output AC
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation-25...70 °C

Product details

Overview

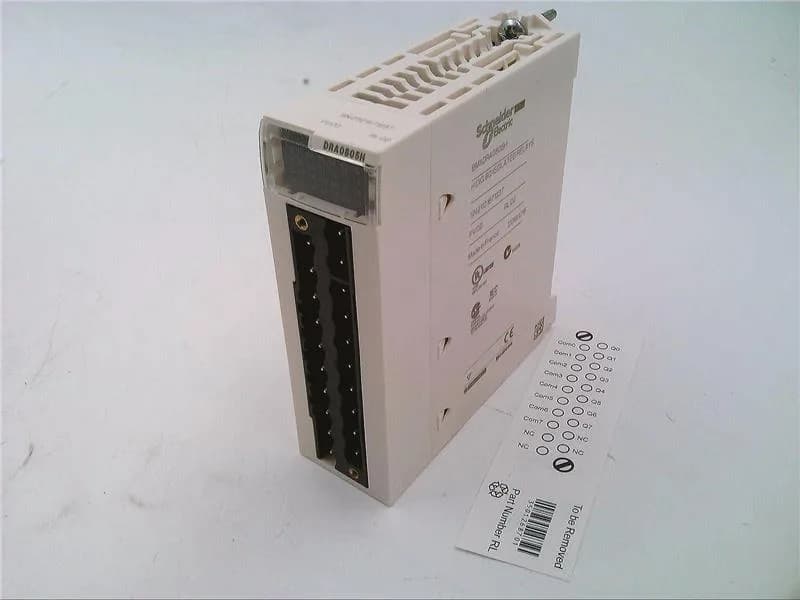

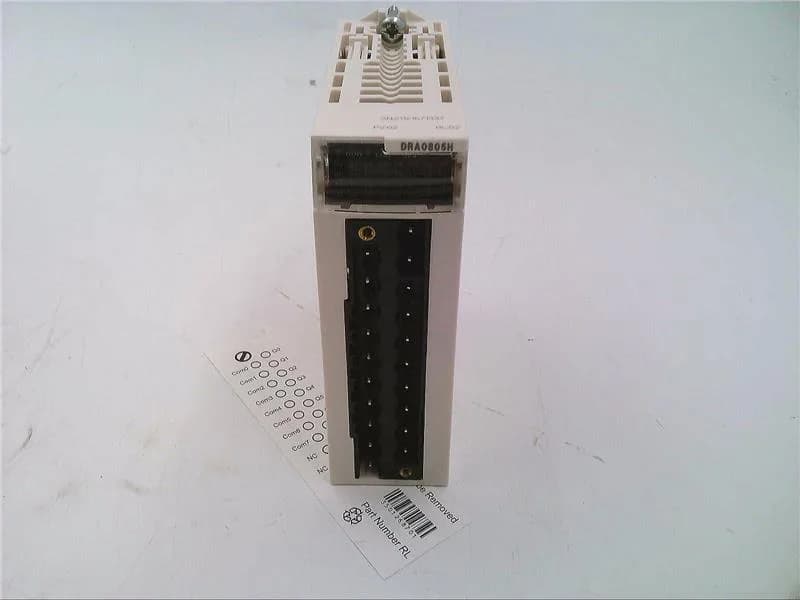

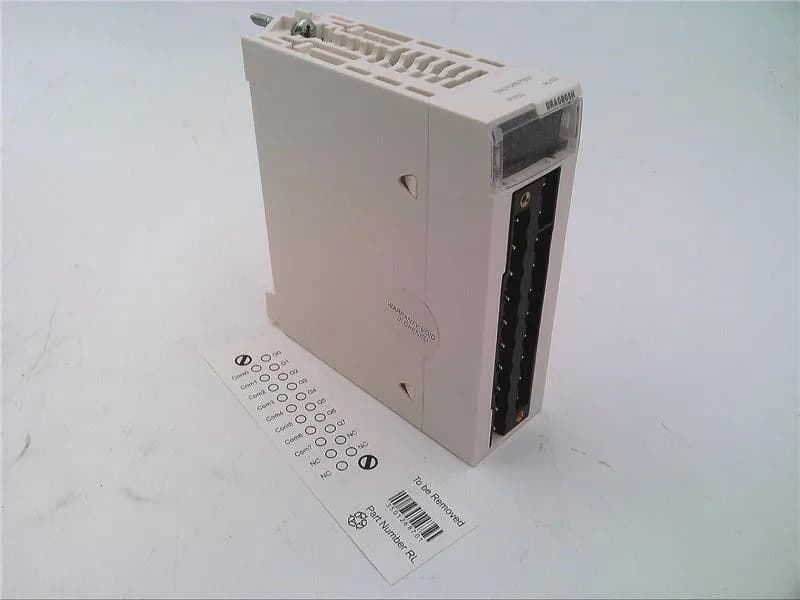

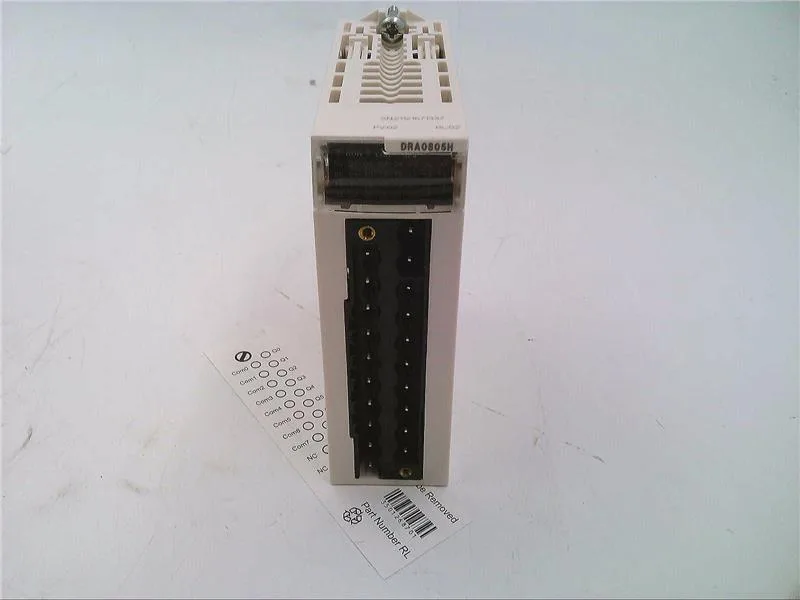

The BMXDRA0805H is a Modicon X80 discrete output module with 8 relay outputs, each rated for 3 A switching current across 24...240 V AC or 12...24 V DC, conforming to EN/IEC 61131-2. It carries a 30 gn shock rating, conformal coating, and IP20 protection, built for severe environments per its product application listing.

Compared to the BMXSRA0405, the BMXDRA0805H offers 8 relay outputs versus 4, but each channel switches 3 A instead of 5 A — the BMXSRA0405 carries higher per-channel current for fewer loads.

MPN
BMXDRA0805H
