Schneider Electric BMXDRA0815H

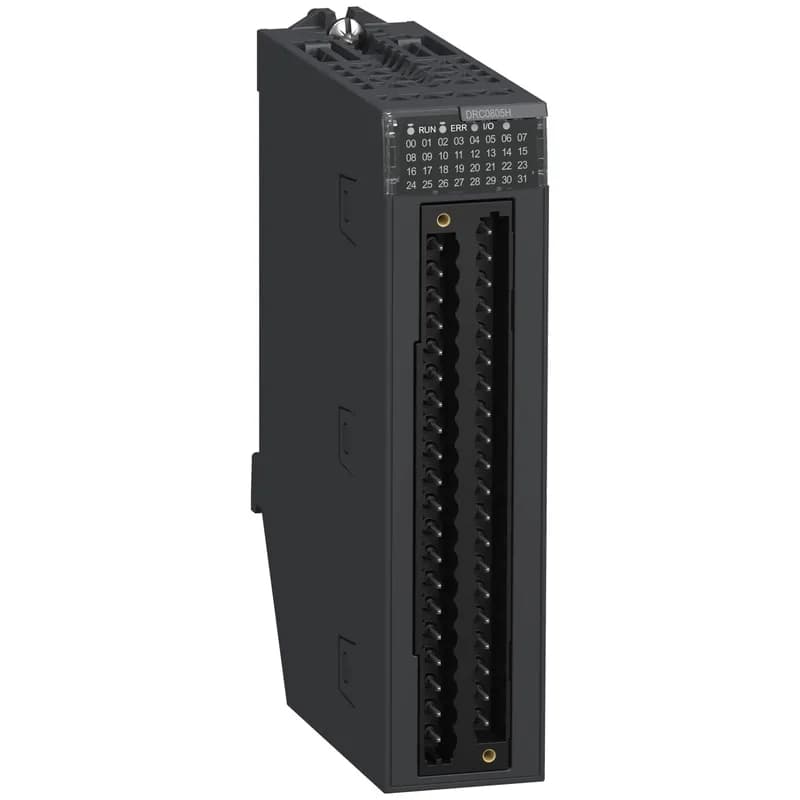

Schneider BMXDRA0815H Modicon X80 Relay Output Module, 8 Ch

MPNBMXDRA0815H
Active

Schneider Electric Modicon X80 BMXDRA0815H, relay discrete output module, 8 channels, 24…240 V AC / 24…125 V DC, conformal coating, for severe environments.

$407.67 – $815.00Ref. price · indicative, final on quote
Schneider Electric BMXDRA0815H datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXDRA0815H key specifications
ParameterValue
Protection typeExternal short-circuit protection External overload protection External overvoltage protection, inductive AC network External overvoltage protection, inductive DC network
Range of productModicon X80
Discrete output typeRelay
Product or component typeRelay discrete output module
Discrete output voltage24...240 V 19...264 V AC 24...125 V 5...150 V DC
Minimum switching current1 mA 5 V DC
Typical current consumption40 mA at 3.3 V DC 101 mA at 24 V DC
Output short-circuit protectionUse 1 fast blow fuse per channel or group of channel
[Ith] conventional free air thermal current3 A
Sensor power supply5...150 V 19...264 V
Power dissipation in3.6 W
Network frequency50/60 Hz

All specifications

BMXDRA0815H additional specifications
ParameterValue
Network frequency limits47...63 Hz
IP degree of protectionIP20
Electrical connection20 ways terminal block
Response time on output<= 13 ms deactivation
Shock resistance30 gn
Relative humidity5...95 % at 60 °C without condensation
Operating altitude0...2000 m 2000...5000 m with derating factor
Vibration resistance3 gn
MTBF reliability3200000 H
Electrical durabilityAC-12: 200000 cycles at 48 VA 24 V at -25...60 °C AC-12: 200000 cycles at 28.8 VA 24 V at 70 °C AC-12: 300000 cycles at 48 VA 48 V at -25...60 °C AC-12: 300000 cycles at 28.8 VA 48 V at 70 °C AC-12: 150000 cycles at 96 VA 48 V at -25...60 °C AC-12: 150000 cycles at 57.6 VA 48 V at 70 °C AC-12: 300000 cycles at 110 VA 100...120 V at -25...60 °C AC-12: 300000 cycles at 66 VA 100...120 V at 70 °C AC-12: 150000 cycles at 220 VA 100...120 V at -25...60 °C AC-12: 150000 cycles at 132 VA 100...120 V at 70 °C AC-12: 300000 cycles at 220 VA 200...250 V at -25...60 °C AC-12: 300000 cycles at 132 VA 200...250 V at 70 °C AC-12: 150000 cycles at 500 VA 200...250 V at -25...60 °C AC-12: 150000 cycles at 300 VA 200...250 V at 70 °C AC-15: 700000 cycles at 10 VA 24 V at -25...60 °C (load factor 0.4) AC-15: 700000 cycles at 6 VA 24 V at 70 °C (load factor 0.4) AC-15: 500000 cycles at 24 VA 24 V at -25...60 °C (load factor 0.4) AC-15: 500000 cycles at 14.4 VA 24 V at 70 °C (load factor 0.4) AC-15: 200000 cycles at 48 VA 24 V at -25...60 °C (load factor 0.4) AC-15: 200000 cycles at 28.8 VA 24 V at 70 °C (load factor 0.4) AC-15: 700000 cycles at 10 VA 48 V at -25...60 °C (load factor 0.4) AC-15: 700000 cycles at 6 VA 48 V at 70 °C (load factor 0.4) AC-15: 500000 cycles at 24 VA 48 V at -25...60 °C (load factor 0.4) AC-15: 500000 cycles at 14.4 VA 48 V at 70 °C (load factor 0.4) AC-15: 300000 cycles at 48 VA 48 V at -25...60 °C (load factor 0.4) AC-15: 300000 cycles at 28.8 VA 48 V at 70 °C (load factor 0.4) AC-15: 100000 cycles at 96 VA 48 V at -25...60 °C (load factor 0.4) AC-15: 100000 cycles at 57.6 VA 48 V at 70 °C (load factor 0.4) AC-15: 1000000 cycles at 10 VA 100...120 V at -25...60 °C (load factor 0.4) AC-15: 1000000 cycles at 6 VA 100...120 V at 70 °C (load factor 0.4) AC-15: 300000 cycles at 50 VA 100...120 V at -25...60 °C (load factor 0.4) AC-15: 300000 cycles at 30 VA 100...120 V at 70 °C (load factor 0.4) AC-15: 200000 cycles at 110 VA 100...120 V at -25...60 °C (load factor 0.4) AC-15: 200000 cycles at 66 VA 100...120 V at 70 °C (load factor 0.4) AC-15: 70000 cycles at 220 VA 100...120 V at -25...60 °C (load factor 0.4) AC-15: 70000 cycles at 132 VA 100...120 V at 70 °C (load factor 0.4) AC-15: 1000000 cycles at 10 VA 200...250 V at -25...60 °C (load factor 0.4) AC-15: 1000000 cycles at 6 VA 200...250 V at 70 °C (load factor 0.4) AC-15: 500000 cycles at 50 VA 200...250 V at -25...60 °C (load factor 0.4) AC-15: 500000 cycles at 30 VA 200...250 V at 70 °C (load factor 0.4) AC-15: 200000 cycles at 110 VA 200...250 V at -25...60 °C (load factor 0.4) AC-15: 200000 cycles at 66 VA 200...250 V at 70 °C (load factor 0.4) AC-15: 150000 cycles at 220 VA 200...250 V at -25...60 °C (load factor 0.4) AC-15: 150000 cycles at 132 VA 200...250 V at 70 °C (load factor 0.4) DC-12: 200000 cycles at 24 W 24 V at -25...60 °C DC-12: 200000 cycles at 14.4 W 24 V at 70 °C DC-12: 150000 cycles at 48 W 24 V at -25...60 °C DC-12: 150000 cycles at 28.8 W 24 V at 70 °C DC-12: 150000 cycles at 40 W 48...60 V at -25...60 °C DC-12: 150000 cycles at 24 W 48...60 V at 70 °C DC-12: 100000 cycles at 45 W 100...125 V at -25...60 °C DC-12: 60000 cycles at 45 W 100...125 V at 70 °C DC-13: 100000 cycles at 10 W 24 V at -25...60 °C DC-13: 100000 cycles at 6 W 24 V at 70 °C DC-13: 60000 cycles at 24 W 24 V at -25...60 °C DC-13: 60000 cycles at 14.4 W 24 V at 70 °C DC-13: 40000 cycles at 48 W 24 V at -25...60 °C DC-13: 40000 cycles at 28.8 W 24 V at 70 °C DC-13: 40000 cycles at 40 W 48...60 V at -25...60 °C DC-13: 40000 cycles at 24 W 48...60 V at 70 °C DC-13: 100000 cycles at 15 W 100...125 V at -25...60 °C DC-13: 40000 cycles at 15 W 100...125 V at 70 °C
Status LED1 LED (green) RUN 1 LED per channel (green) channel diagnostic 1 LED (red) ERR 1 LED (red) I/O
Dielectric strength1780 V AC at 50/60 Hz 1 min
Protective treatmentConformal coating
Discrete output logicPositive
Insulation resistance> 10 MOhm 500 V DC
Discrete output number8 conforming to IEC 61131-2
Output overload protectionUse 1 fast blow fuse per channel or group of channel
Environmental characteristicGas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2
Product specific applicationFor severe environments
Output overvoltage protectionUse discharge diode on each output DC Use RC circuit on each output AC Use ZNO surge limiter on each output AC
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation-25...70 °C

Product details

The BMXDRA0815H is an 8-channel relay output module in the Modicon X80 family, built for severe environments with conformal coating and gas/dust/salt ingress protection. Conventional free air thermal current is 3 A per contact. The electrical durability table is the real lifetime guide: at 200…250 V AC, AC-15 load with a 0.4 load factor gives 1,000,000 cycles at 10 VA but only 150,000 cycles at 220 VA. Sizing the switched load within those curves avoids premature contact wear.

Severe environment and mounting

IP20-rated housing, 20-way terminal block. Conformal coating combined with gas class Gx, 3C4, dust class 3S4, salt level 2, and fungal resistance makes it suitable for damp, corrosive, or dusty panel environments. Operating temperature spans -25…70 °C. Vibration 3 gn, shock 30 gn — fits most industrial machinery panels without additional dampening.

Frequently asked questions

What are the status LEDs on this module?

One green RUN LED, one red ERR LED, and one green channel diagnostic LED per output.

What protection features does the BMXDRA0815H provide?

External short-circuit, overload, and overvoltage protection (both inductive AC and DC networks) are listed; fusing per channel is required for short-circuit and overload.
