Schneider Electric BMXDRC0805

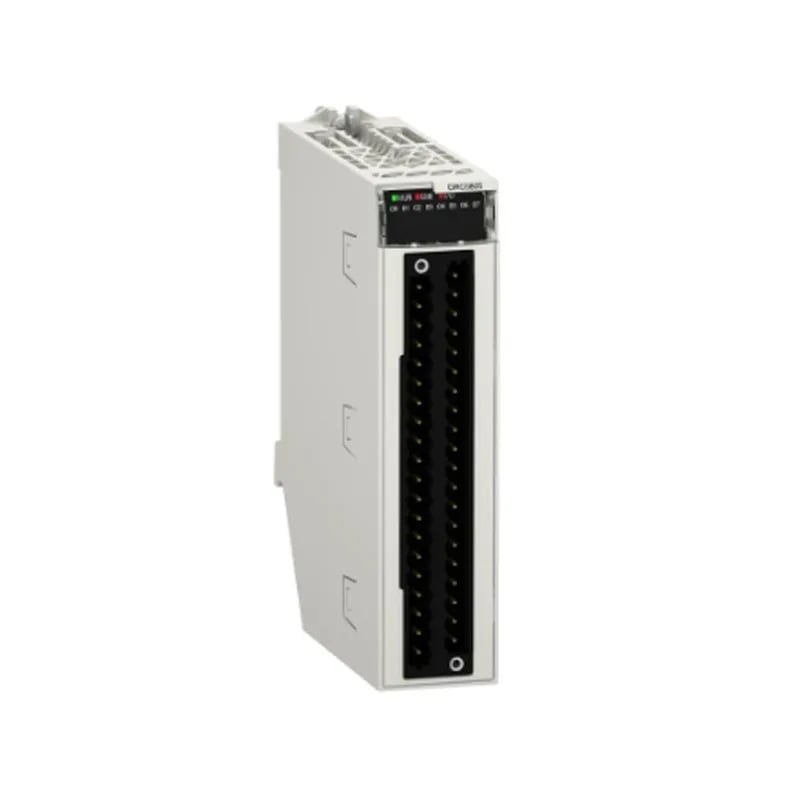

Schneider BMXDRC0805 Modicon X80 8 Relay Output Module

MPNBMXDRC0805
Active

Schneider Electric Modicon X80 relay discrete output module, BMXDRC0805, 8 outputs, 5...150 V DC / 24...240 V AC, active production.

$204.47Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXDRC0805 key specifications
ParameterValue
Protection typeExternal short-circuit protection External overload protection External overvoltage protection, inductive AC network External overvoltage protection, inductive DC network
Range of productModicon X80
Product or component typeRelay discrete output module
Discrete output voltage5...125 V 5...150 V DC 24...240 V 19...264 V AC
Minimum switching current10 mA 5 V DC
Typical current consumption40 mA at 3.3 V DC 101 mA at 24 V DC
Output short-circuit protectionUse 1 fast blow fuse per channel or group of channel
[Ith] conventional free air thermal current4 A 40 °C 3 A 50 °C 2 A 60 °C
Sensor power supply5...150 V 19...264 V
Power dissipation in3.6 W
Network frequency50/60 Hz
Network frequency limits47...63 Hz

All specifications

BMXDRC0805 additional specifications
ParameterValue
IP degree of protectionIP20
Electrical connection40 ways terminal block
Response time on output<= 13 ms deactivation
Shock resistance30 gn
Relative humidity5...95 % at 0...60 °C without condensation
Operating altitude0...2000 m 2000...5000 m with derating factor
Vibration resistance3 gn
MTBF reliability2650000 H
Electrical durabilityAC-12: 200000 cycles at 48 VA 24 V at 0...60 °C AC-12: 300000 cycles at 48 VA 48 V at 0...60 °C AC-12: 150000 cycles at 96 VA 48 V at 0...60 °C AC-12: 300000 cycles at 110 VA 100...120 V at 0...60 °C AC-12: 150000 cycles at 220 VA 100...120 V at 0...60 °C AC-12: 300000 cycles at 220 VA 200...250 V at 0...60 °C AC-12: 150000 cycles at 500 VA 200...250 V at 0...60 °C AC-15: 700000 cycles at 10 VA 24 V at 0...60 °C (load factor 0.4) AC-15: 500000 cycles at 24 VA 24 V at 0...60 °C (load factor 0.4) AC-15: 200000 cycles at 48 VA 24 V at 0...60 °C (load factor 0.4) AC-15: 700000 cycles at 10 VA 48 V at 0...60 °C (load factor 0.4) AC-15: 500000 cycles at 24 VA 48 V at 0...60 °C (load factor 0.4) AC-15: 300000 cycles at 48 VA 48 V at 0...60 °C (load factor 0.4) AC-15: 100000 cycles at 96 VA 48 V at 0...60 °C (load factor 0.4) AC-15: 1000000 cycles at 10 VA 100...120 V at 0...60 °C (load factor 0.4) AC-15: 300000 cycles at 50 VA 100...120 V at 0...60 °C (load factor 0.4) AC-15: 200000 cycles at 110 VA 100...120 V at 0...60 °C (load factor 0.4) AC-15: 70000 cycles at 220 VA 100...120 V at 0...60 °C (load factor 0.4) AC-15: 1000000 cycles at 10 VA 200...250 V at 0...60 °C (load factor 0.4) AC-15: 500000 cycles at 50 VA 200...250 V at 0...60 °C (load factor 0.4) AC-15: 200000 cycles at 110 VA 200...250 V at 0...60 °C (load factor 0.4) AC-15: 150000 cycles at 220 VA 200...250 V at 0...60 °C (load factor 0.4) DC-12: 200000 cycles at 24 W 24 V at 0...60 °C DC-12: 150000 cycles at 48 W 24 V at 0...60 °C DC-12: 150000 cycles at 40 W 48...60 V at 0...60 °C DC-12: 100000 cycles at 45 W 100...125 V at 0...60 °C DC-13: 100000 cycles at 10 W 24 V at 0...60 °C DC-13: 60000 cycles at 24 W 24 V at 0...60 °C DC-13: 40000 cycles at 48 W 24 V at 0...60 °C DC-13: 40000 cycles at 40 W 48...60 V at 0...60 °C DC-13: 100000 cycles at 15 W 100...125 V at 0...60 °C
Status LED1 LED (green) RUN 1 LED per channel (green) channel diagnostic 1 LED (red) ERR 1 LED (red) I/O
Dielectric strength1780 V AC at 50/60 Hz 1 min
Protective treatmentStandard version
Discrete output logicPositive or negative
Insulation resistance> 10 MOhm 500 V DC
Discrete output number8 conforming to IEC 61131-2
Output overload protectionUse 1 fast blow fuse per channel or group of channel
Output overvoltage protectionUse discharge diode on each output DC Use RC circuit on each output AC Use ZNO surge limiter on each output AC
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation-25...70 °C

Product details

The BMXDRC0805 is a Modicon X80 relay output module from Schneider Electric with eight discrete outputs conforming to IEC 61131-2. It covers both AC and DC loads across 5...150 V DC and 24...240 V AC, making it a single SKU for mixed-voltage cabinets in an X80 rack. Thermal rating is 4 A at 40 °C, derated to 3 A at 50 °C and 2 A at 60 °C — factor that into slot loading if the rack runs warm. The module draws 101 mA at 24 V DC and dissipates 3.6 W. Protection is external: each output needs a fast-blow fuse for short-circuit and overload. For inductive DC loads, add a flyback diode per channel; for AC, an RC snubber or ZNO varistor. The module has no internal suppression, so a missing snubber will kill the relay contacts early. Deactivation time is 13 ms — that's the interval from coil drop to contact open. Not for fast-switching inductive loads where arcing time matters; but fine for general on/off of solenoids, contactors, and lamps.

Electrical durability and sourcing

Lifecycle stage is current and product status is Active. The BOM line is stable. Electrical durability varies widely with load. For AC-15 control circuits, expect 1,000,000 cycles at 10 VA / 100...120 V, but only 150,000 cycles at 220 VA. On DC-13 at 24 V, 100,000 cycles at 10 W, dropping to 40,000 cycles at 48 W. Match the duty class in the durability table to your actual load VA for realistic life planning.

Frequently asked questions

What status LEDs does the BMXDRC0805 have?

One green RUN LED, one green LED per channel for channel diagnostics, one red ERR LED, and one red I/O LED.

What protection type does the BMXDRC0805 require?

Protection is external: each output must be fused (fast-blow) for short-circuit and overload. For inductive DC loads, a discharge diode per output is required; for inductive AC loads, an RC snubber or ZNO surge limiter per output is required.
